Crestron UC-SB-P50-AM-WF KIT AirMedia Series 3 Conferencing System

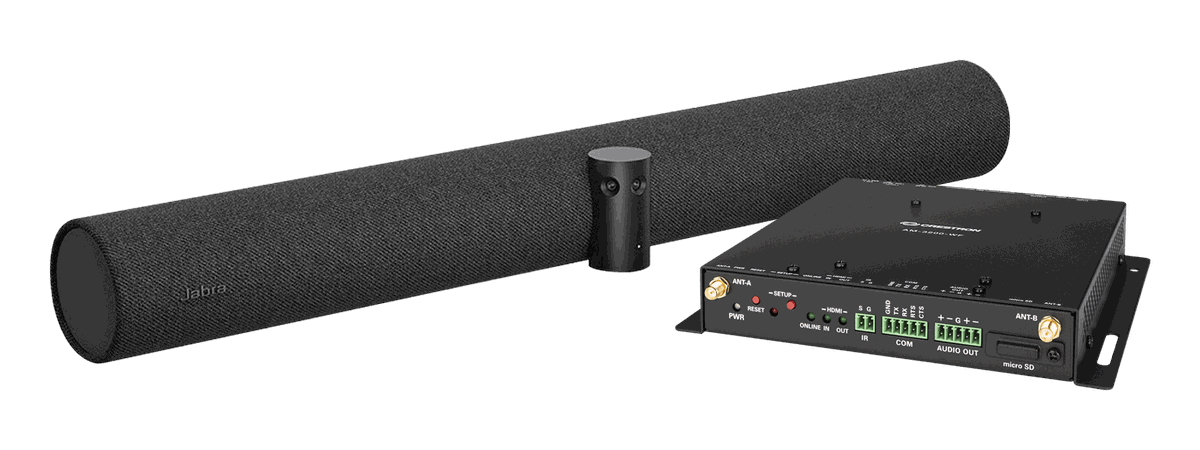

This kit is the AirMedia Series 3 conferencing system as a single order: an AM-3200-WF AirMedia receiver with Wi-Fi network connectivity paired with a Jabra PanaCast 50 intelligent video bar. It suits conference rooms, huddle rooms, lounges, and lobbies where people arrive with their own laptops and expect to share and conference without a cable hunt.
The PanaCast 50 supplies the room's eyes and ears: three cameras giving a 180 degree horizontal 3840 x 1080 view at 30 fps with automatic framing out to 11 ft, four speakers in stereo across 80 Hz to 20 kHz, and an eight-microphone beamforming array for rooms up to 15 x 15 ft. The bar wall mounts on its integrated bracket and runs from an external power pack; table and VESA screen mounts are sold separately.
| Components | AM-3200-WF AirMedia Receiver 3100 with Wi-Fi, and UC-SB-P50 Jabra PanaCast 50 video bar |
|---|---|
| Cameras | (3) cameras, 13 megapixels, 3840 x 1080 at 30 fps |
| Field of View | 180 degrees horizontal, 54 degrees vertical |
| Autozoom | Automatic digital zoom frames people within 11 ft (3.5 m) |
| Speakers | (4) speakers, stereo, (2) 2 in. woofers and (2) 2 x 3/4 in. tweeters, 80 Hz to 20 kHz |
| Microphones | (8) microphone beamforming array, -37 dBFS, rooms up to 15 x 15 ft (4.5 x 4.5 m) |
| Power | External power pack, 100-240 VAC 50/60 Hz in, 5 A at 12 V out |
| Video Bar Dimensions | 3.1 in. H x 25.6 in. W x 4.9 in. D (90 x 650 x 125 mm), 4.85 lb (2.2 kg) |
