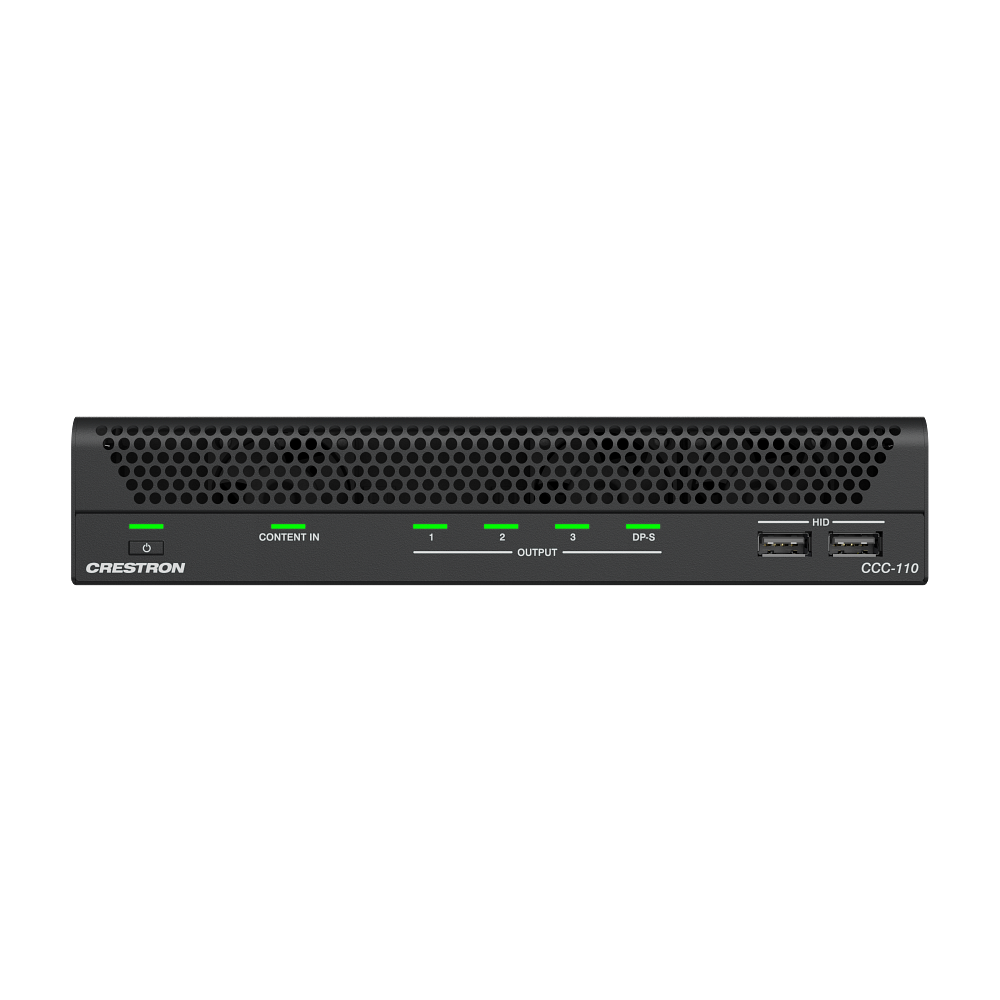

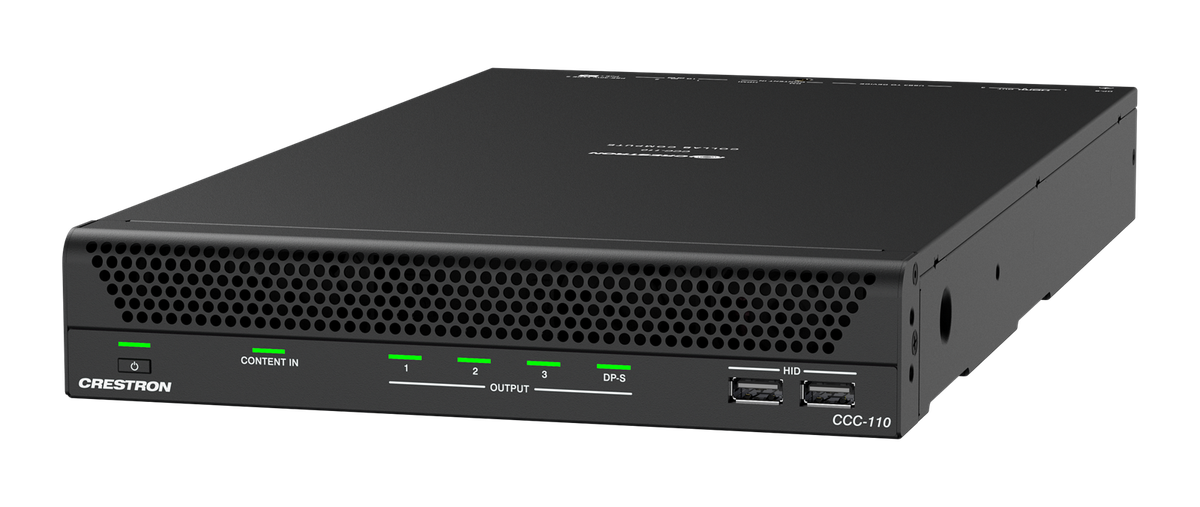

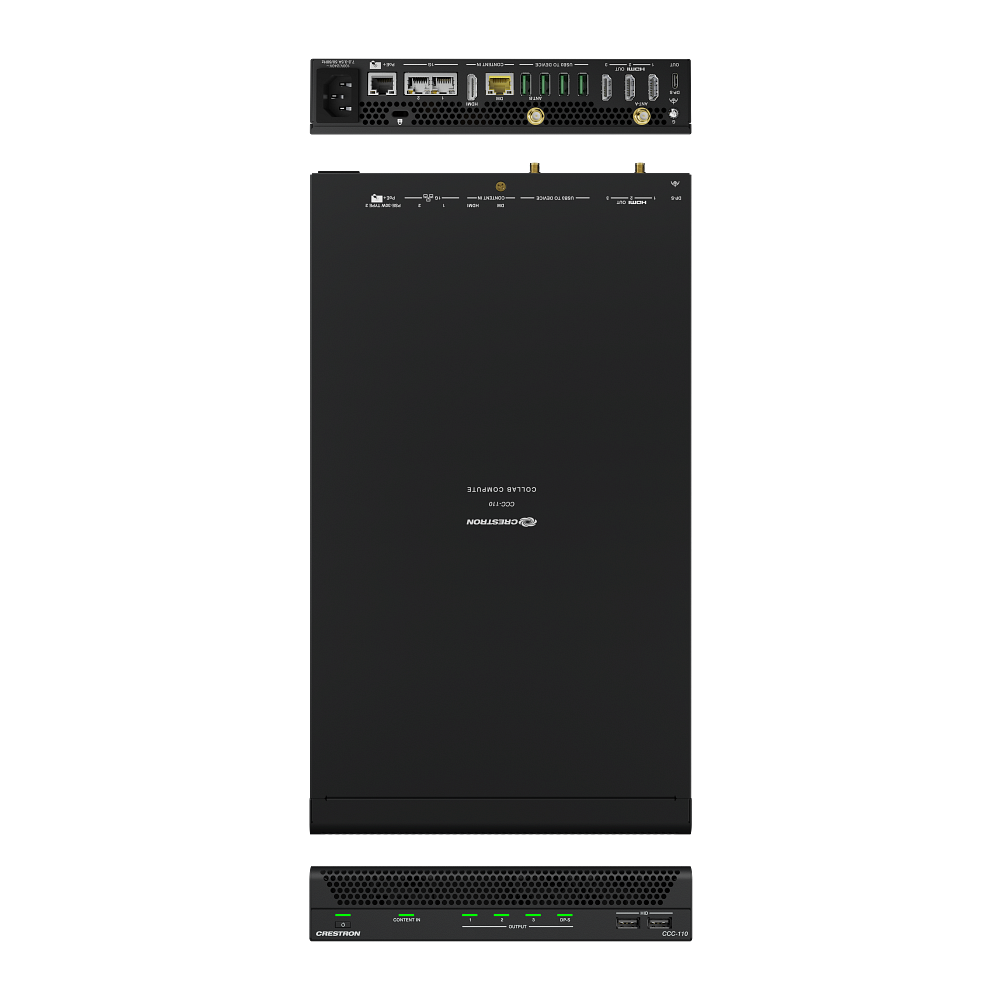

Crestron CCC-110 Collab Compute, Intel Core Ultra 5

Collab Compute is the box a meeting room is built around. The CCC-110 runs an Intel Core Ultra 5 125H with 32 GB of dual-channel DDR5 and a 256 GB drive under Windows 11 Enterprise IoT, which is enough headroom for the AI framing and real-time meeting features the conferencing platforms now lean on. Order it as the CCC-110-T for native Microsoft Teams Rooms or the CCC-110-Z for native Zoom Rooms; the Teams model drives one or two displays, the Zoom model up to three.

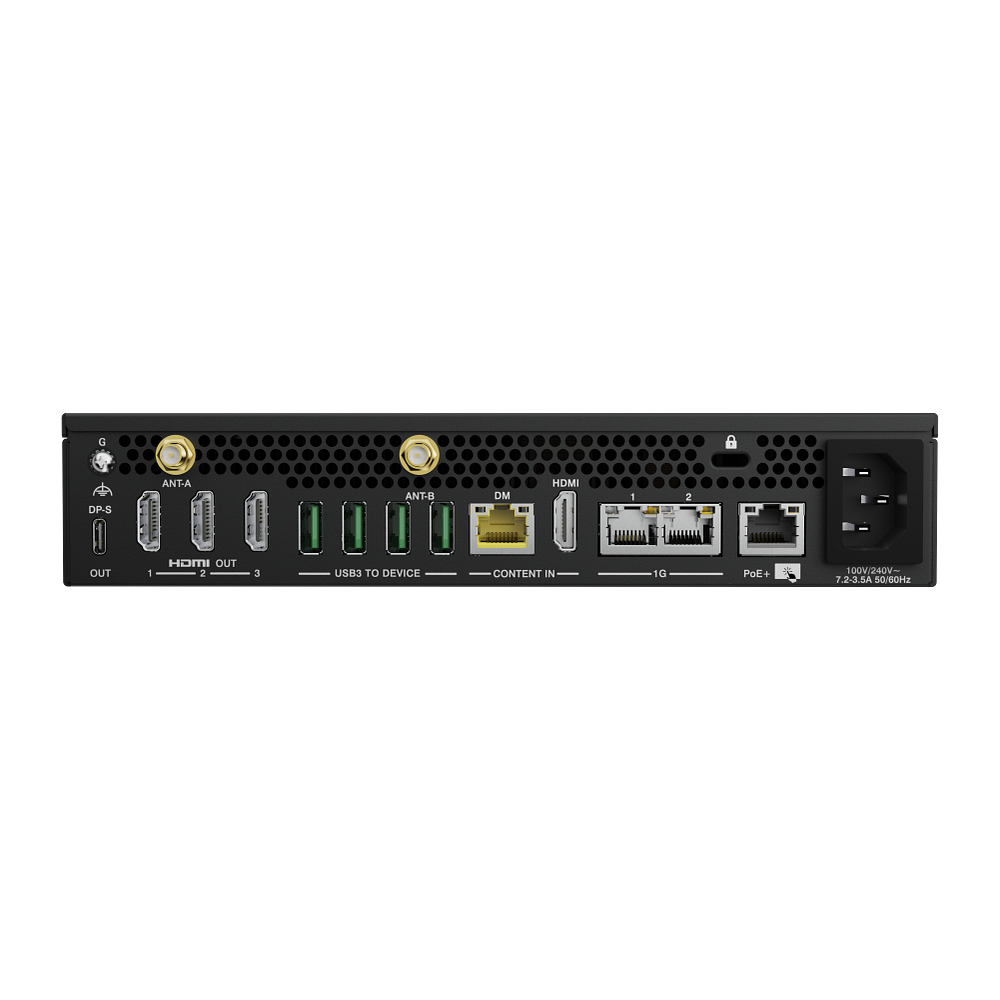

Four USB audio and video devices connect at once, so a Crestron Intelligent Video camera and an Intelligent Audio array can be mixed into one room rather than bought as a fixed bundle. Three TS(W)-1080-UC touch screens can be attached for the native platform UI, and three HDMI 2.0b outputs plus a rear USB Type-C with DisplayPort alt mode cover the displays. A separate HDMI input takes a laptop directly for BYOD presentation, and adding the CCC-BYOD-KIT lets a guest laptop take over the room's camera and audio on its own meeting platform. Networking is three Intel gigabit ports plus Wi-Fi 7 and Bluetooth 5.4, and the whole estate is managed from XiO Cloud. Displays, touch screens and the CCCA-CMK-110/120 mounting bracket are sold separately.

ProcessorIntel Core Ultra 5 125H
RAM32 GB Dual Channel DDR5 SODIMM
Storage256 GB
GraphicsIntel ARC
Operating SystemWindows 11 Enterprise IoT Edition OS
Network(1) Intel I219-LM 100/1000 Mbps Ethernet; (2) Intel I210 100/1000 Mbps Ethernet
WirelessIntel BE200 Wi-Fi 7 2x2 MIMO; Bluetooth 5.4
HDMI Out(3) HDMI 2.0b connectors, female
USB Type-C (Rear)(1) USB Type-C 3.2 Gen 2 (5V/3A), female; DisplayPort single stream video and USB 3
