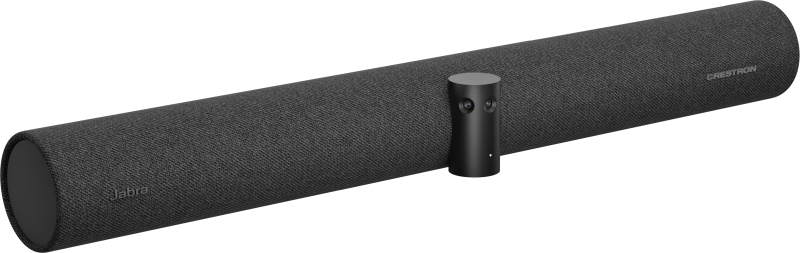

Crestron UC-SB-P50 Jabra PanaCast 50 Intelligent Video Bar
The Jabra PanaCast 50 for Crestron Flex systems is a front-of-room bar that covers the camera, the microphones, and the speakers in one enclosure. Three 13 megapixel cameras are stitched into a seamless 180 degree horizontal field of view at 3840 x 1080 and 30 fps, with 6x lossless digital zoom that reframes automatically as people move.
Audio is a genuine stereo system rather than a token speaker: two 2 in. woofers and two 2 x 3/4 in. tweeters covering 80 Hz to 20 kHz, and an eight-microphone beamforming array rated for rooms up to 15 x 15 ft with -37 dBFS sensitivity across 100 Hz to 8 kHz. It connects to the conferencing system over USB-C, runs from an external power pack, and mounts on the wall with the integrated bracket or on a table or VESA screen mount, both sold separately.
| Cameras | (3) cameras, 13 megapixels, 3840 x 1080 at 30 fps |
|---|---|
| Field of View | 180 degrees horizontal, 54 degrees vertical |
| Zoom | 6x lossless digital zoom with automatic framing |
| Speakers | (2) 2 in. (50 mm) woofers and (2) 2 x 3/4 in. tweeters, 80 Hz to 20 kHz |
| Microphones | (8) microphone beamforming array, -37 dBFS, 100 Hz to 8 kHz, rooms up to 15 x 15 ft (4.5 x 4.5 m) |
| Connectors | USB-C to conferencing system, 3.5 mm AUX, RJ-45, AC power |
| Power | External power pack, 100-240 VAC 50/60 Hz in, 5 A at 12 V out |
| Dimensions | 3.1 in. H x 25.60 in. W x 4.90 in. D (90 x 650 x 125 mm), 4.85 lb (2.2 kg) |
