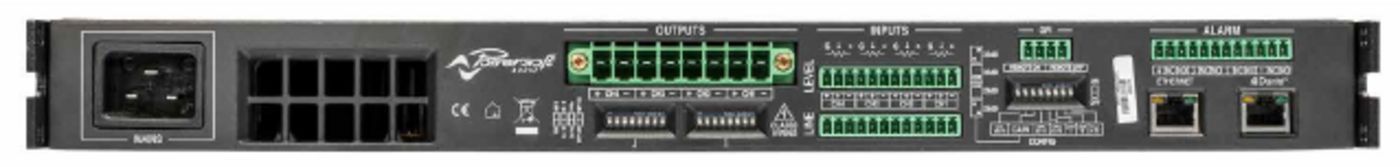

Community ALC-1604D 4-Channel 1600W Amplified Loudspeaker Controller

The Community ALC-1604D is a 4-Channel 1600W amplified loudspeaker controller. Frequency response is 20 Hz - 20 kHz +/-0.5 dB, 1 W @ 8 ohms. Community positions it for large venue work.

Channels: Output: 4 Hi-Z or Lo-Z (bridgeable per ch. pair); Input: Analog - 4; Dante - 4. Operating power: Operating Voltage: 60-264 V (with reduced power below 90 V). Certifications: Standards Compliance: Auto-sensing Fast Ethernet (IEEE 802.3u, 100 Mbit/s); Supported Topologies: Star Remote Interface: ArmonaPlus System Manager. Weight: 17.3 lbs (7.8 kg); Shippiing weight: 26 lbs (11.8 kg).

Dimensions (H x W x D)	1.75 inches (44 mm) x 17.4 inches (442 mm) x 14.7 inches (373 mm)
Frequency Response	20 Hz - 20 kHz +/-0.5 dB, 1 W @ 8 ohms
Impedance	20 k ohms balanced
Maximum Input	20 dBu
Crossover	Linear phase (FIR), Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR)
Channels	Output: 4 Hi-Z or Lo-Z (bridgeable per ch. pair); Input: Analog - 4; Dante - 4
Input Type	Input Sensor: @8 ohms, Gain 26 dB, 4.91 V rms; Input Sensor: @8 ohms, Gain 29 dB, 3.48 V rms; Input Sensor: @8 ohms, Gain 32 dB, 2.46 V rms; Input Sensor: @8 ohms, Gain 35 dB, 1.74 V rms
Operating Power	Operating Voltage: 60-264 V (with reduced power below 90 V)
