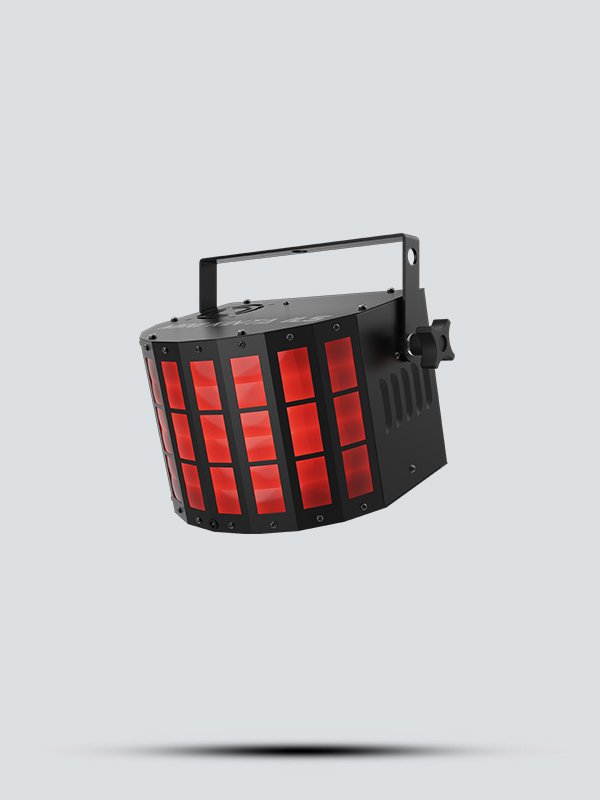

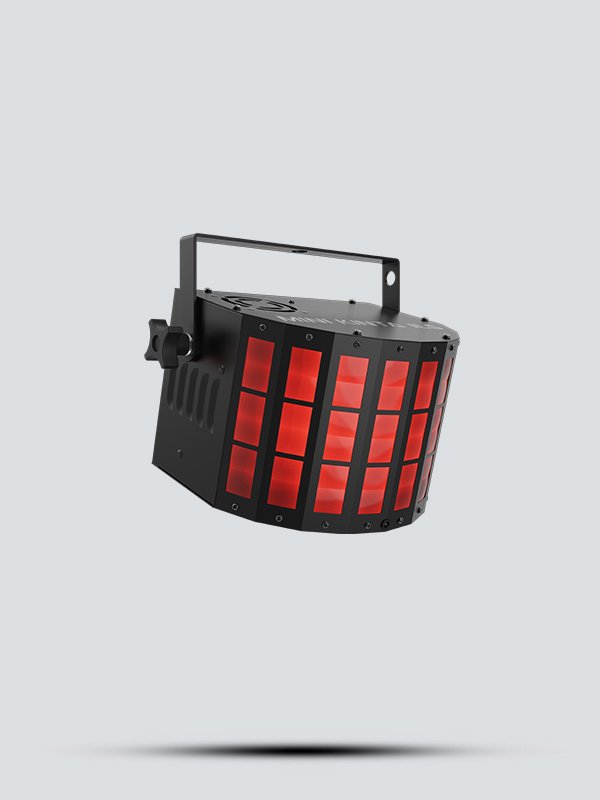

Chauvet DJ Mini Kinta ILS 3.6-Pound Beam Effect
The Mini Kinta ILS is the cheapest way to fill a room with moving beams. Four high-power LEDs - one red, one green, one blue, one white, 3W each - fire through 48 lenses that scatter beams across a 135-degree coverage angle, so a single unit covers a small dance floor and a pair covers a hall. It weighs 3.6 lb and measures 7.5 x 10.1 x 7.2 inches.

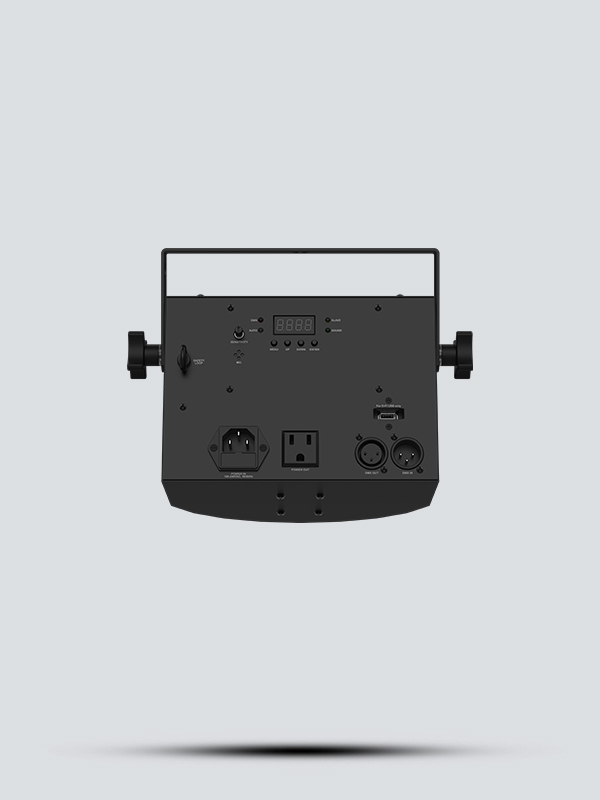

It runs from DMX at 4 or 8 channels over 3-pin XLR, from built-in automated and sound-activated programs in master/slave, or from the optional IRC-6 handheld with no console at all. ILS compatibility lets it follow a GigBAR or another ILS fixture, and a D-Fi USB dongle takes control wireless. Current draw is the headline number for mobile work: 19W means thirty-three units on one 120V circuit.
| Light Source | 4 LEDs (1 red, 1 green, 1 blue, 1 white) 3W each, 50,000-hour life |
|---|---|
| Optics | 48 lenses |
| Coverage Angle | 135° |
| DMX Channels | 4 or 8; 3-pin XLR |
| Control | DMX, ILS, master/slave, sound-active, optional IRC-6, D-Fi USB ready |
| Power | 19W, 0.3A @ 120V; power-links 33 units @ 120V |
| Size | 7.5 x 10.1 x 7.2 in (190 x 258 x 182 mm) |
| Weight | 3.6 lb (1.7 kg) |
