CAD Audio CAD Astatic PX5002 500W x 2-Channel Power Amplifier

The PX5002 is a Class D two-channel power amplifier that switches between stereo, mono parallel and bridge modes, so one box covers a two-zone paging install or a single higher-power run depending on the day's needs. In bridge mode at 4 ohms it delivers 1000W to a single load; run stereo, it puts out 300W per channel at 8 ohms or 500W at 4 ohms.

Balanced XLR inputs and loop outputs make daisy-chaining multiple amps straightforward, and Speakon speaker outputs keep connections locked in for permanent installs. A peak limiter protects loudspeakers from clipping damage, and a switchable 75 Hz low-cut filter keeps subsonic content out of paging horns and ceiling speakers.

Type	Class D, 2-channel power amplifier
Power (Stereo, 8 ohm)	2 x 300W
Power (Stereo, 4 ohm)	2 x 500W
Power (Bridge, 4 ohm)	1 x 1000W
Frequency Response	20 Hz - 20 kHz (+/-1 dB)

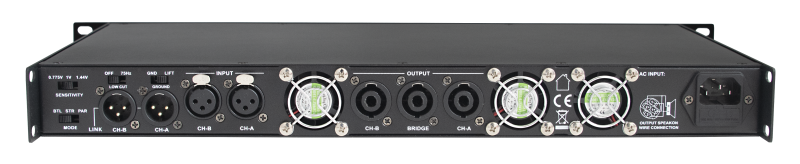

Inputs/Outputs	Balanced XLR in, XLR loop out, Speakon speaker out
Protection	Peak limiter, switchable 75 Hz low-cut filter
