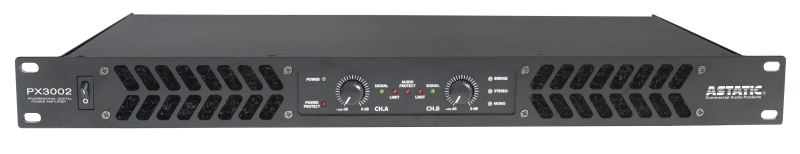

CAD Audio CAD Astatic PX3002 300W x 2-Channel Power Amplifier

The PX3002 is the smaller sibling to CAD's PX5002, a Class D two-channel amplifier in a 1U rack chassis built for zones that don't need the larger unit's full power. It still offers stereo, mono parallel and bridge operating modes, so it flexes between two paging zones or one higher-power run.

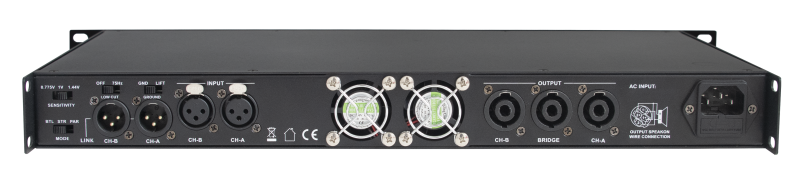

Variable-speed, temperature-controlled cooling fans keep noise down in occupied spaces, an important detail for an amp that might live in a closet near a conference room rather than a dedicated equipment rack. Balanced XLR I/O and Speakon speaker outputs match the rest of CAD's PX line.

TypeClass D, 2-channel power amplifier
Power (Stereo, 8 ohm)2 x 150W
Power (Stereo, 4 ohm)2 x 300W
Power (Bridge, 4 ohm)1 x 600W
Frequency Response20 Hz - 20 kHz (+/-1 dB)
CoolingVariable-speed, temperature-controlled fans
Dimensions483 x 240 x 44.5 mm (1U rackmount)
Weight3.8 kg
