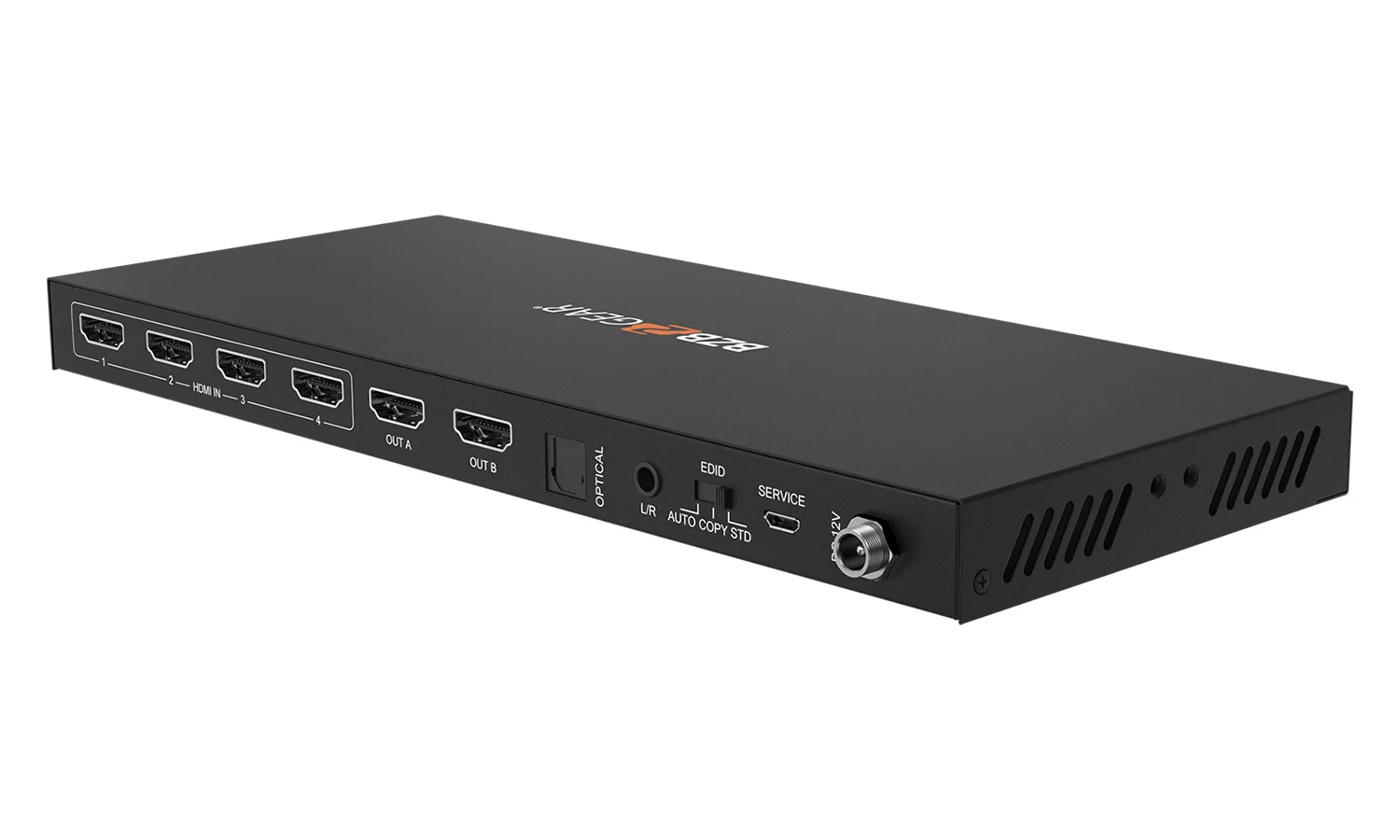

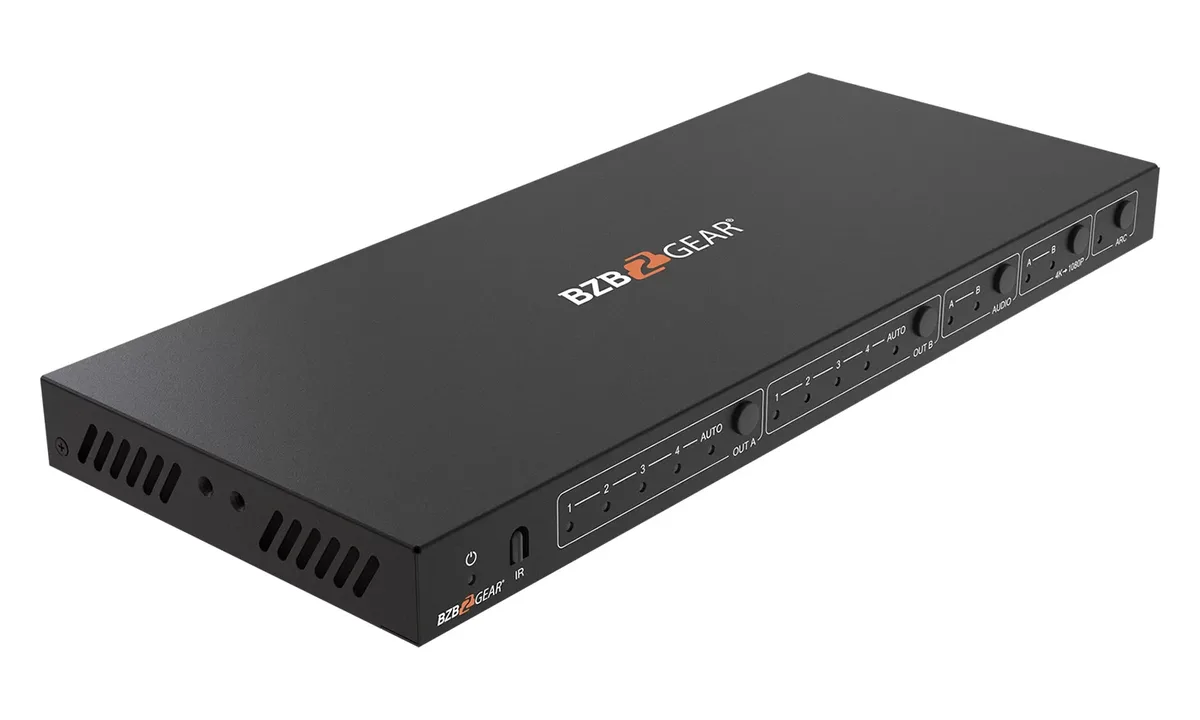

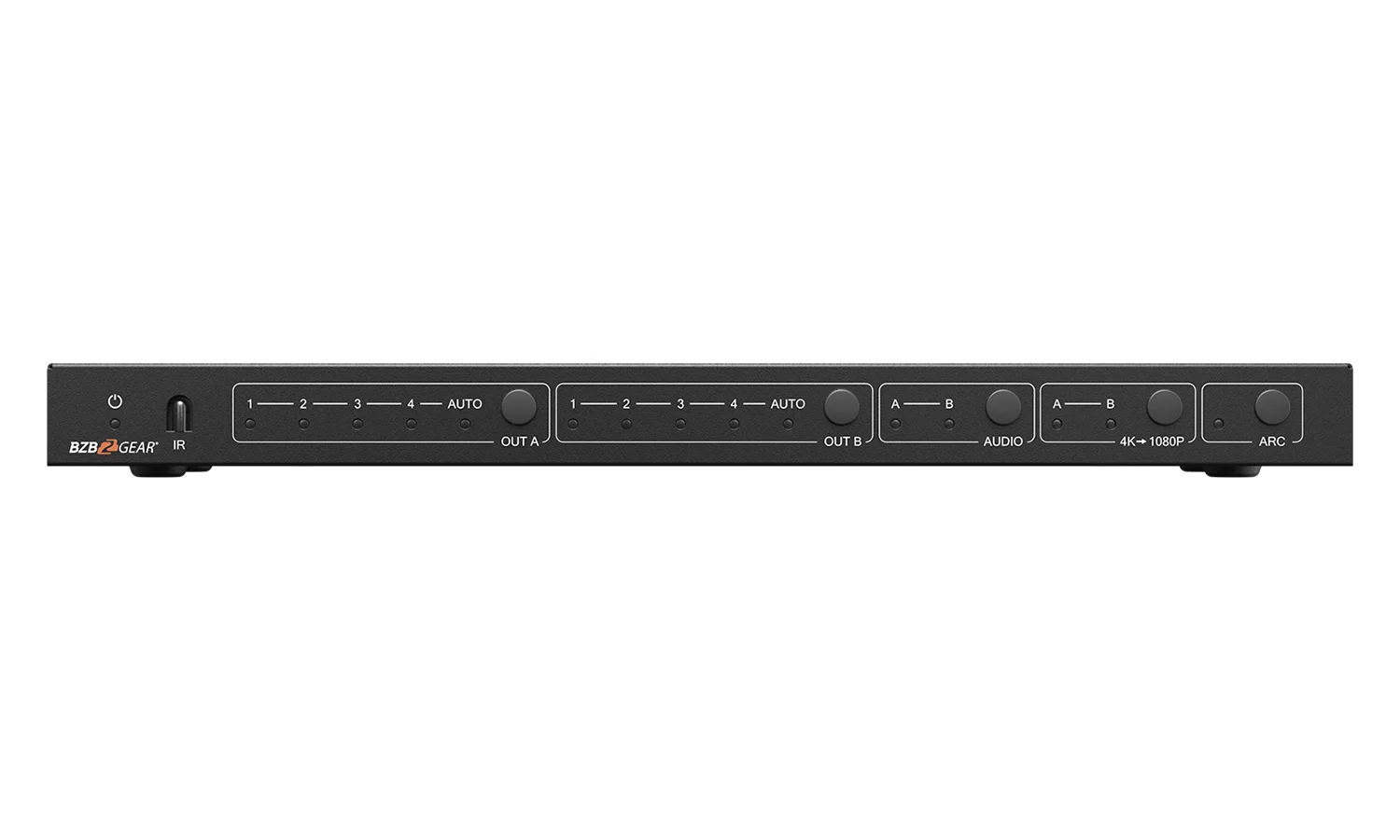

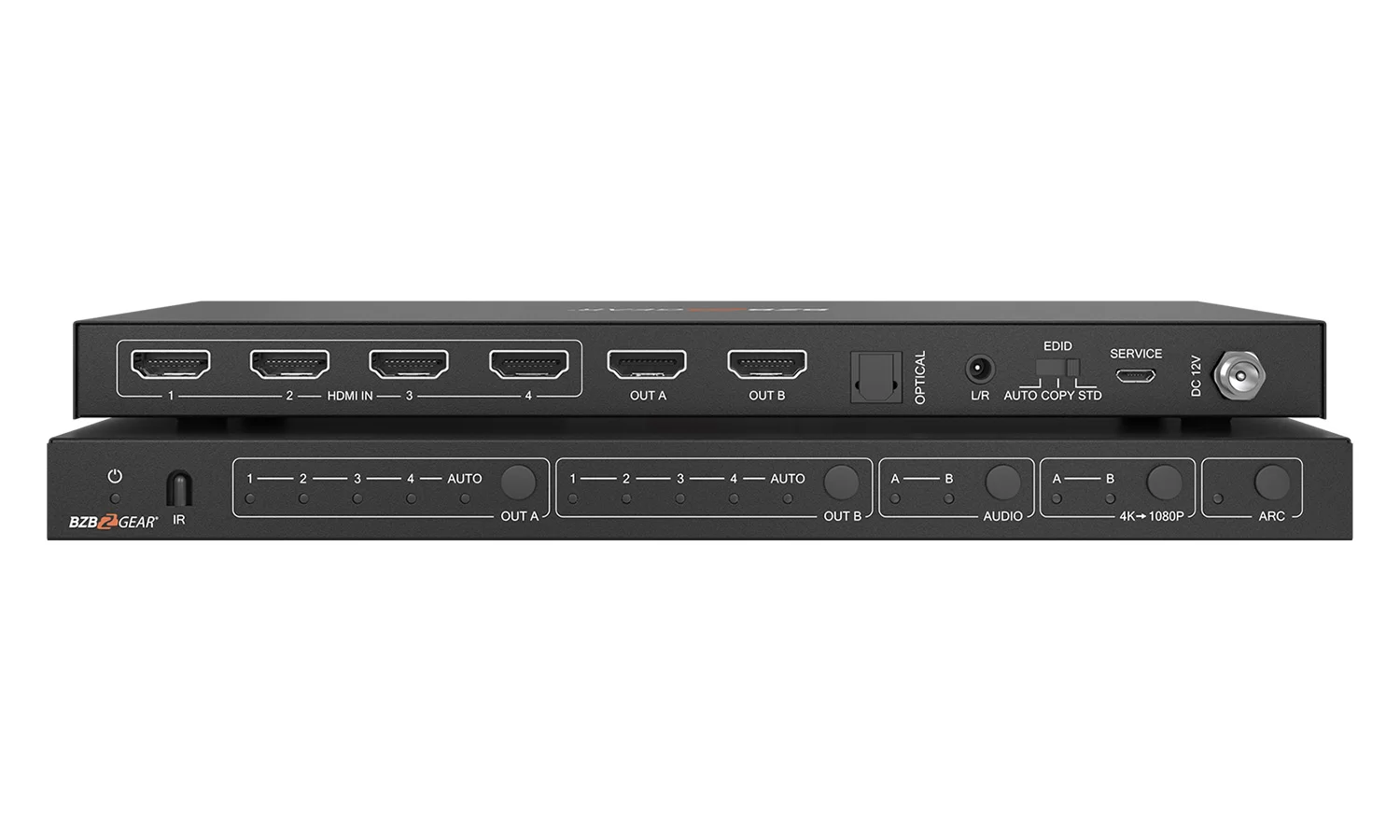

BZBGear BG-UHD-42M 4x2 4K HDMI Matrix Switcher

The BG-UHD-42M routes four HDMI inputs to two outputs independently at up to 4K60 4:4:4 on an 18 Gbps HDMI 2.0 link with HDCP 2.2 and 1.4. Auto-scaling means a 1080p display and a 4K display can share the same source without either dropping out.

Audio is available on optical and on a 3.5 mm analog output, and ARC brings TV audio back to the switcher for a sound system. Dolby Vision, HDR10+, HLG and CEC pass through, and EDID management is built in. The case is metal.

HDMI Compliance	HDMI 2.0
HDCP Compliance	HDCP 2.2 and HDCP 1.4
Video Bandwidth	18 Gbps
Video Resolution	Up to 4K2K@50/60Hz(YCbCr 4:4:4), 4K2K@30Hz. All HDMI 3D TV format, etc.

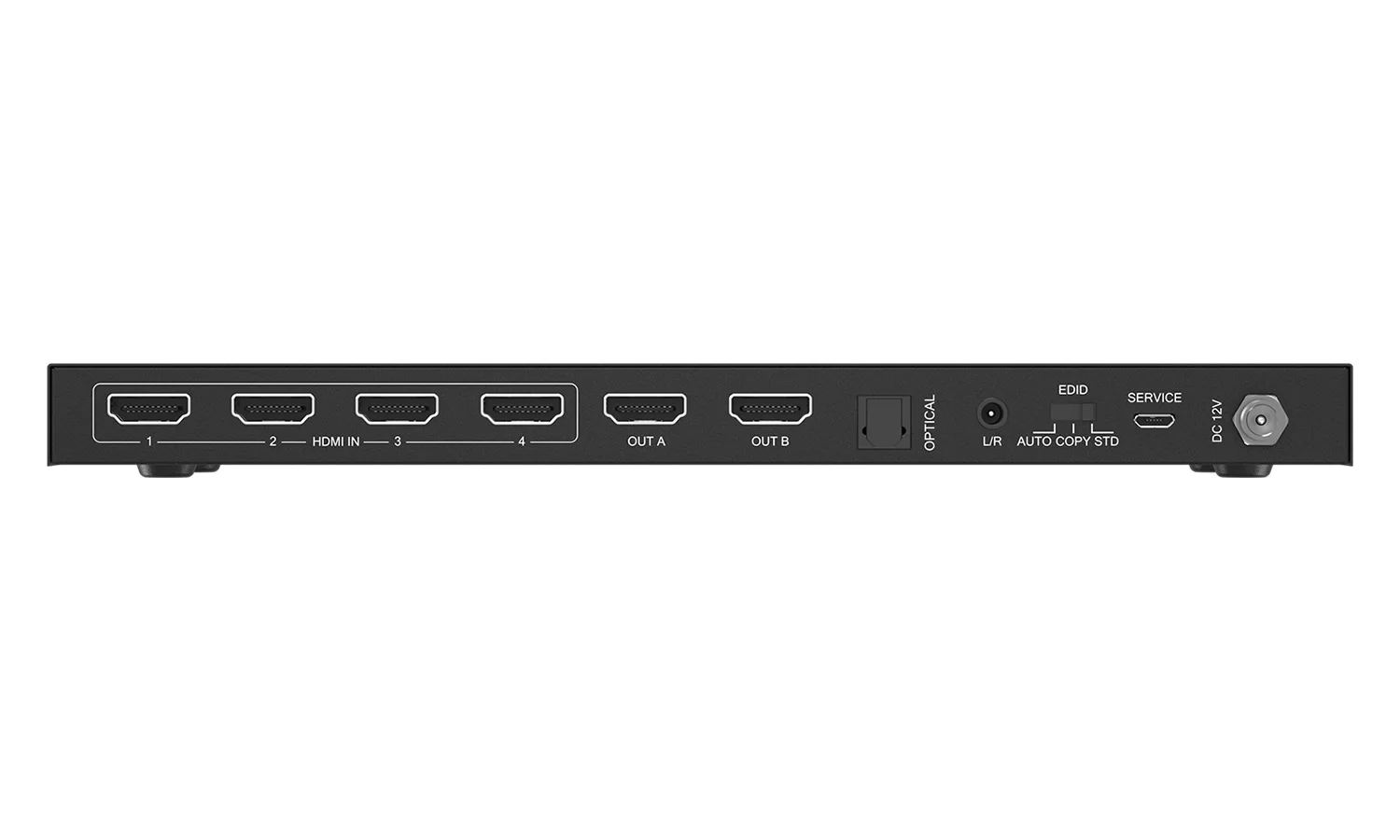

Input Ports	4xHDMI Type A [19-pin female]
Output Ports	2xHDMI Type A [19-pin female] 1xL/R audio out [3.5mm Stereo Mini-jack] 1xOPTICAL audio out [S/PDIF]
HDMI Audio Formats	PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Optical Audio Formats	PCM2.0, Dolby Digital / Plus, DTS
