BZBGear BG-QuadFusion-4K Production Switcher

The QuadFusion 4K is a self-contained production switcher: four HDMI or DisplayPort sources, a picture-in-picture compositor, an HDMI program output and a USB 3.0 capture card built in, so the program feed goes straight into a streaming PC without a separate capture box.

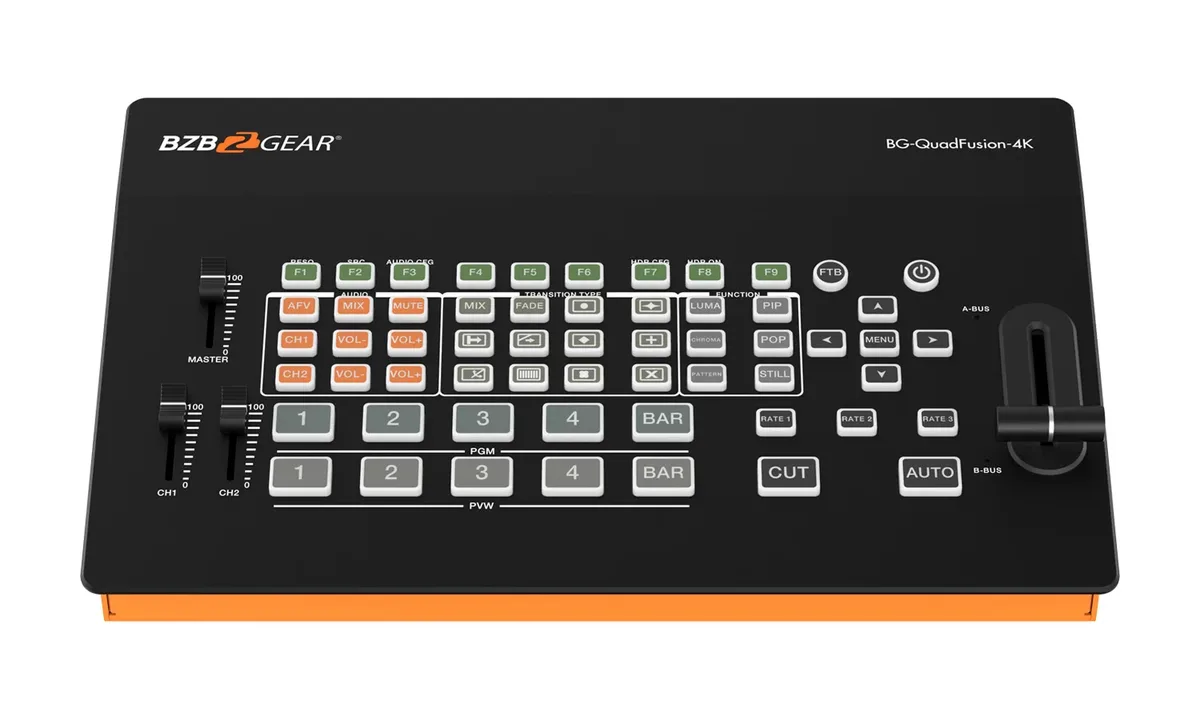

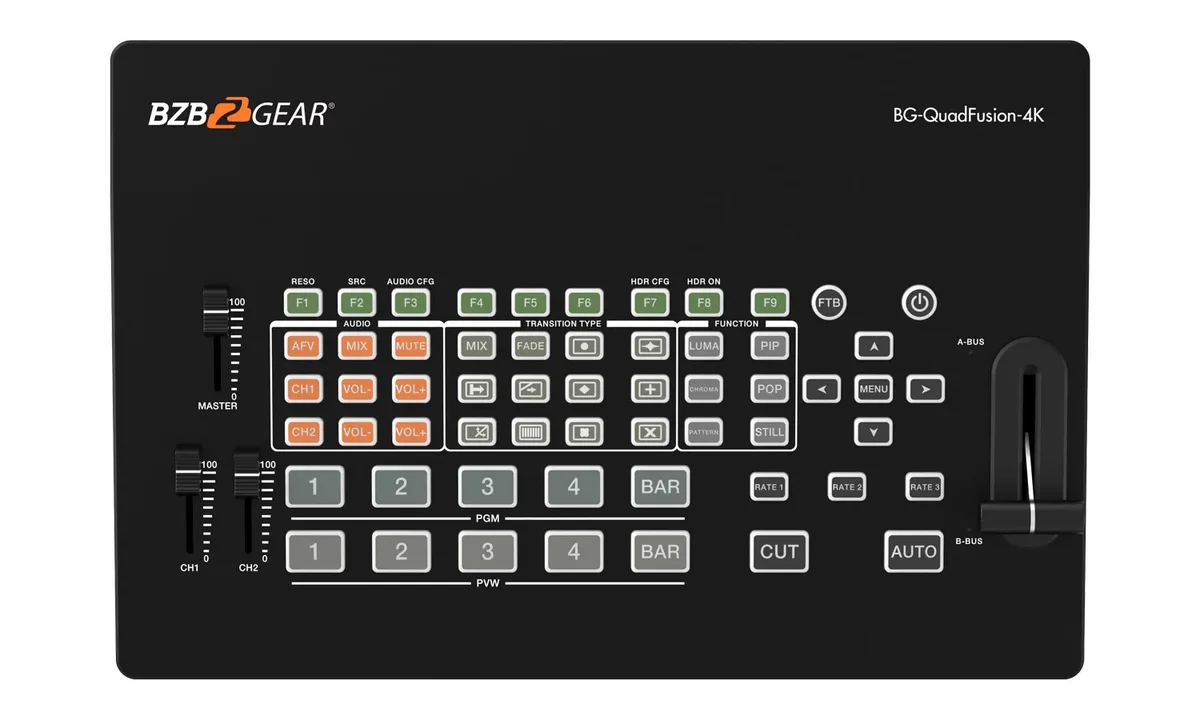

Input rates run from 270 Mbps to 18 Gbps and cover everything from 480i up to 2160p; the output side runs 6 to 18 Gbps. The front panel is a real button surface for live operation rather than a menu system, and the whole unit runs on 12 V at under 35 watts.

Input signals	HDMI / DP video signal
Input rates	270Mbps ~ 18Gbps
Input resolutions	3840x2160, 1920x1080, 1680x1050, 1600x900, 1440x1050, 1366x768, 1360x768, 1280x102, 1280x960, 1280x800, 1280x768, 1280x720, 1280x600, 1152x864, 1024x768, 800x600
Output signal	HDMI video output
Output rates	6Gbps ~ 18Gbps
Control surface	Support on-site production, integration of a variety of buttons
Power supply	12V
Power consumption	<35W
Dimensions	11.2in x 6.9in x 2.4in [284mm x 175mm x 60mm]
