BZBGear BG-8K-AD 8K HDMI Audio De-Embedder

The BG-8K-AD takes audio off an HDMI source, or off an ARC-capable TV, and presents it on both digital S/PDIF and a 3.5 mm analog stereo jack. The HDMI output continues to the display carrying the original picture at up to 8K60 4:2:0 12-bit or 4K120 4:4:4 12-bit.

Bandwidth is 48 Gbps FRL and 18 Gbps TMDS with HDCP 2.3, and HDR, HDR10, HDR10+, Dolby Vision and HLG all pass through. It is the straightforward answer when a display has no audio output and the room needs powered speakers.

HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	48Gbps FRL and 18Gbps TMDS
Video Resolution	Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit

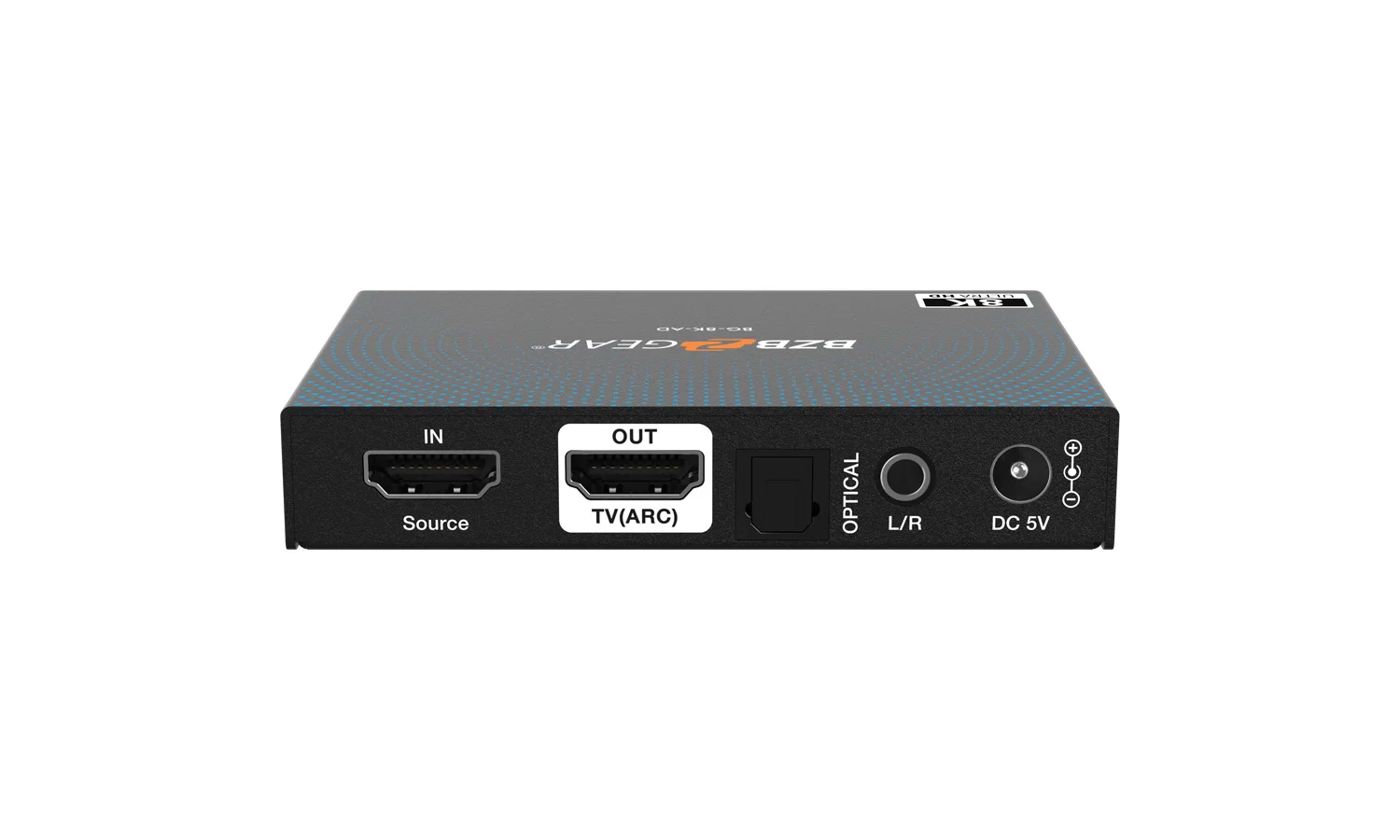

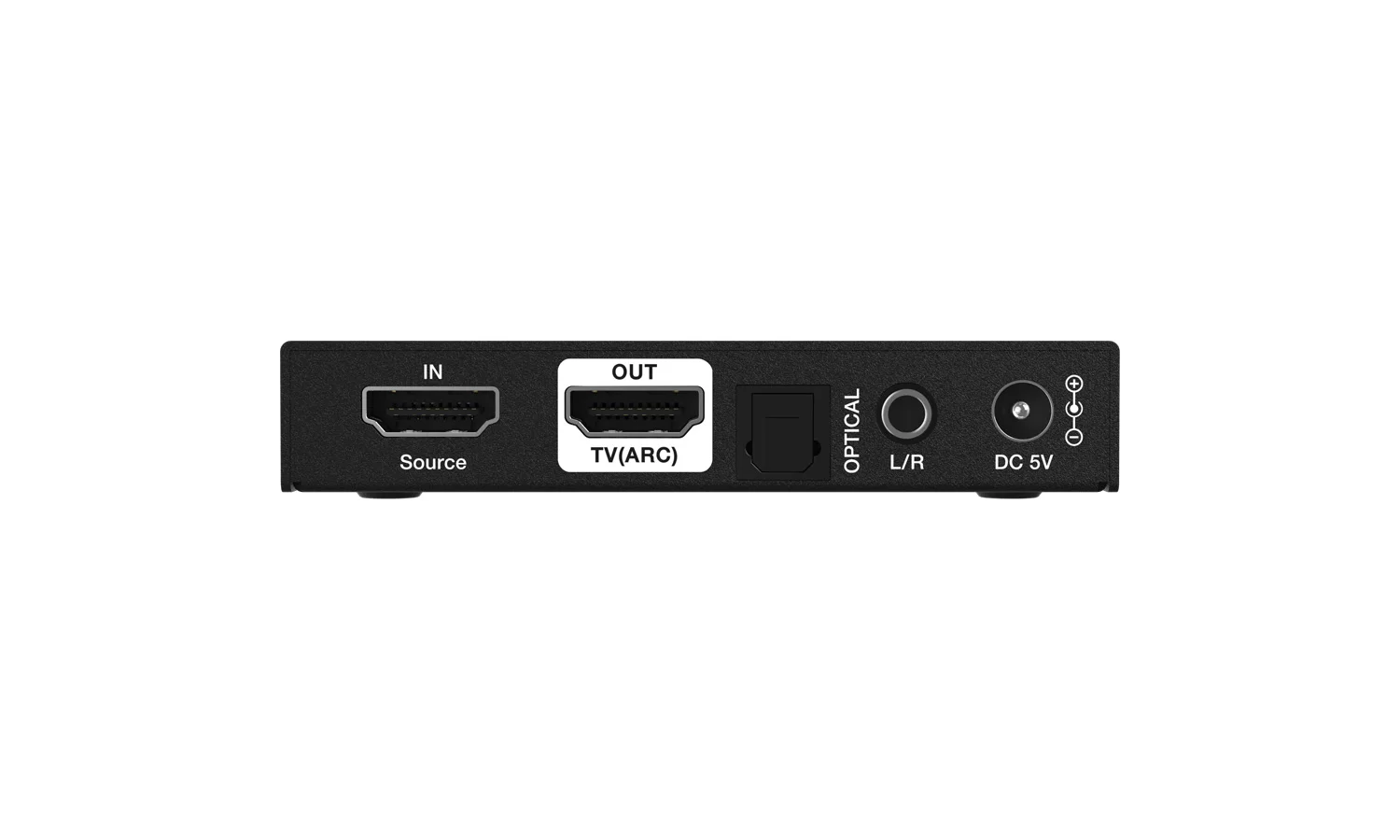

Input	1 x Source IN [HDMI Type A, 19-pin female]
Output	1 x TV(ARC) OUT [HDMI Type A, 19-pin female] 1 x L/R [3.5mm Stereo mini-jack] 1 x OPTICAL [S/PDIF, female]
Audio Formats	HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD AUDIO BREAKOUT: OPTICAL OUT: PCM 2.0CH, Dolby, DTS 5.1CH L/R OUT: PCM 2.0CH
Color Depth	8/10/12bit
