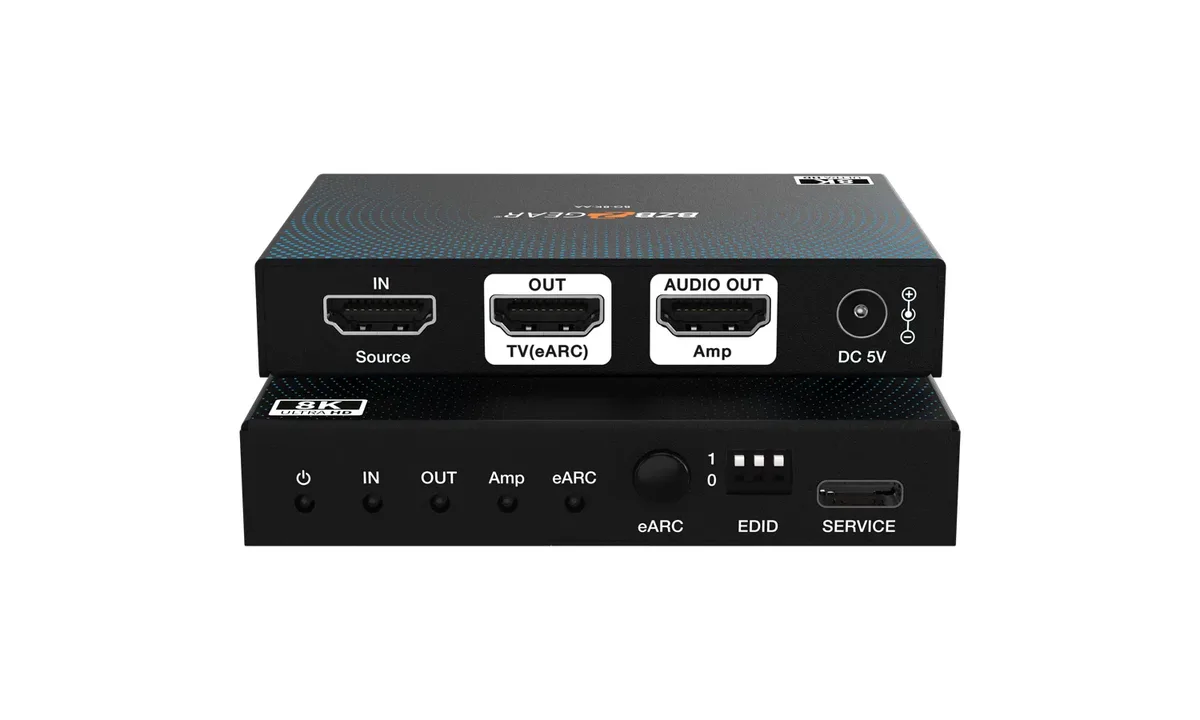

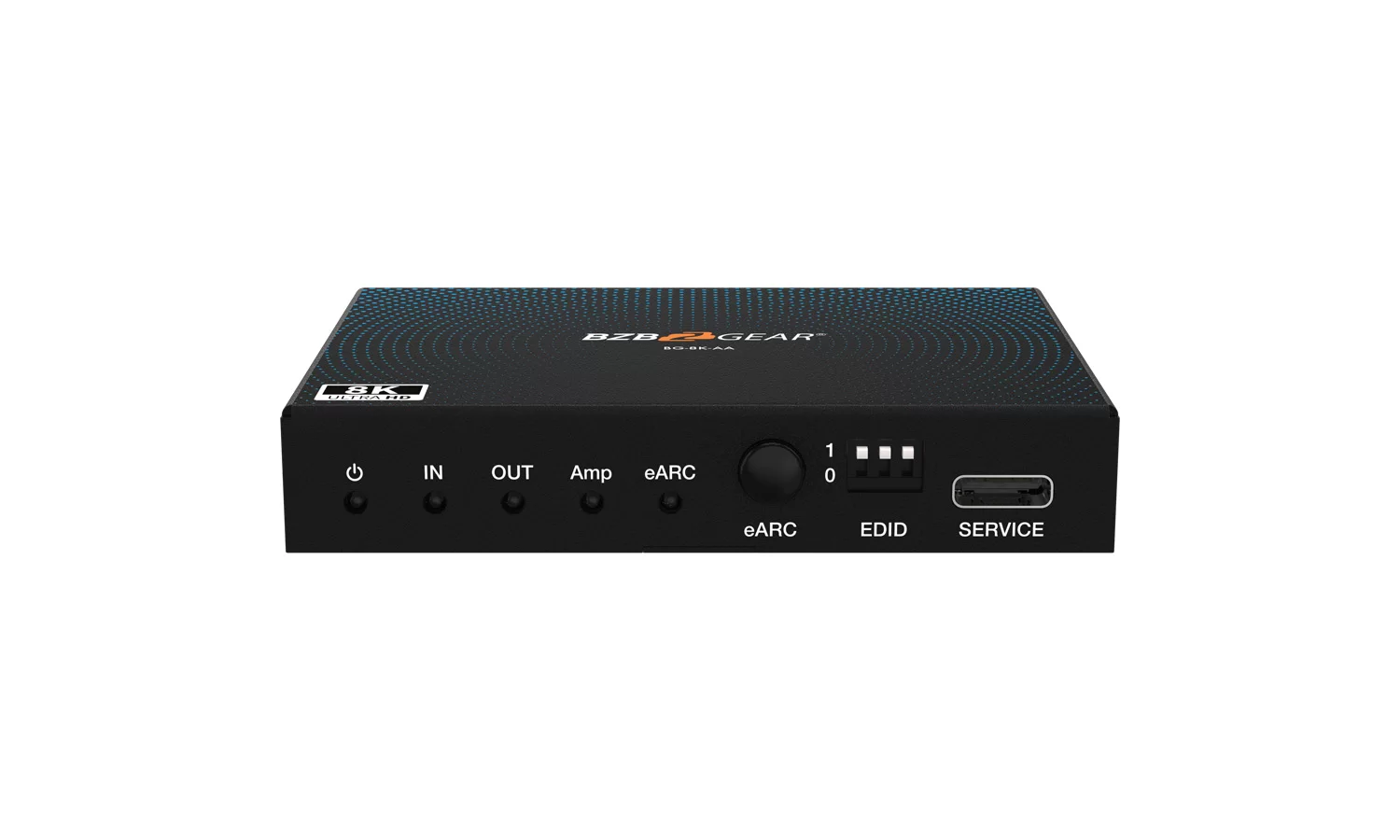

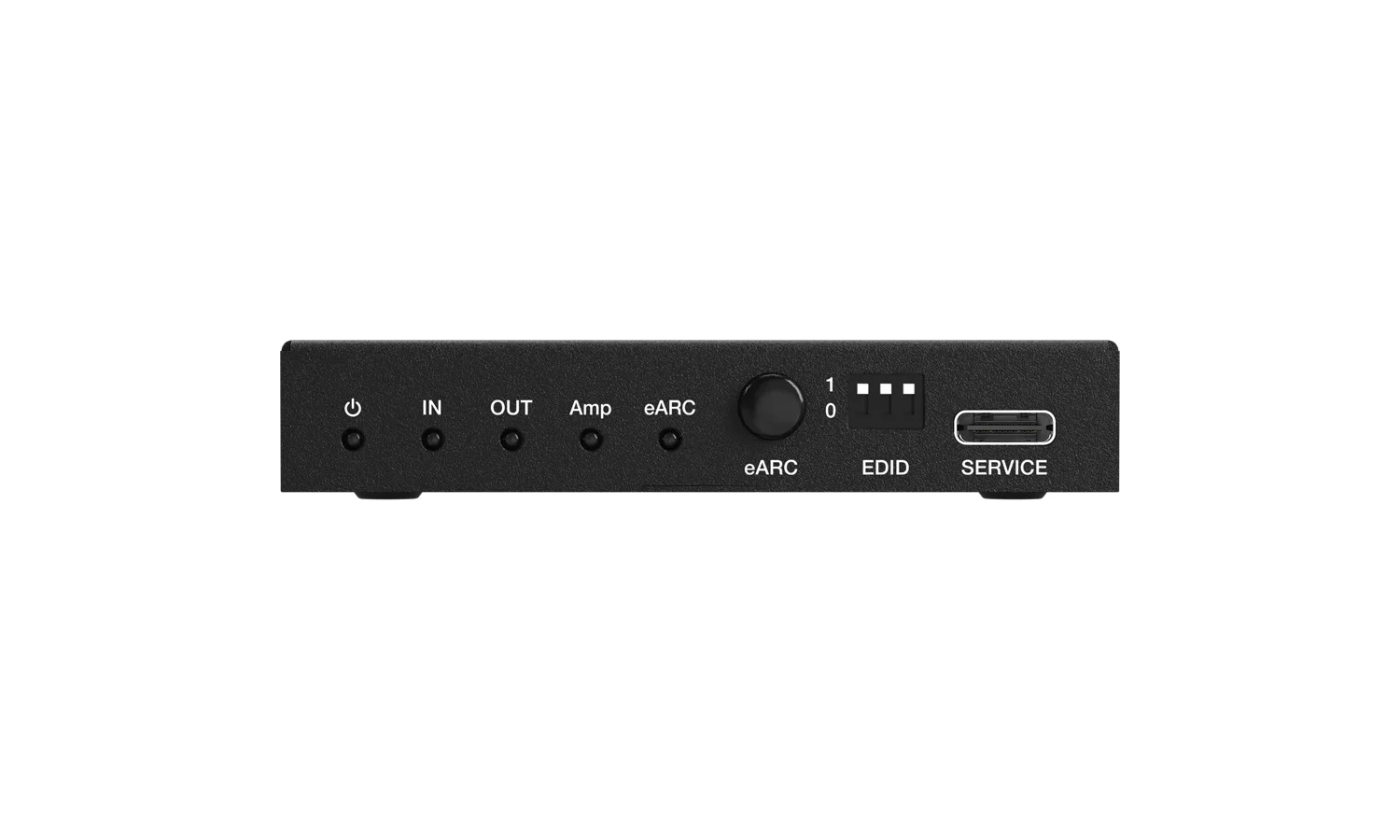

BZBGear BG-8K-AA eARC Audio Converter for Amplifiers

The BG-8K-AA sits between a source and a TV and extracts the audio an amplifier needs, either from the HDMI source directly or back down the TV's ARC or eARC return path. Video carries on to the display at up to 8K60 4:2:0 12-bit or 4K120 4:4:4 12-bit on 48 Gbps FRL.

Because the extraction is done in hardware there is no added audio or video latency, and Dolby Atmos, Dolby TrueHD, DTS-HD Master Audio and LPCM all survive the trip. VRR, ALLM and the full set of HDR formats pass through, and firmware goes in over USB-C.

HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	48Gbps FRL and 18Gbps TMDS
Video Resolution	Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit

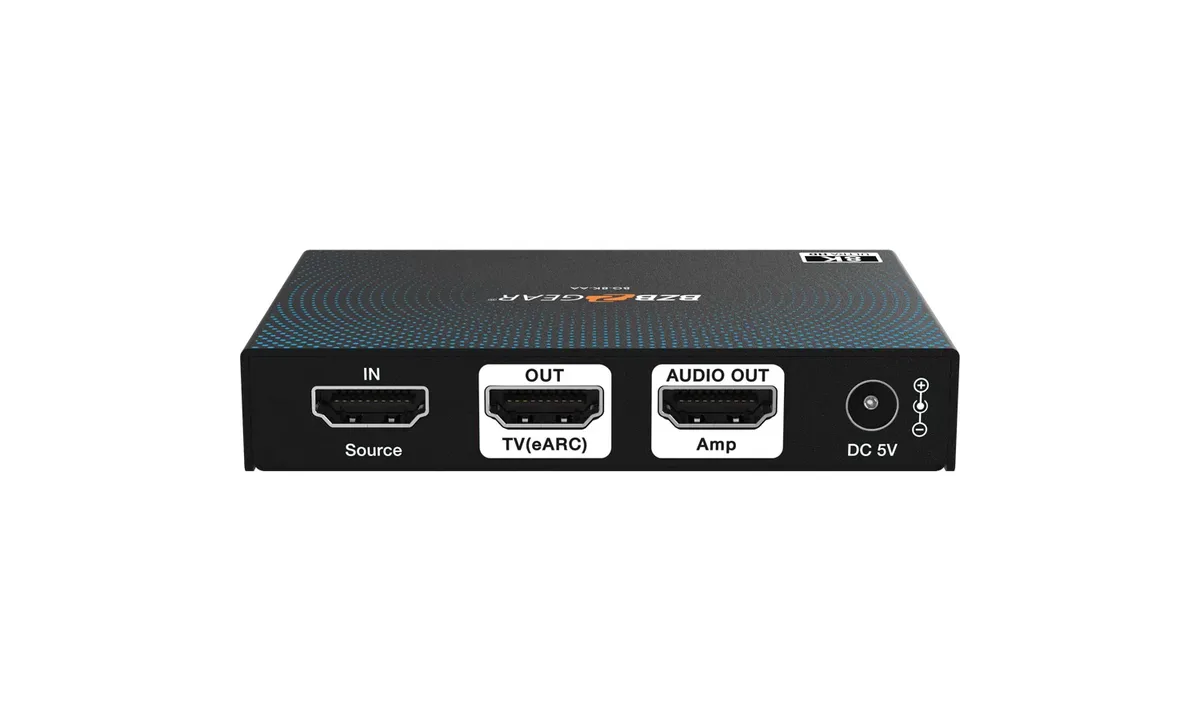

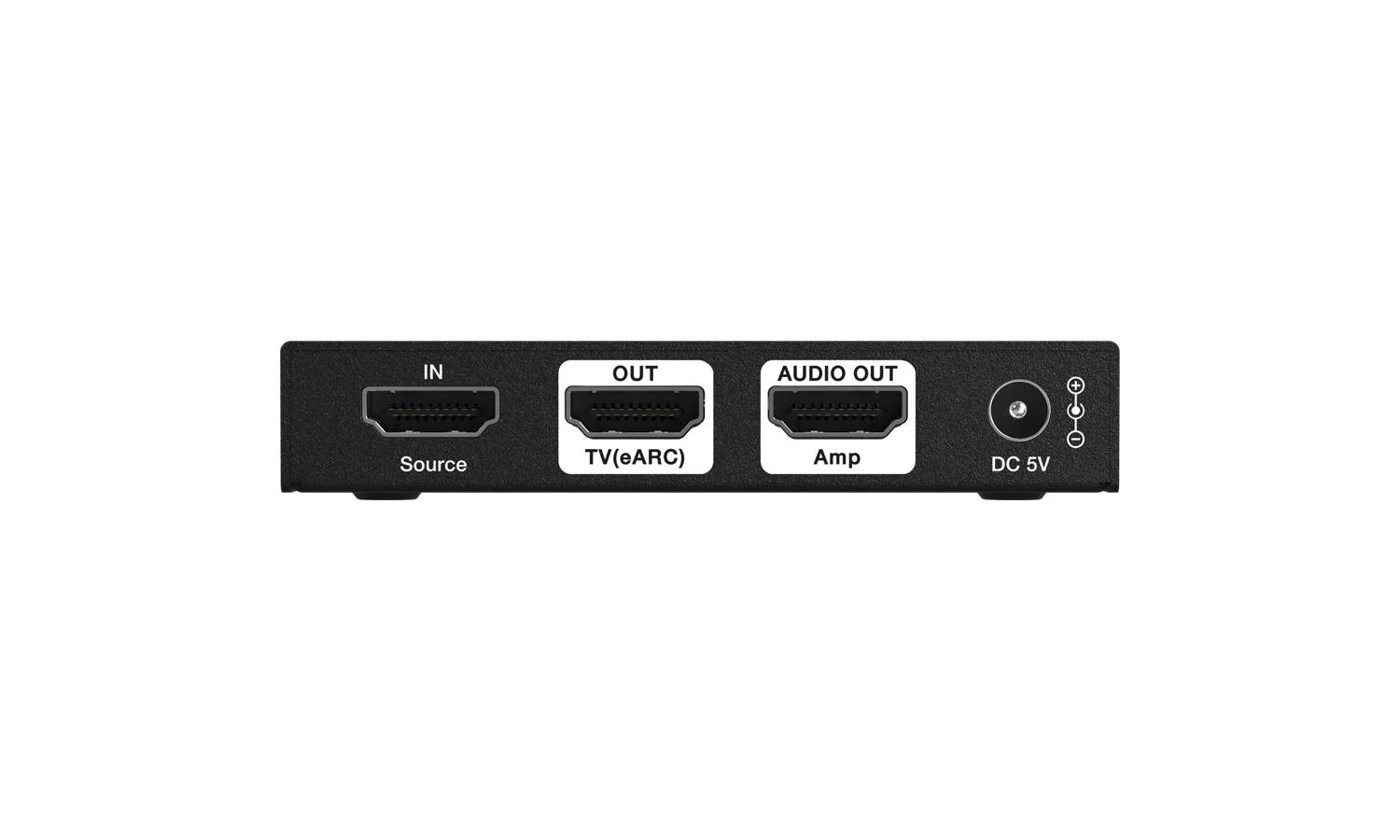

Input	1 x Source IN [HDMI Type A, 19-pin female]
Output	1 x TV(eARC) OUT [HDMI Type A, 19-pin female] 1 x Amp AUDIO OUT [HDMI Type A, 19-pin female]
Audio Formats	HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X HDMI AUDIO OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X
Color Depth	8/10/12bit
