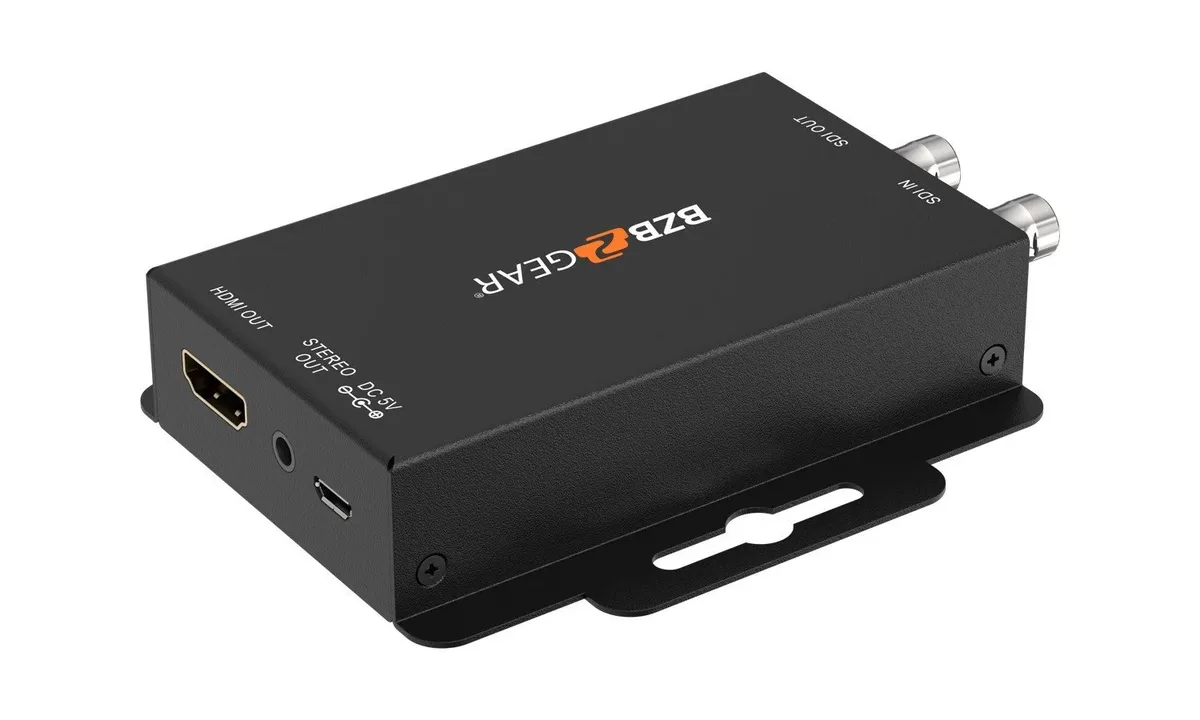

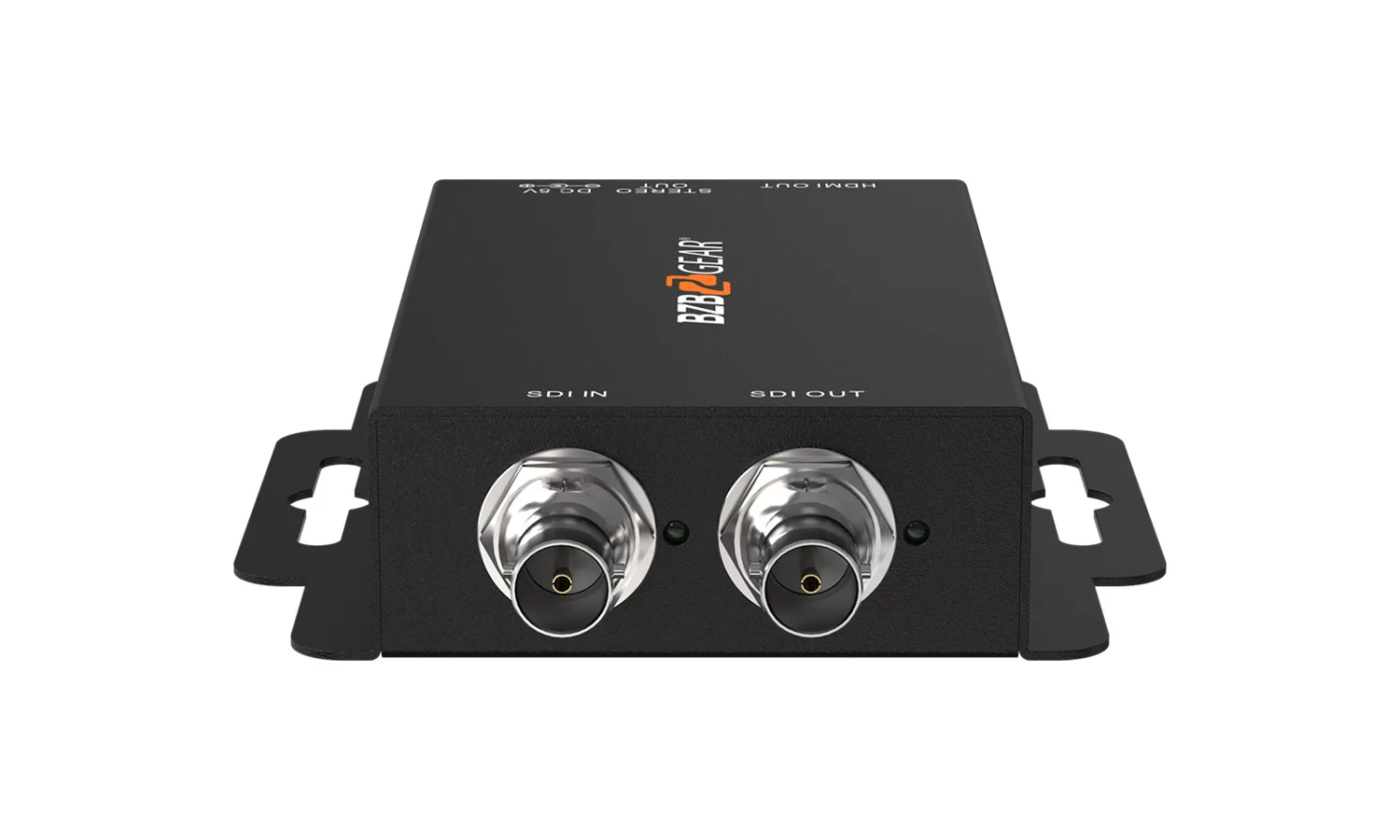

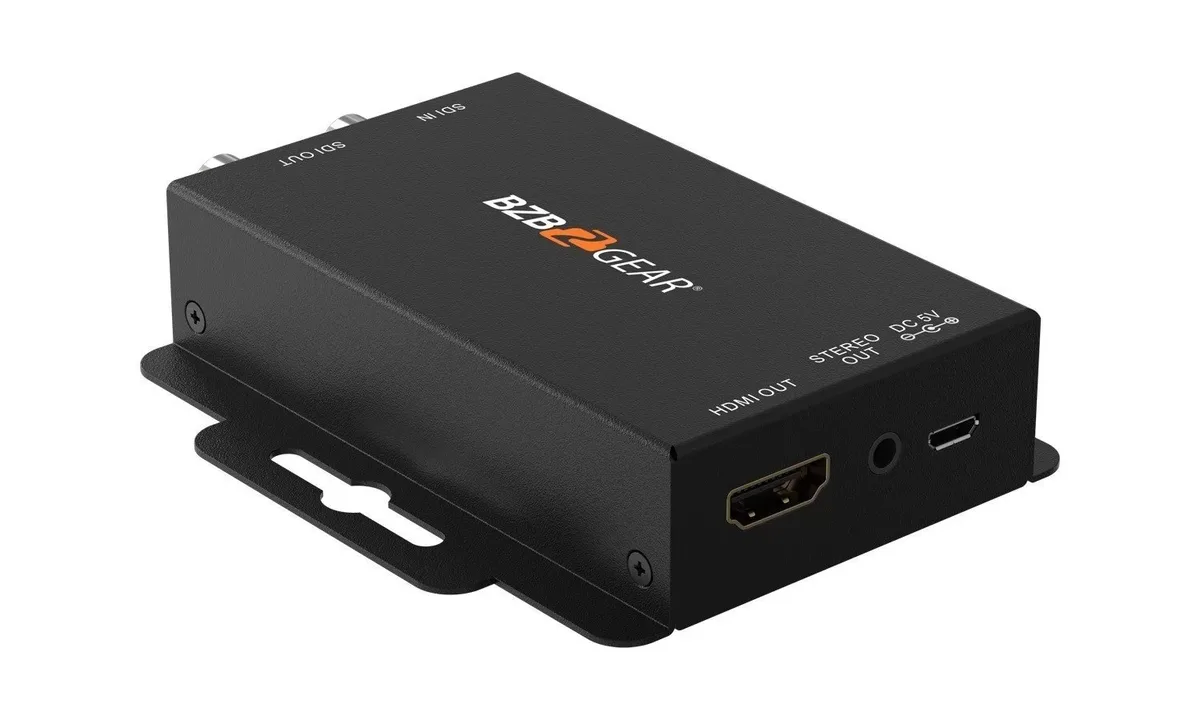

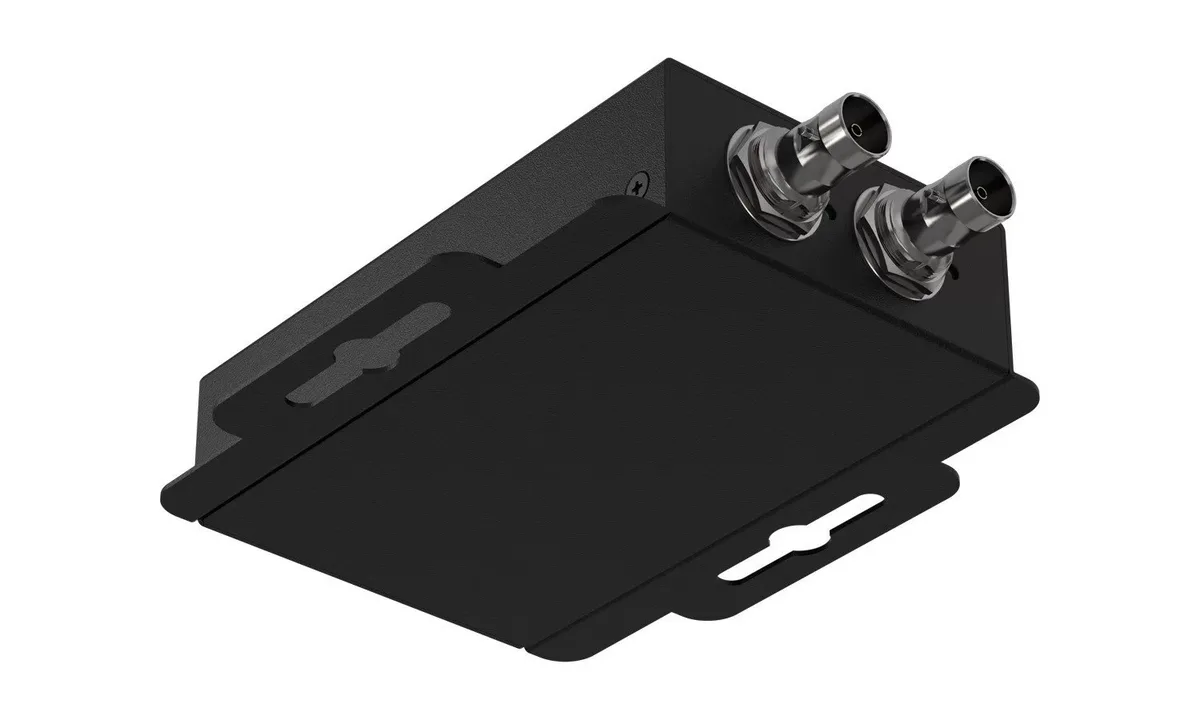

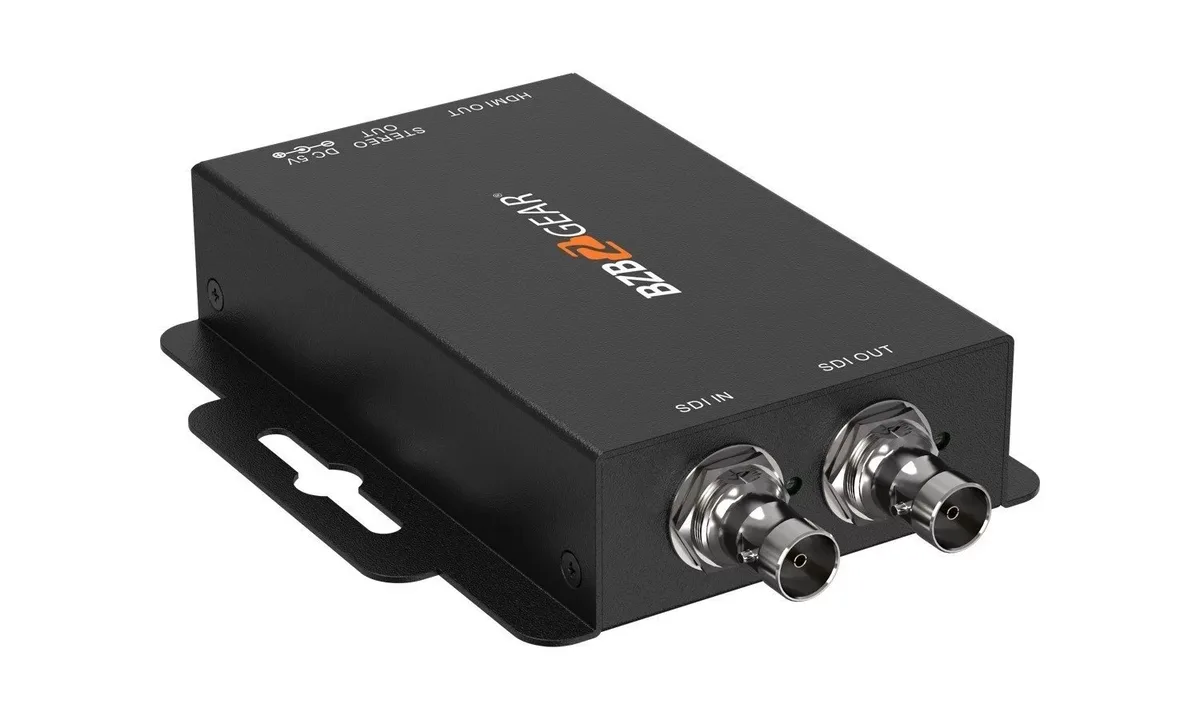

BZBGear BG-4KSH 12G-SDI to HDMI Converter

The 4KSH goes the other way from the 4KHS: SDI in on BNC, HDMI out to a monitor, a recorder or a projector. It detects SD, HD, 3G, 6G and 12G rates automatically and extracts the embedded audio, so a coax feed can be checked or displayed anywhere there is a screen.

At 175 grams and powered from a Micro-USB port drawing 2.5 watts, it is small enough to gaffer to the back of a monitor or drop in a kit bag. Reach on the input side is up to 70 m at 12G and 250 m at HD-SDI.

HDMI compliance	2.0
SDI formats	SMPTE 2082; 11.88 Gbps / 12G-SDI: 2160p at 50/59.95/60 Hz SMPTE 2081; 5.94 Gbps / 6G-SDI: 2160p at 25/29.97/30 Hz SMPTE 424M-2.97 Gbps / 3G-SDI: 1080p at 50/59.94/60 Hz (4:2:2) SMPTE 274M-1.485 Gbps / HD-SDI: 1080p at 23.98/24/25/29.97/30 Hz, 1080i at 50/59.94/60 Hz SMPTE 292M-1.485 Gbps / HD-SDI: 1080i at 30 Hz, 720p at 60 Hz SMPTE 296M-1.485 Gbps / HD-SDI: 720p at 23.98/24/25/29.97/30/50/59.94/60 Hz
HDMI formats	4K UHD Video Standards / 2160p at 23.98/24/25/29.97/30/50/59.94/60 Hz UHD Video Standards / 1080p at 50/59.94/60 Hz (4:2:2) HD Video Standards / 720p at 50/59.94/60 Hz, 1080i at 50/59.94/60 Hz, 1080p at 23.98/24/25/29.97/30 Hz
SDI bitrates	270 Mbps, 1.485 Gbps, 2.97 Gbps, 5.94 Gbps, 11.88 Gbps
Video sampling	4:2:2
Audio sampling	48 kHz & 24 bit
Auto switching	Auto switching between SD / HD / 3G / 6G / 12G-SDI
Cable reach	12G-SDI up to 70m (233ft) 6G-SDI up to 100m (330ft) 3G-SDI up to 190m (627ft) HD-SDI up to 250m (825ft)
Power supply	5V DC, 1A
Weight	0.39 lb (175g)
