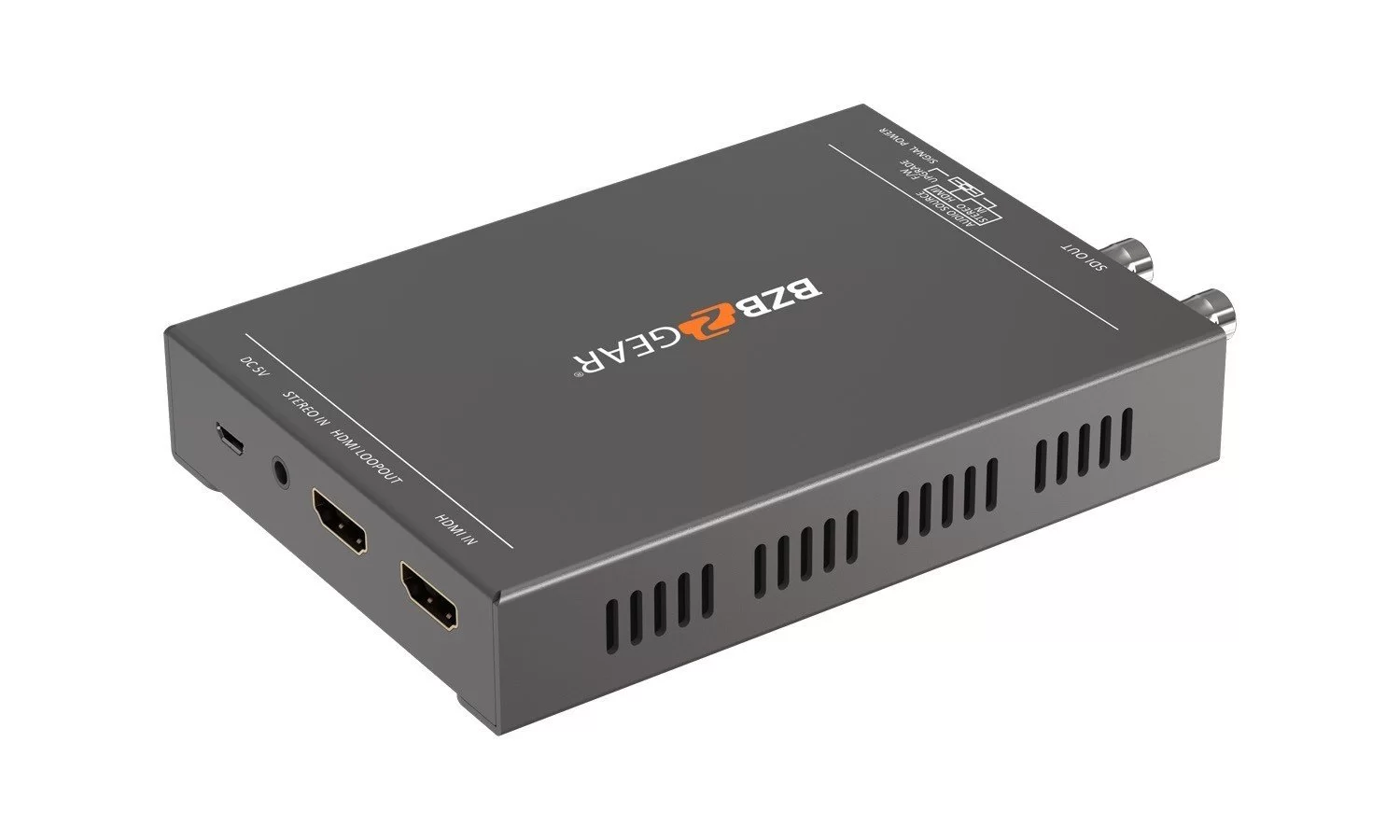

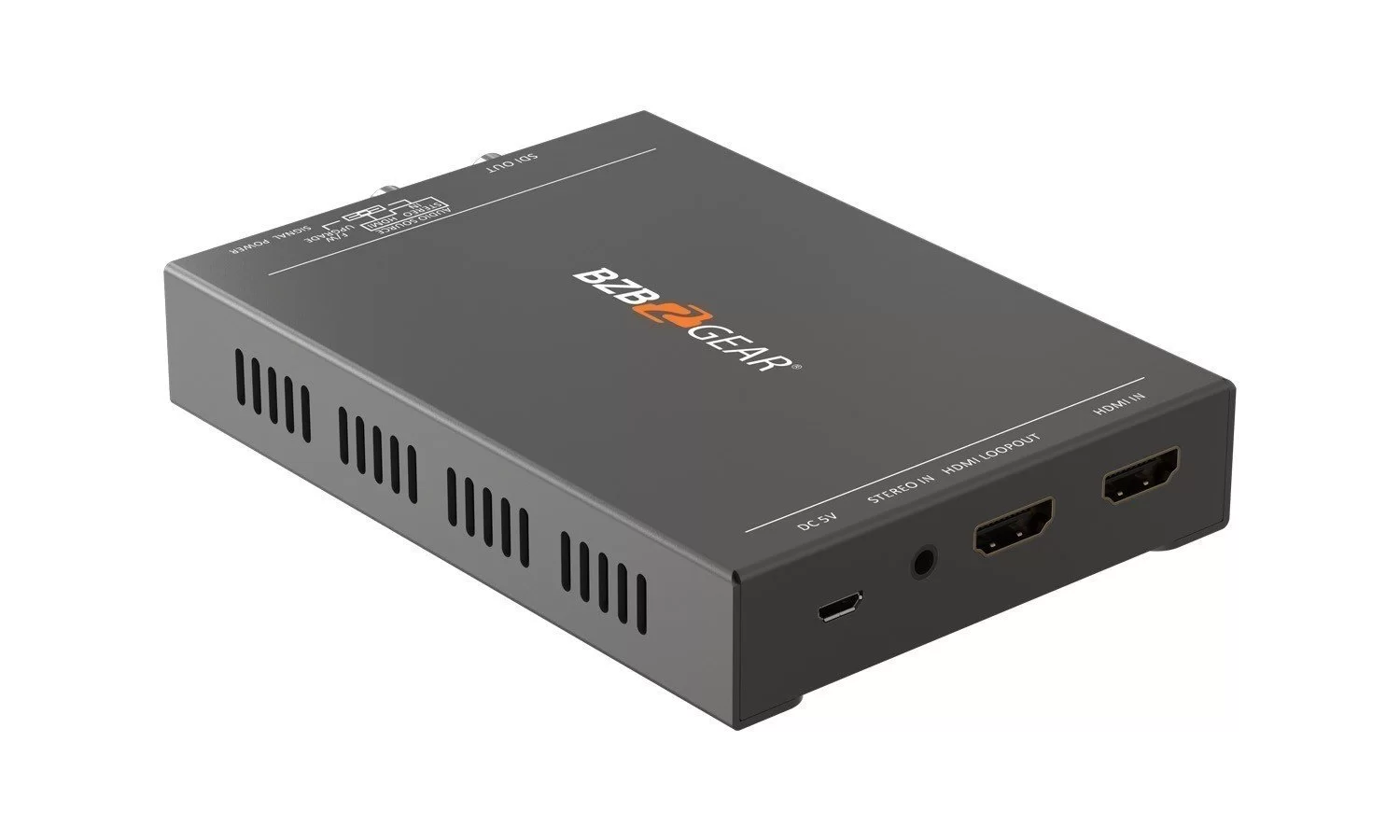

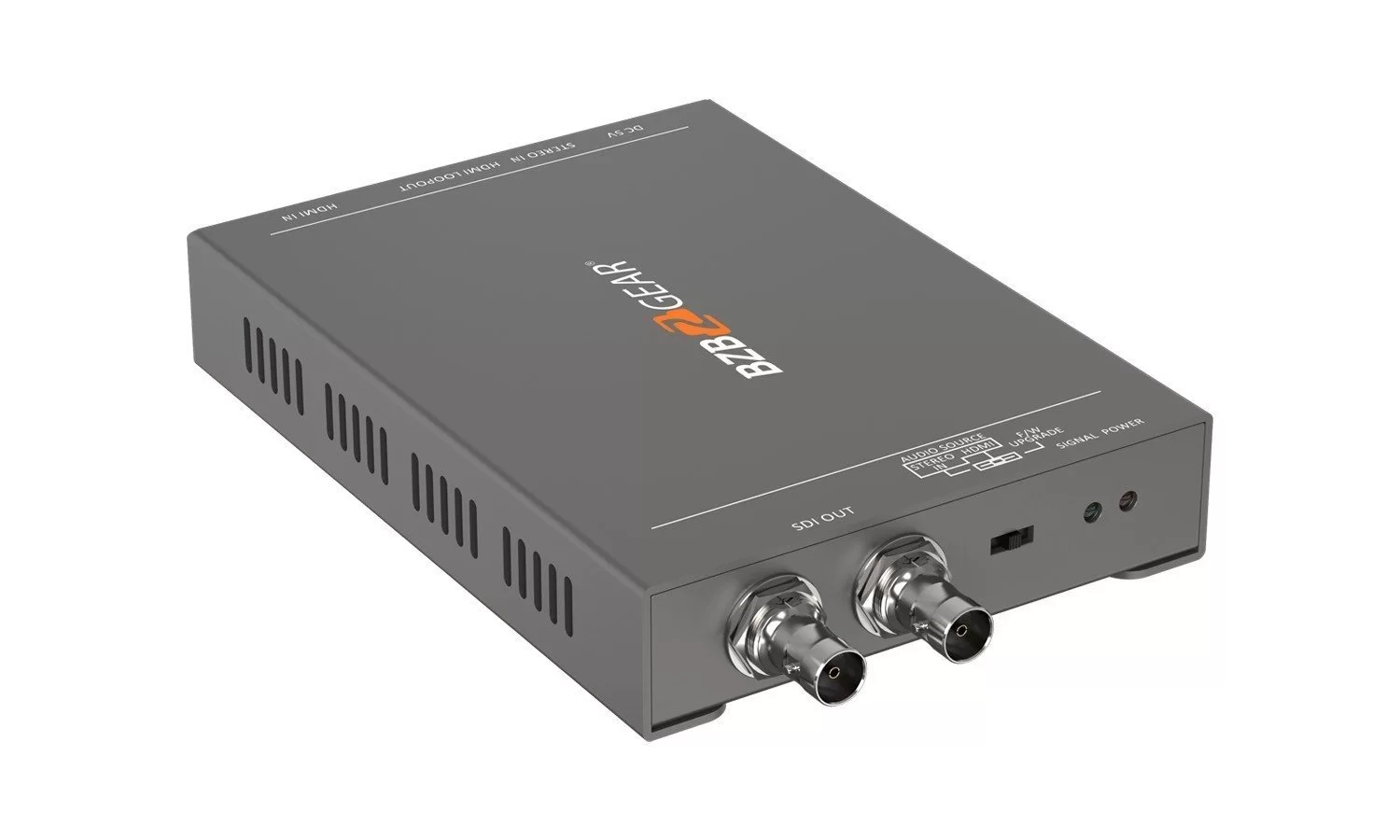

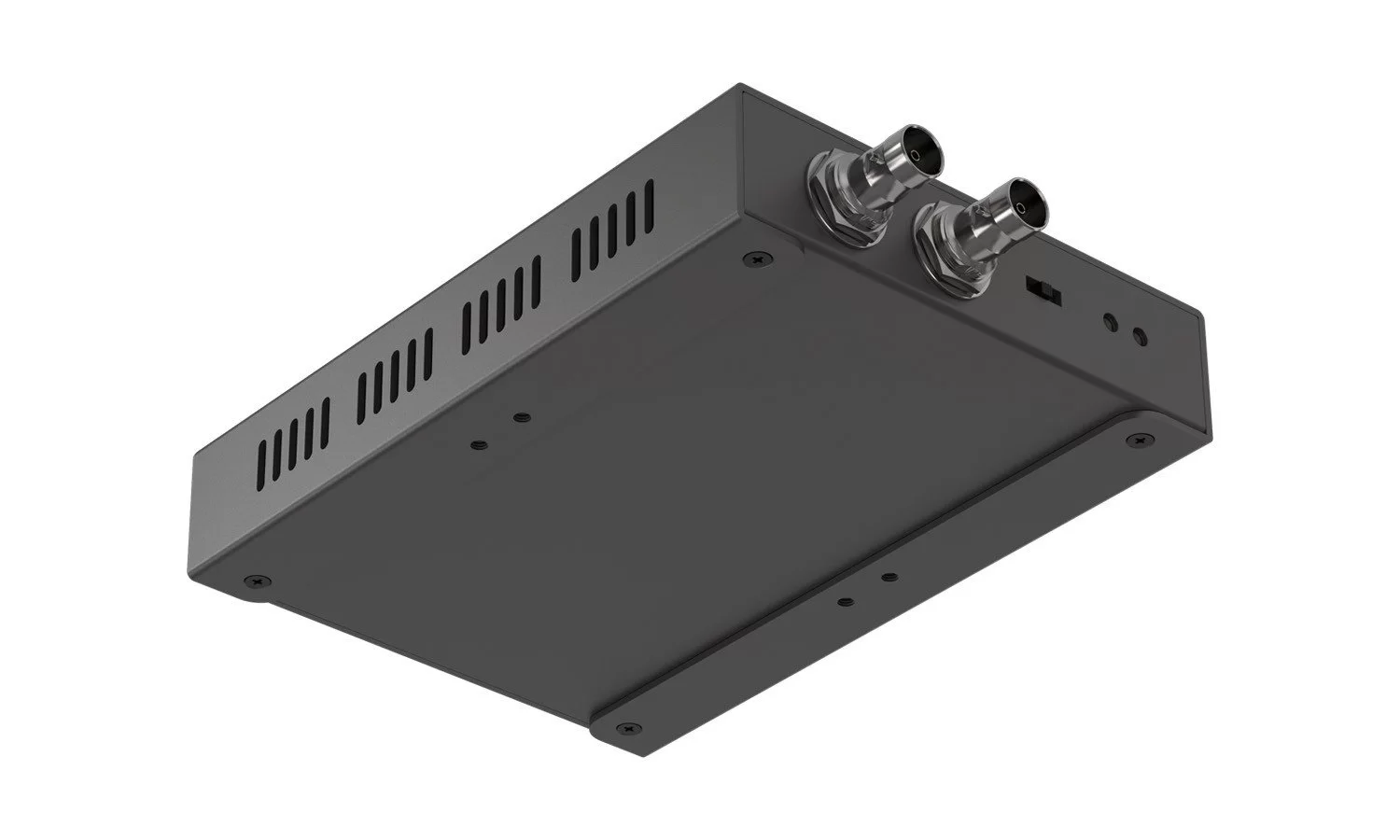

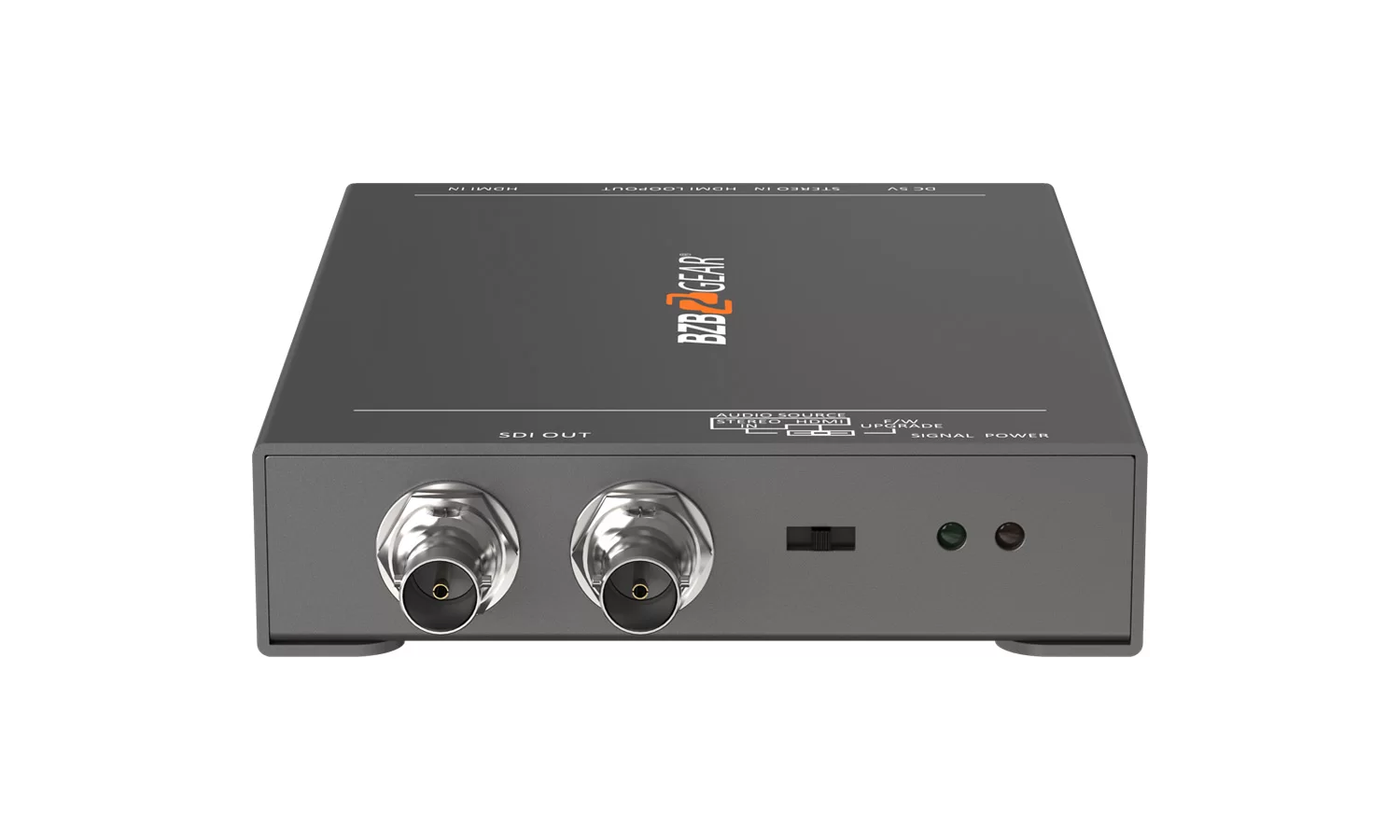

BZBGear BG-4KHS HDMI to 12G-SDI Converter
The 4KHS takes an HDMI source - a camera, a laptop, a media player - and puts it onto SDI so it can travel on coax to a switcher or a machine room. Auto switching handles SD, HD, 3G, 6G and 12G rates without intervention, and audio is embedded at 48 kHz 24-bit.
An HDMI loop-out keeps a local display alive alongside the SDI feed. Reach on the SDI side runs from 60 m at 12G out to 300 m at SD-SDI. The chassis is metal, wall-mountable, and takes a locking 12 V barrel connector so the power cannot be pulled out mid-show.
- Dimensions420 x 400 x 300mm [1'4"x 1'3" x 11.8"]
- Power supply12V DC, 2A
- Weight1.07 lb (485g)
- HDMI compliance2.0
- SDI bitrates270 Mbps, 1.485 Gbps, 2.97 Gbps, 5.94 Gbps, 11.88 Gbps
| Compliance | 2.0 |
|---|---|
| SDI Formats | SMPTE 2082; 11.88 Gbps / : 2160p at 50/59.95/60 Hz SMPTE 2081; 5.94 Gbps / 6G-: 2160p at 25/29.97/30 Hz SMPTE 424M; 2.97 Gbps / 3G-SDI: 1080p at 50/59.94/60 Hz () SMPTE 274M; 1.485 Gbps / HD-SDI: 1080p at 23.98/24/25/29.97/30 Hz, 1080i at 50/59.94/60 Hz SMPTE 296M; 1.485 Gbps / HD-SDI: 720p at 23.98/24/25/29.97/30/50/59.94/60 Hz SMPTE 292M; 1.485 Gbps / HD-SDI: 1080i at 30 Hz, 720p at 60 Hz SMPTE 259M; 270 MbpsSD-SDI: NTSC 525 at 59.94 Hz, PAL 625 at 50 Hz |
| HDMI Formats | 4K UHD Video Standards / 2160p at 23.98/24/25/29.97/30/50/59.94/60 Hz UHD Video Standards / 1080p at 50/59.94/60 Hz (4:2:2) HD Video Standards / 720p at 50/59.94/60 Hz, 1080i at 50/59.94/60 Hz, 1080p at 23.98/24/25/29.97/30 Hz SD Video Standards / NTSC at 59.94 Hz, PAL at 50 Hz |
| SDI Bitrates | 270 Mbps, 1.485 Gbps, 2.97 Gbps, 5.94 Gbps, 11.88 Gbps |
| Video Sampling | 4:2:2 |
| Audio Sampling | 48 kHz & 24 bit |
| Auto Switching | Auto switching between SD / HD / 3G / 6G / 12G-SDI |
| Cable Reach | 12G-SDI up to 60m (200ft) 6G-SDI up to 75m (250ft) 3G-SDI up to 90m (300ft) HD-SDI up to 150m (500ft) SD-SDI up to 300m (1000ft) |
| Power Supply | 12V DC, 2A |
| Weight | 1.07 lb (485g) |
| Dimensions | 420 x 400 x 300mm [1'4"x 1'3" x 11.8"] |
HDMIThe digital video and audio connector on cameras, monitors and computers. Cable runs are shorter than SDI.
12G-SDISDI at 12 Gbit/s. One coaxial cable carries 4K video at up to 60 frames per second.
SDISerial Digital Interface. The coaxial video connection used in broadcast. It carries uncompressed video and embedded audio over long cable runs.
4:2:2A colour sampling scheme: colour is stored at half the horizontal resolution of brightness. The broadcast standard; 4:2:0 keeps less colour detail.
