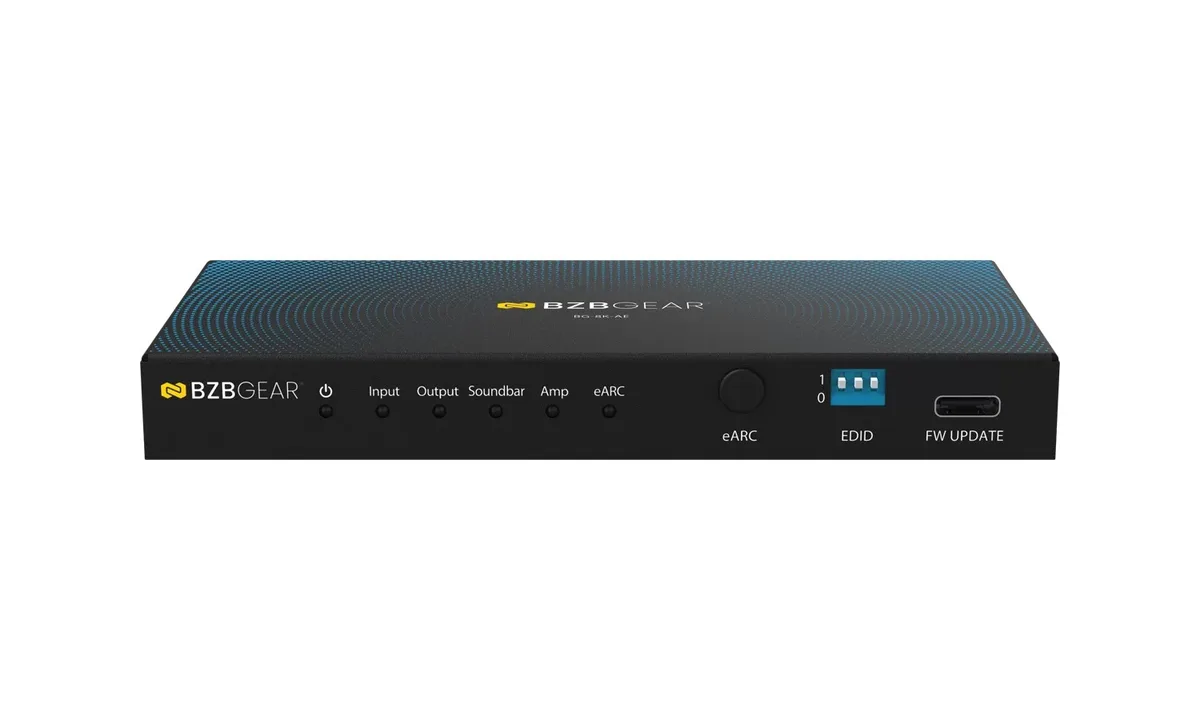

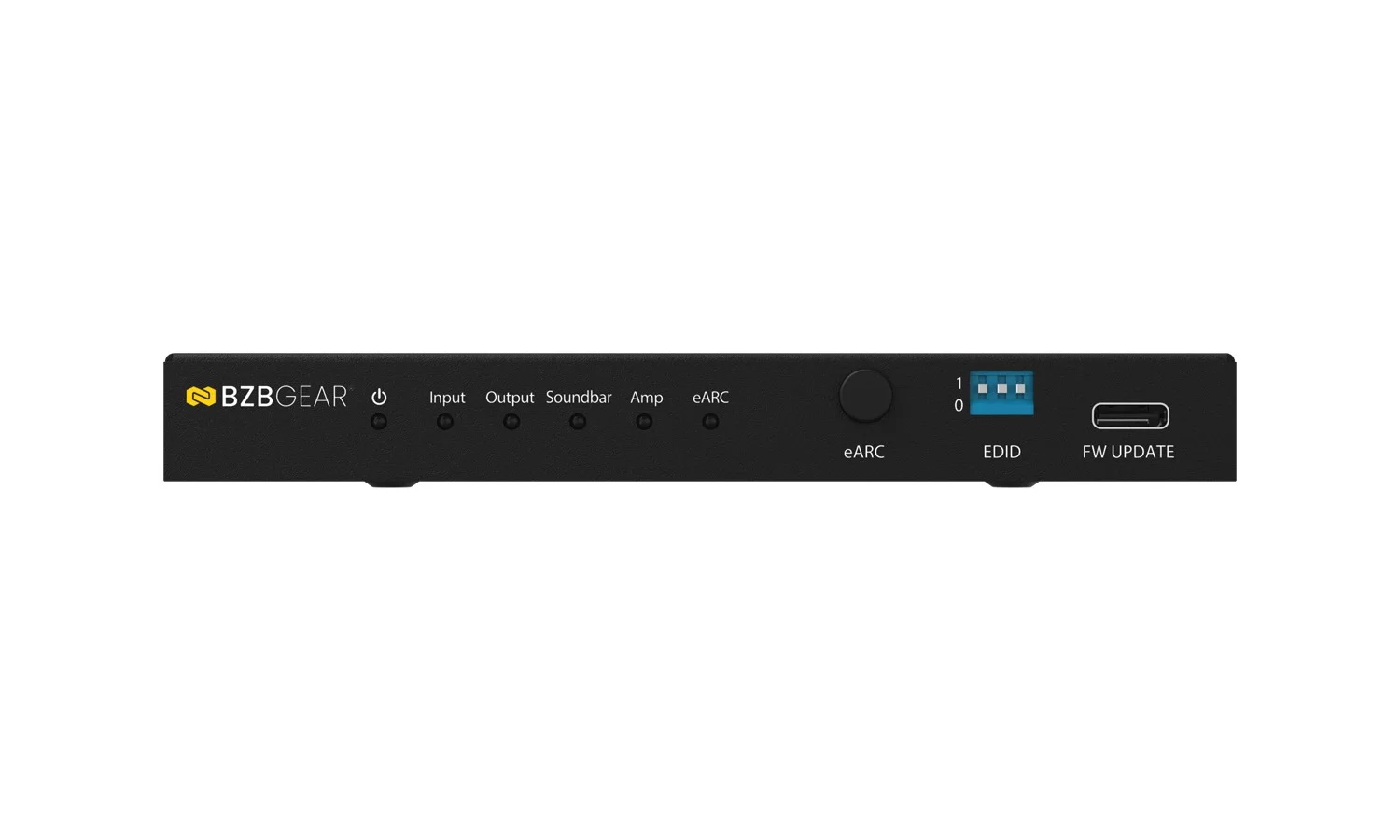

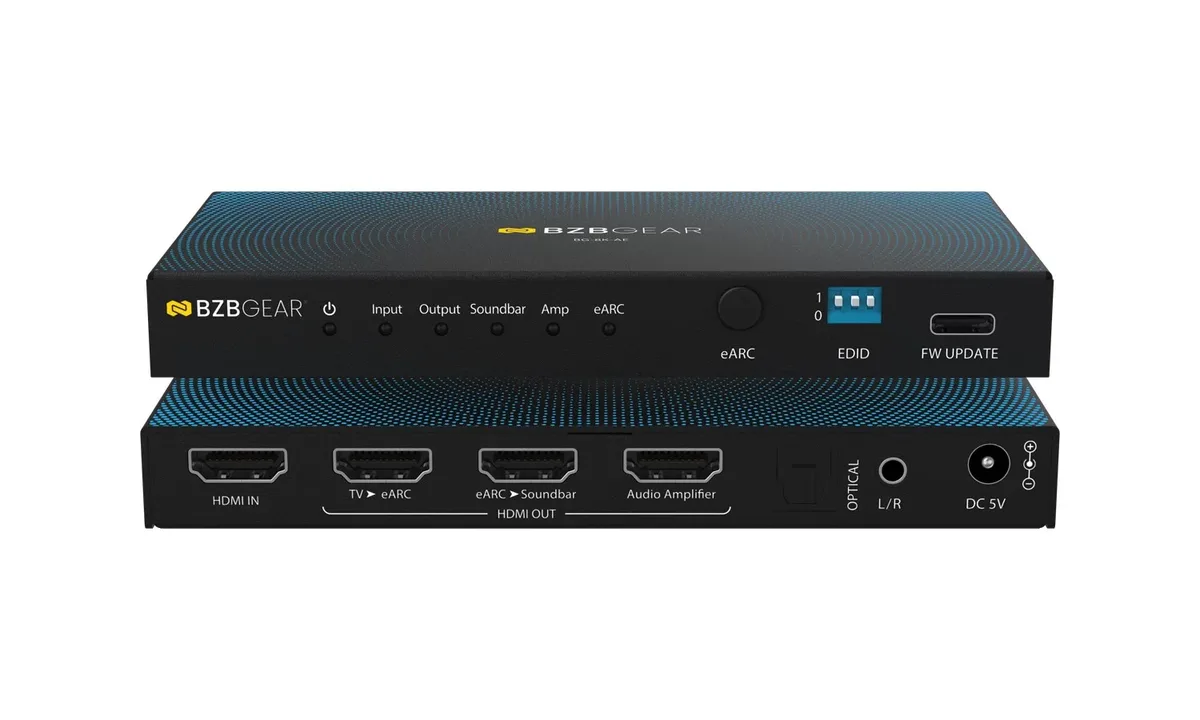

BZBGear BG-8K-AE eARC Audio Adapter with CEC and EDID Control

The BG-8K-AE extracts audio from an HDMI source or from a TV's ARC or eARC return, then sends it out over HDMI, digital S/PDIF or analog stereo depending on what the sound system accepts. Video passes at up to 8K60 4:2:0 12-bit and 4K120 4:4:4 12-bit on 48 Gbps.

EDID management, cable equalization and CEC are built in, so the TV remote still controls volume and the source is told what the display can actually take. HDR10, HDR10+, Dolby Vision and HLG pass through, along with VRR, ALLM, QMS, QFT and SBTM.

HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	48Gbps FRL and 18Gbps TMDS/strong
Video Resolution	Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
Input	1 x Source IN [HDMI Type A, 19-pin female]

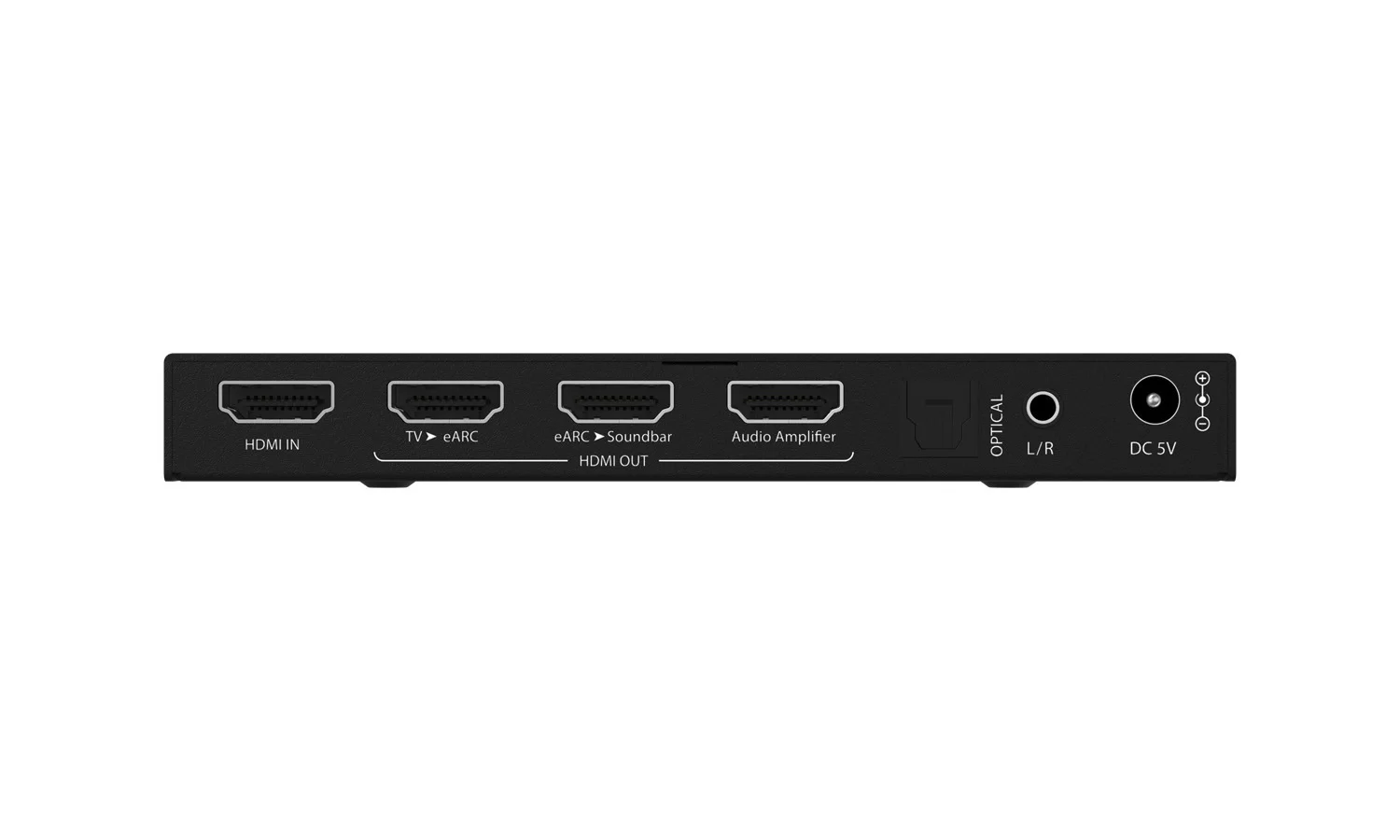

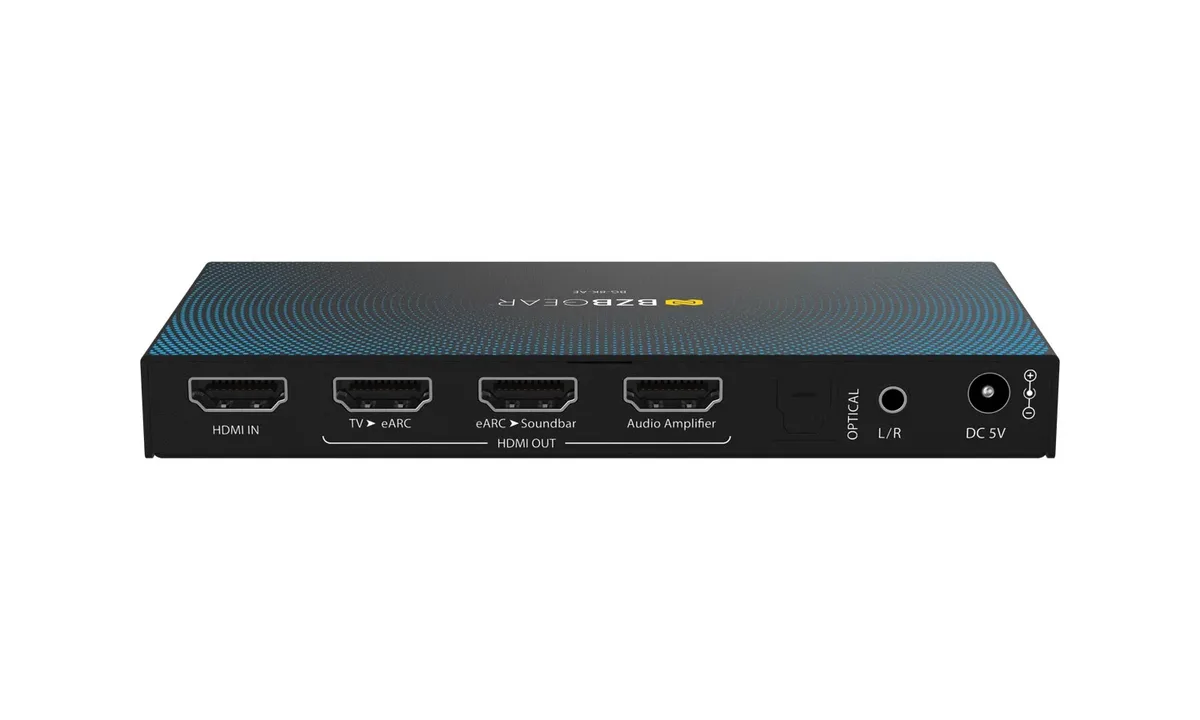

Output	1 x TV(eARC) OUT [HDMI Type A, 19-pin female] 1 x Soundbar eARC OUT [HDMI Type A, 19-pin female] 1 x Amp AUDIO OUT [HDMI Type A, 19-pin female] 1 x OPTICAL [S/PDIF] 1 x L/R [3.5mm Stereo Mini-jack]
Audio Formats	HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X eARC AUDIO OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X Amp AUDIO OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Au...
Color Depth	8/10/12-bit
