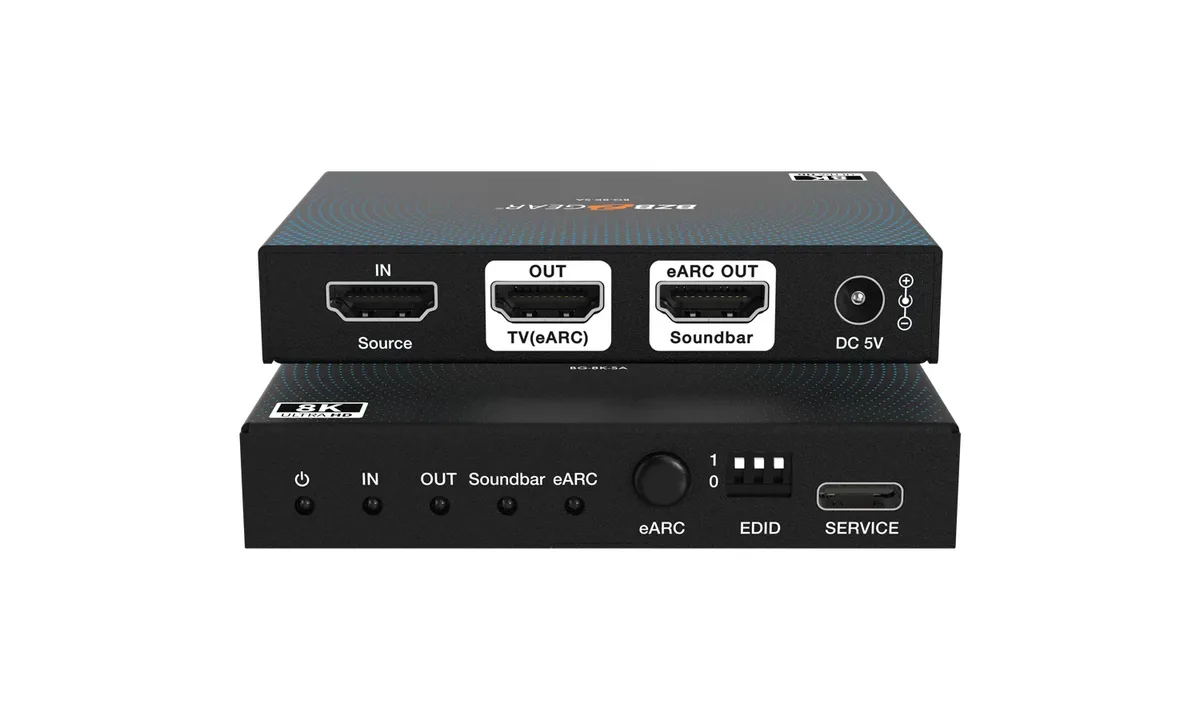

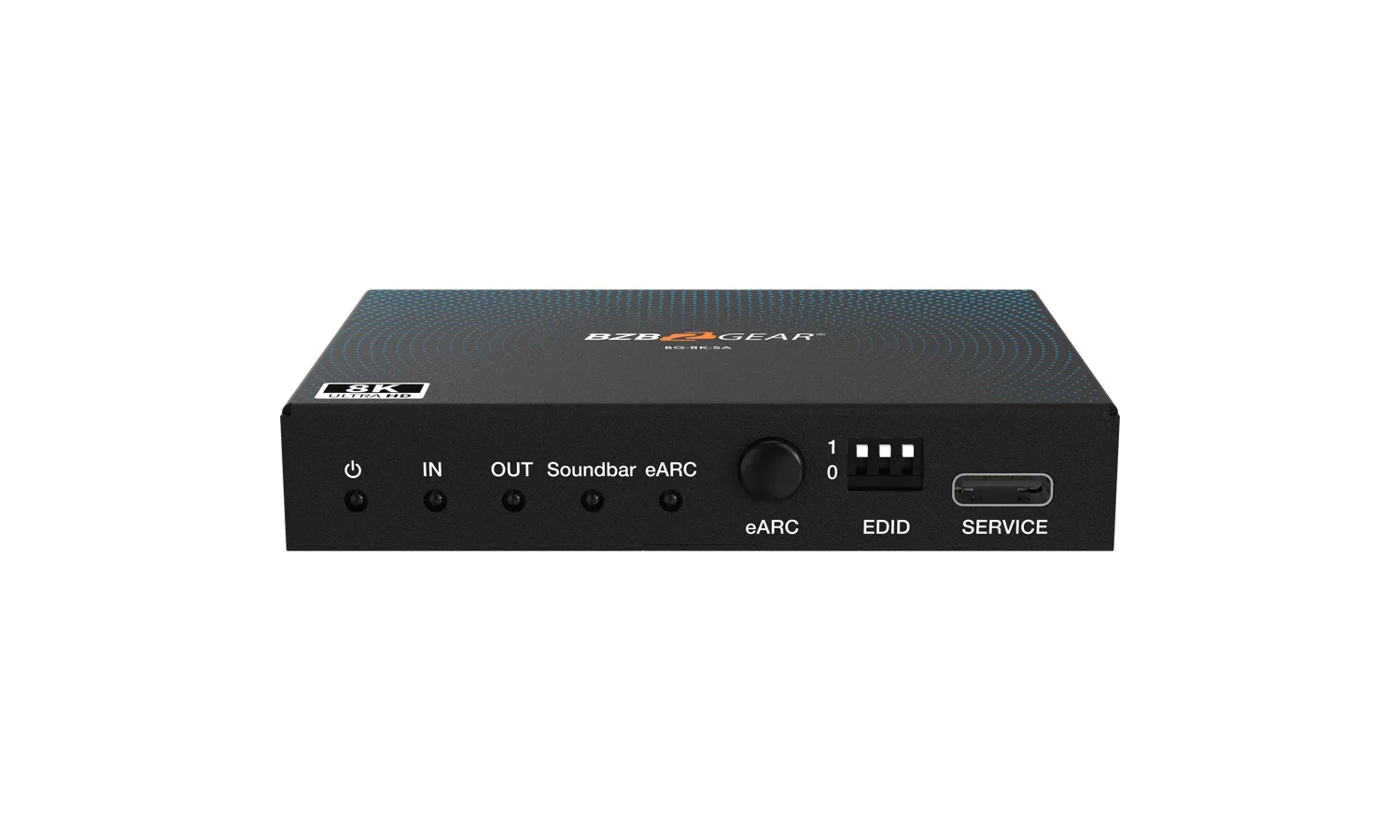

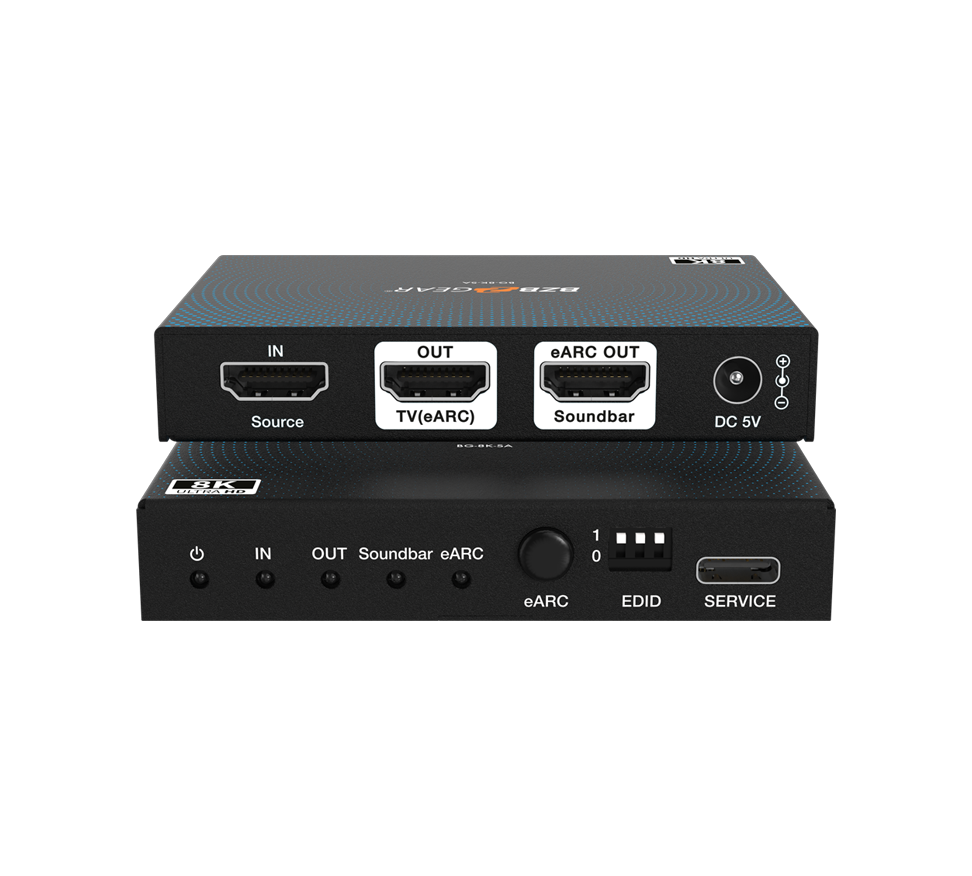

BZBGear BG-8K-SA eARC Audio Adapter for Soundbars

The BG-8K-SA extracts audio from an HDMI source or from a TV's ARC or eARC return and outputs it on an HDMI port intended for a soundbar. Video continues to the display at up to 8K60 4:2:0 12-bit or 4K120 4:4:4 12-bit on 48 Gbps FRL.

Extraction is done in hardware with no added audio or video latency, and the full audio set including Dolby Atmos and DTS-HD Master Audio survives. VRR, ALLM, QMS, QFT and SBTM pass through along with HDR10, HDR10+, Dolby Vision and HLG.

HDMI Compliance	HDMI 2.1
HDCP Compliance	HDCP 2.3
Video Bandwidth	48Gbps FRL and 18Gbps TMDS
Video Resolution	Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit

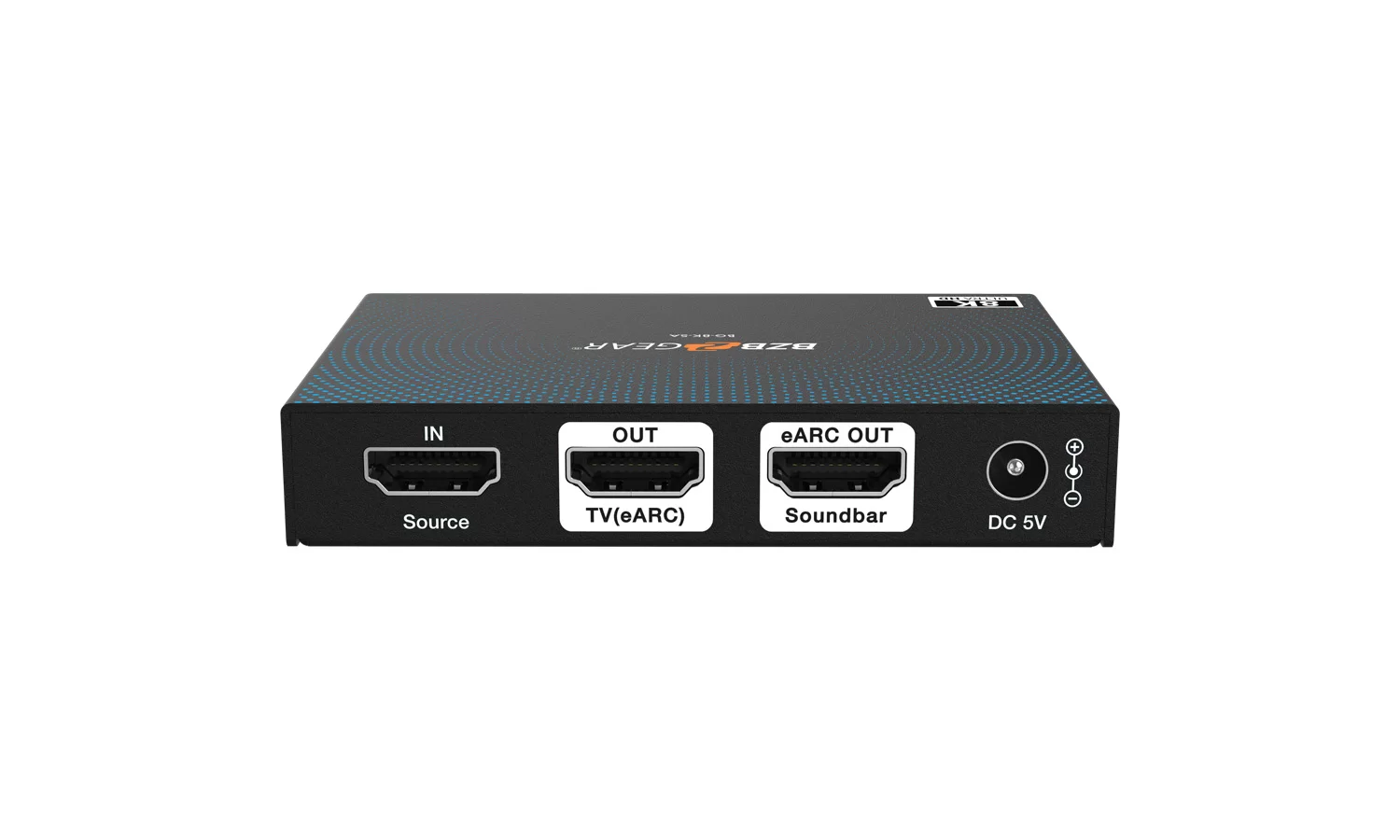

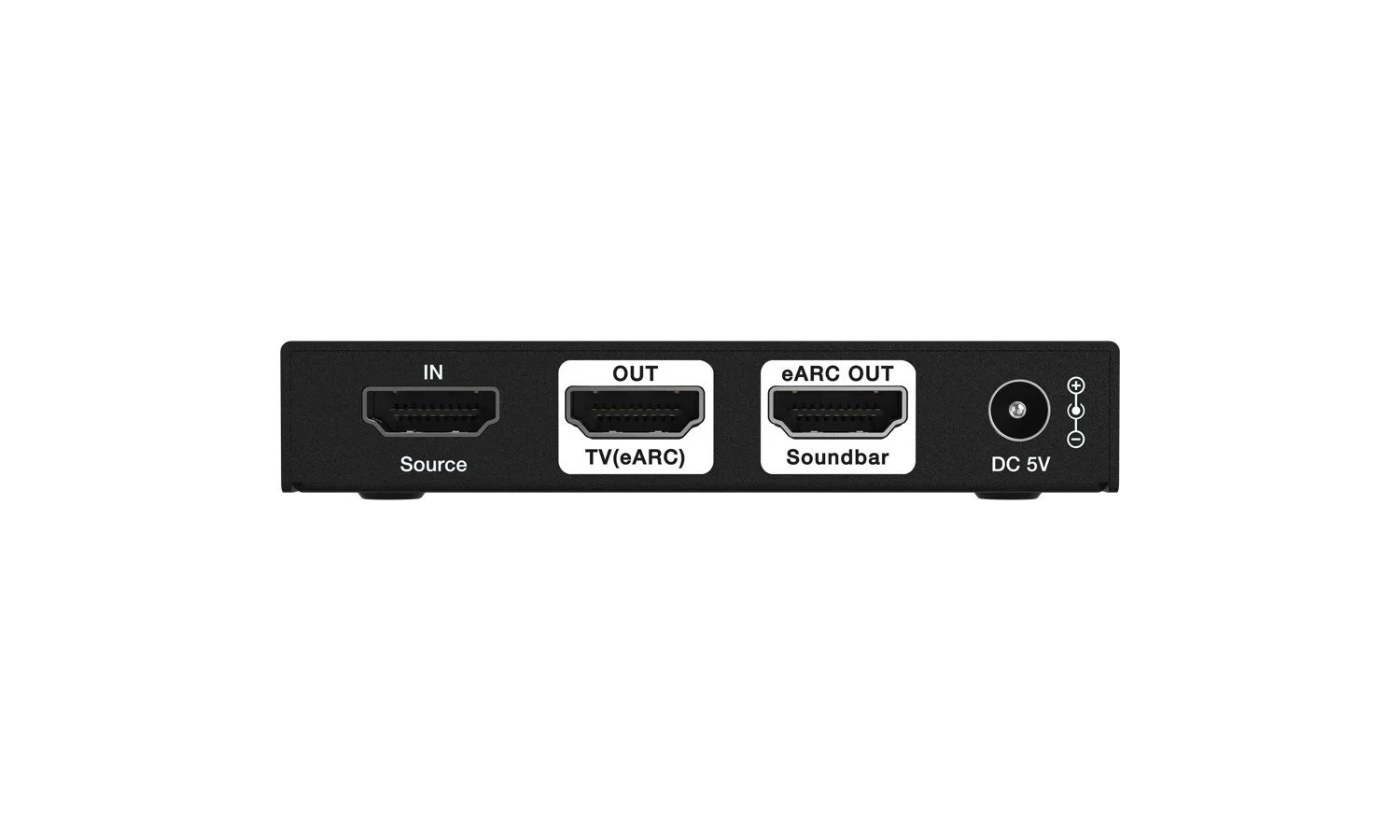

Input	1 x Source IN [HDMI Type A, 19-pin female]
Output	1 x TV(eARC) OUT [HDMI Type A, 19-pin female] 1 x Soundbar eARC OUT [HDMI Type A, 19-pin female]
Audio Formats	HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X eARC AUDIO OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X
Color Depth	8/10/12bit
