Blackmagic Decklink 8K Pro Mini

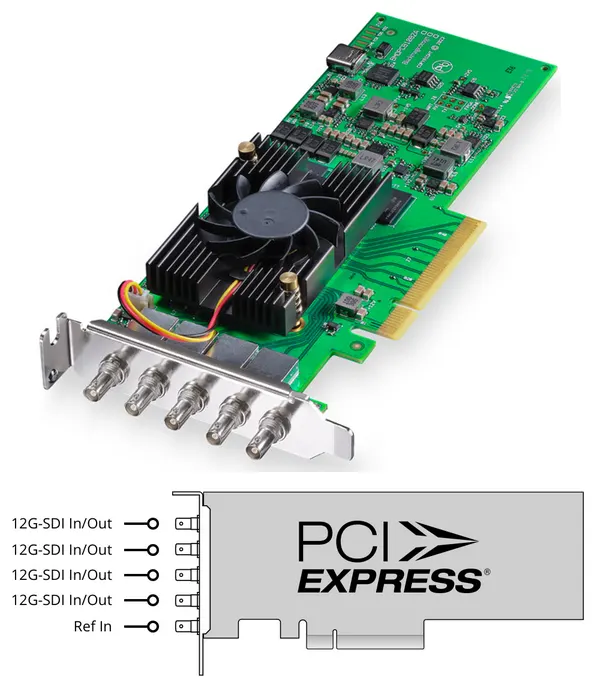

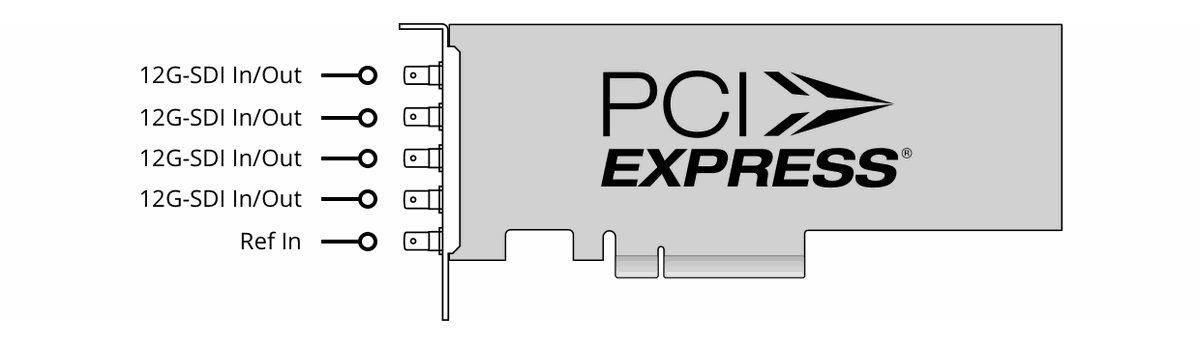

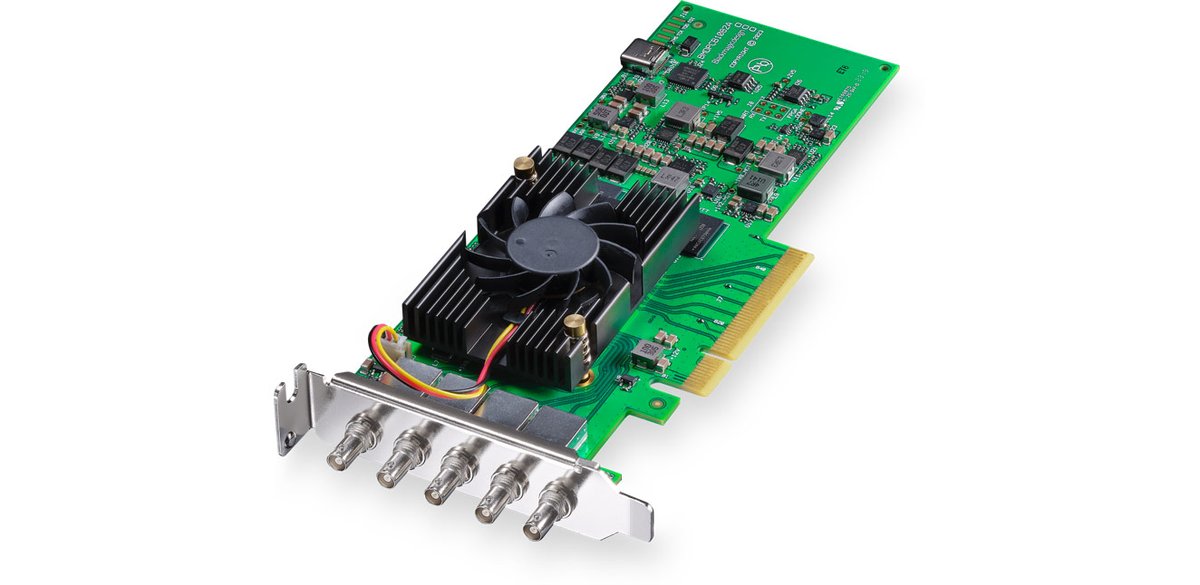

The Blackmagic DeckLink 8K Pro Mini is a low-profile PCIe capture and playback card with four bidirectional, independent 12G-SDI connections on Micro BNC. Those four connections can be configured as inputs or outputs and cover every standard from SD and HD through Ultra HD, 4K DCI, 8K and 8K DCI, making the card equally at home digitizing legacy tape and mastering a high-frame-rate 8K feature.

Image quality is uncompromising: the card supports high frame rate video, 12-bit RGB 4:4:4 and full Rec. 2020 color, with 16 channels of embedded audio per SDI connection for up to 64 channels total. It connects to the host over PCI Express 8-lane and is compatible with 8 and 16 lane PCI Express slots. It ships as part number BMD-BDLKHCPRO8K12GMINI.
