Audinate Dante AVIO Analog Output Adapter

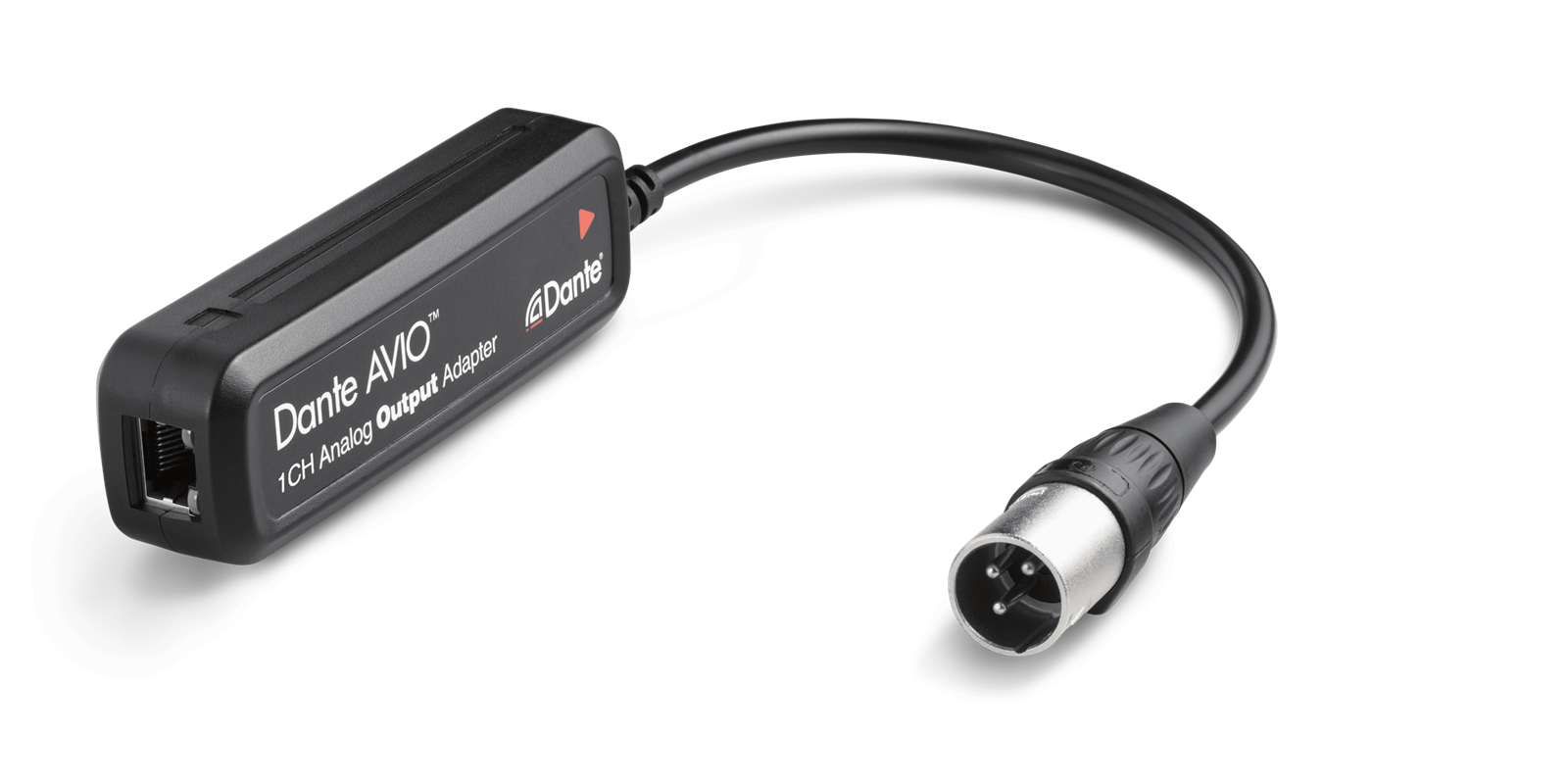

The Dante AVIO analog output adapter is the counterpart to the input version: an RJ45 in, a male XLR out, and any subscribed Dante channel becomes a balanced analog line feed for a powered speaker, an amplifier input, or a recorder. It is the practical way to add an overflow room, a lobby speaker, or a press feed to an existing Dante system without running new analog snake or adding a rack box.

Output runs at up to 24-bit / 96 kHz with a 20 Hz to 20 kHz response within 0.5 dB, more than 100 dB of dynamic range and signal-to-noise, and distortion below 0.01 percent at +4dBu. Maximum balanced level is selectable at +18dBu, +4dBu, or 0dBu, with 150 ohm balanced / 75 ohm unbalanced output impedance. Power is Class 1 802.3af PoE over the same cable as the audio, and the adapter supports AES67 for non-Dante networks and Dante Domain Manager for IT-level control.
