Aviom D800 A-Net Distributor
The D800 links the source of the channels, whether that is a Dante network, an Aviom input module, or a console card, to the personal mixers on stage, sending 24 VDC and the A-Net audio stream down each Cat-5e run. It carries up to 64 channels, and every one of its eight front-panel outputs uses a locking RJ45, which is the difference that matters in a rack that gets loaded in and out every week.

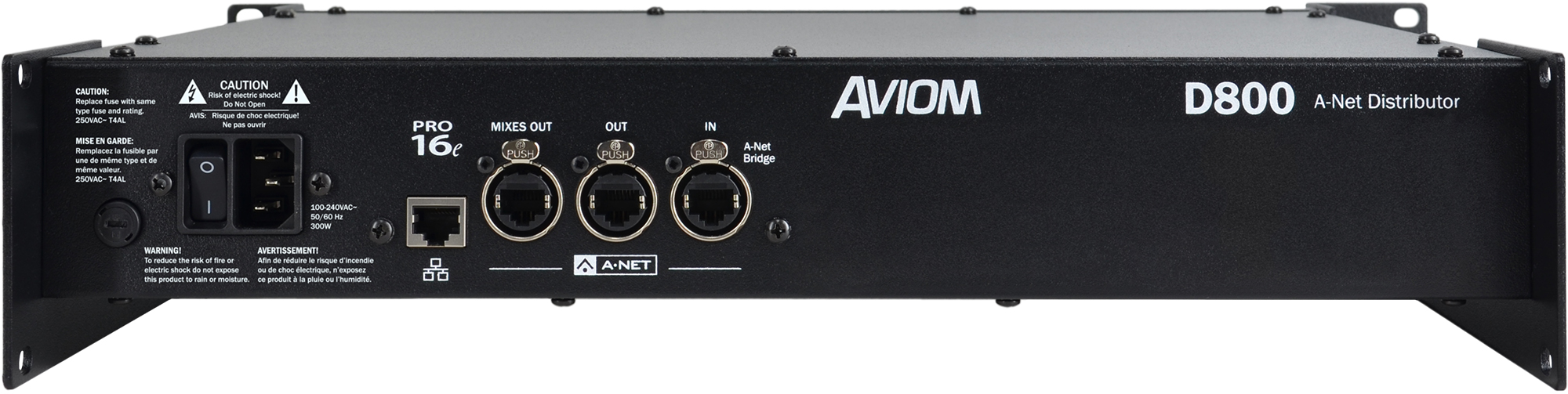

A ninth unpowered locking RJ45 on the rear expands to a second distributor. The D800-Dante version adds locking primary and secondary Dante inputs so the unit hangs directly off a Dante network. Both are 2U at 19 x 14.25 x 3.5 inches, 12 lbs, and run from a universal 100 - 240 VAC supply rated 300 W.
| A-Net Outputs (front) | Eight locking RJ45 connectors, powered |
|---|---|
| A-Net Input | One locking RJ45 connector |
| A-Net Output (rear) | One locking RJ45 connector, unpowered |
| Channel Support | Up to 64 channels |
| Dante (D800-Dante) | Locking RJ45 primary and secondary inputs |
| Power to Mixers | 24 VDC, 0.5 A |
| Format | 2U, 3.5 in high |
| Dimensions | 19 in wide x 14.25 in deep |
| Weight | 12.0 lbs (5.44 kg) |
| Power Input | 100 - 240 VAC, 50 - 60 Hz, 300 W |
