AtlasIED TSD-TXHL High / Low Level Converter

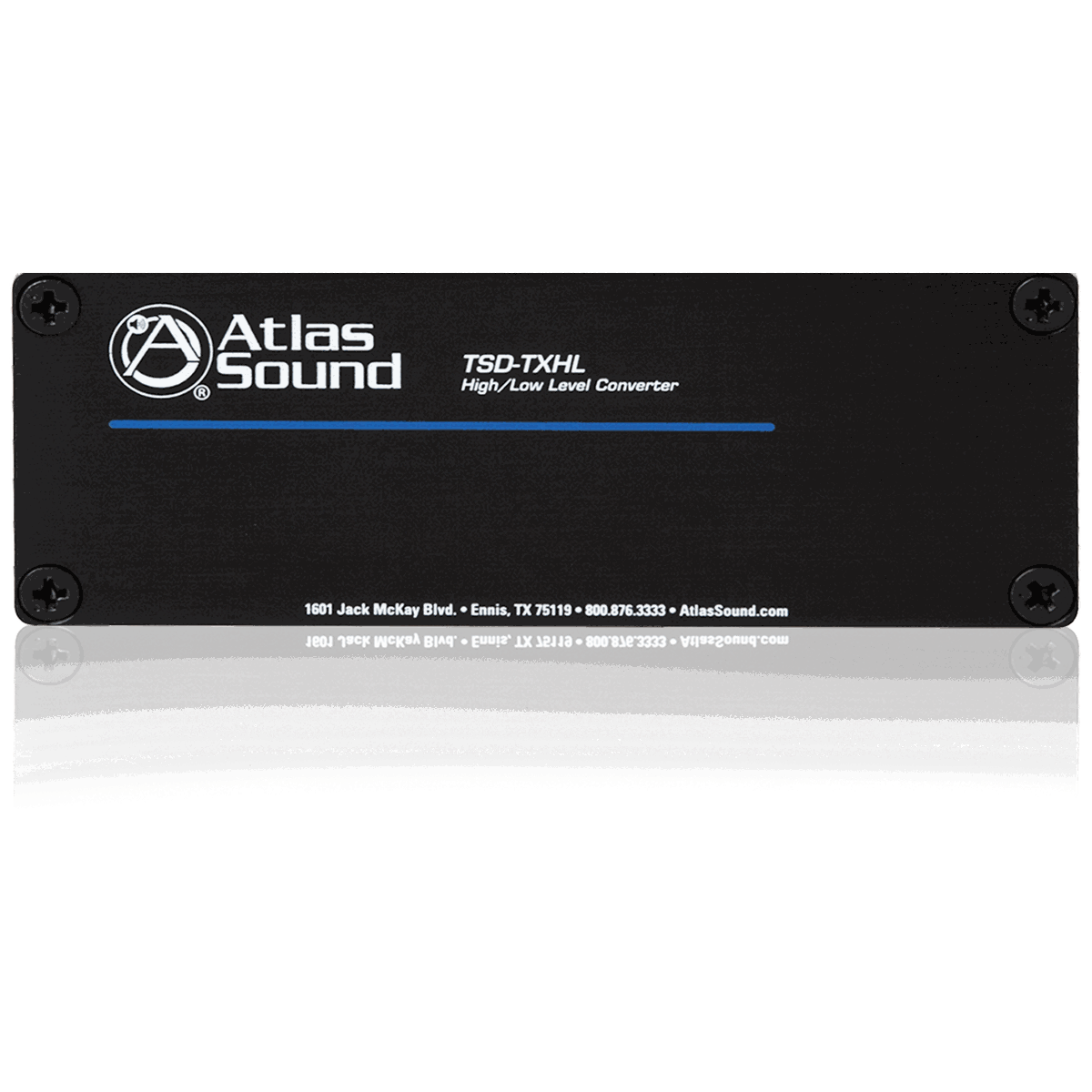

The AtlasIED TSD-TXHL is a high / low level converter. The TSD-TXHL is a high to low level converter designed to interface with 4Ω/25/70/100V distributed speaker lines. An unbalanced line level output is provided to drive remote amplifiers or other devices. Published frequency response is 40Hz - 25kHz.

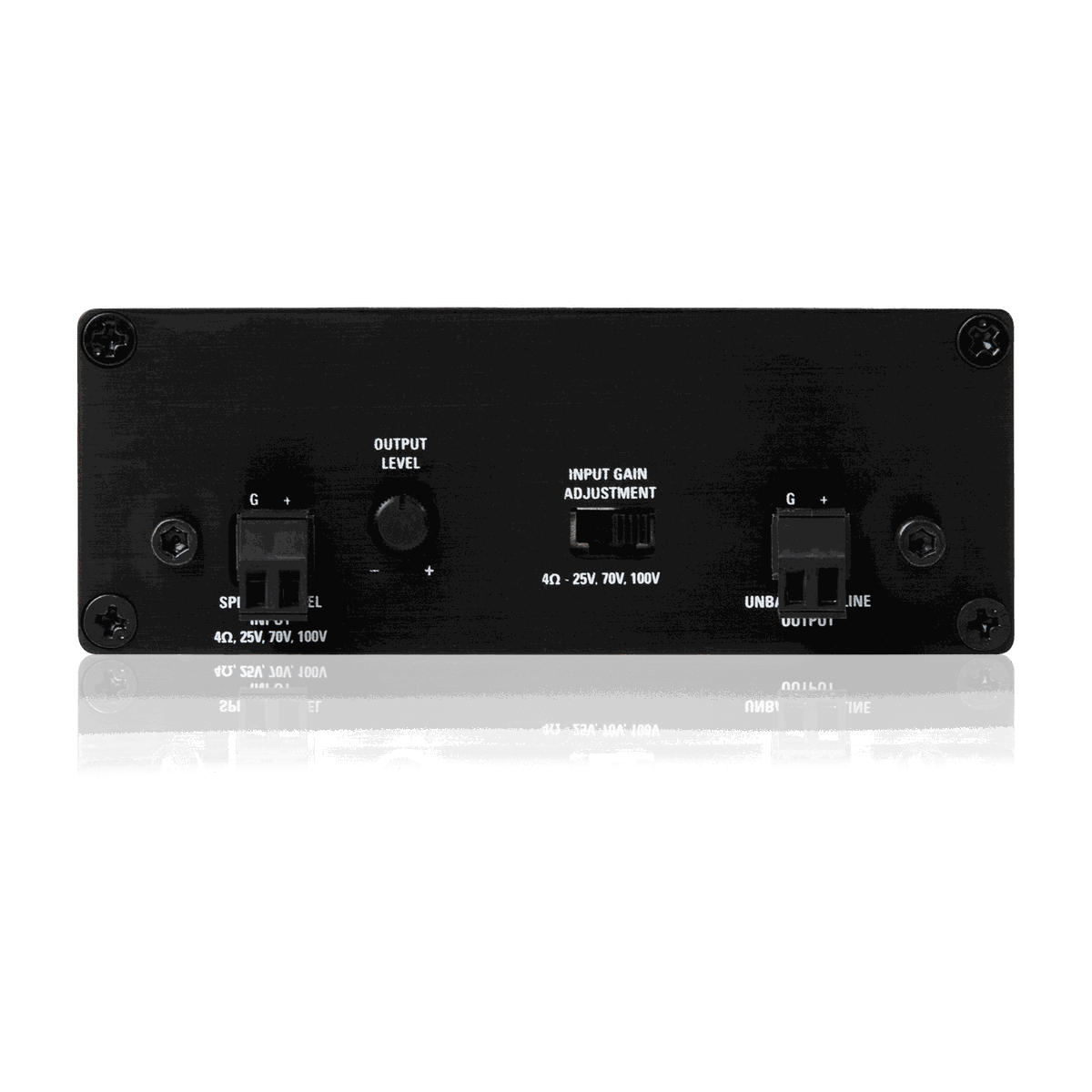

The TSD-TXHL allows easy expansion of zones without the need for dedicated wiring to remote locations. The high to low-level converter features an isolated transformer, which will not add measurable load to the speaker line. AtlasIED lists tap into 4Ω/25/70/100V speaker lines to interface with remote amplifiers; input gain adjustment switch; trim level control; isolated transformer. It measures 1.5" high, 4" wide, and 2.5" deep. It carries a manufacturer warranty of 36 months from date of purchase.

Part Number	TSD-TXHL
High Level Input	Amplifier Speaker Outputs 4Ω, 8Ω, 25V, 70V and 100V
Output impedance	600Ω Unbalanced
Line Output Level	Max Output 500mV
Frequency Response	40Hz - 25kHz
Height	1.5" (3.81 cm)
Width	4" (10.16 cm)
Depth	2.5" (6.35 cm)
Weight	6oz., .165kg
Warranty Period	36 months from date of purchase
