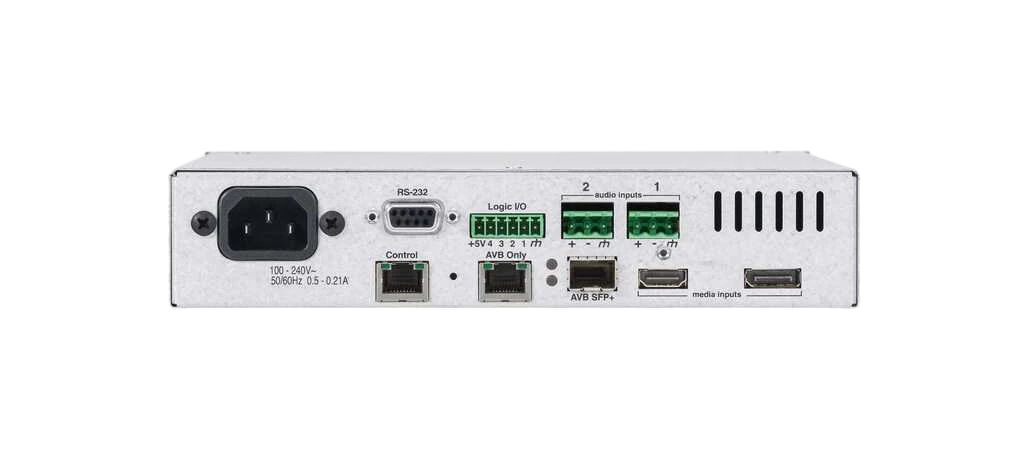

Biamp TesiraLUX IDH-1 Video Processor

The Biamp TesiraLUX IDH-1 is a video processor built for sight and sound reinforcement systems.

Power handling is rated at Current Draw (100-240VAC 50/60Hz): 0.5-0.21A. Control connection is RJ-45 with Ethernet cable (Cat 5e and above).

Power	Current Draw (100-240VAC 50/60Hz): 0.5-0.21A
Crosstalk	Channel to channel 1kHz = 0dB gain; +4dBu input: < -85dB; 54dB gain; -50dBu input: < -75dB
Control	RJ-45 with Ethernet cable (Cat 5e and above)
Ambient Operating Temperature Range	32 - 104 deg F (0 - 40 deg C)
Humidity	0-95% relative humidity (non-condensing)
Altitude	0-6,600 ft (0-2000m) MSL
Dimensions (H x W x D)	1.75 inches (44 mm) x 8.5 inches (216 mm) x 10.4 inches (264 mm)
10 Gb	10G fiber SFP+
