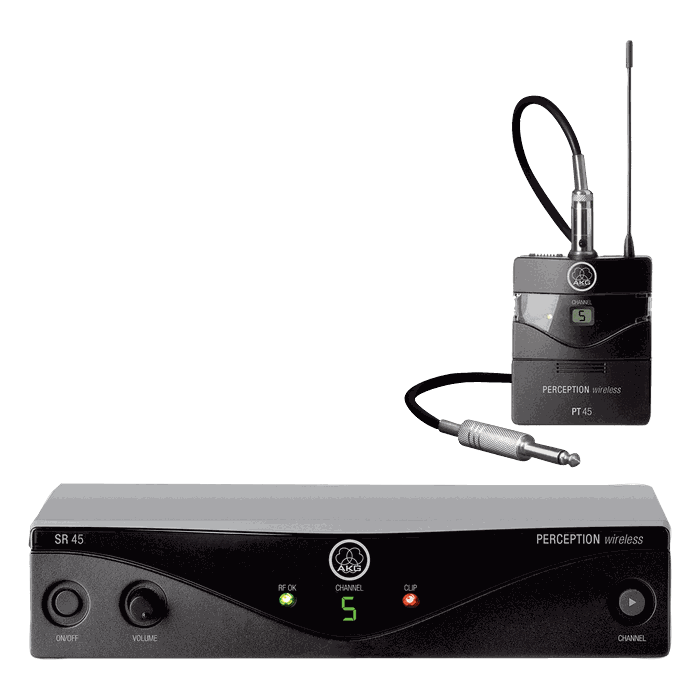

AKG Perception Wireless 45 Instrumental Set PT45 Bodypack With The MKG L Guitar

The Perception Wireless 45 Instrumental Set is the guitar and bass configuration of AKG's entry-level professional UHF system. The PT45 bodypack is the smallest and lightest transmitter in its class, and its professional three-pin mini XLR takes the supplied MKG L instrument cable or, later, any AKG miniature microphone, so the same pack can be re-tasked to a presenter without buying a second transmitter.

Operation stays deliberately simple: eight fixed frequencies, five recommended simultaneous channels, a gain control on the pack and an adjustable squelch on the receiver. The SR45 runs space diversity and provides both a balanced XLR and an unbalanced 1/4 inch output adjustable from mic to line level, and a universal switched-mode power supply ships in the box. One AA cell runs the transmitter up to 14 hours.

TypeUHF wireless system, bodypack transmitter + diversity receiver
Carrier Frequency Range500 - 865 MHz
Audio Frequency Bandwidth40 - 20,000 Hz
THD at 1 kHztyp. 0.8%
Signal to Noise Ratiotyp. 105 dB(A)
Frequency Selection8 fixed frequencies; 5 recommended simultaneous channels; 30 MHz switching bandwidth
Transmitter Input3-pin mini XLR (female), max. audio level 12 dB
IncludedSR45 receiver, PT45 bodypack, MKG L instrument cable, universal power supply
