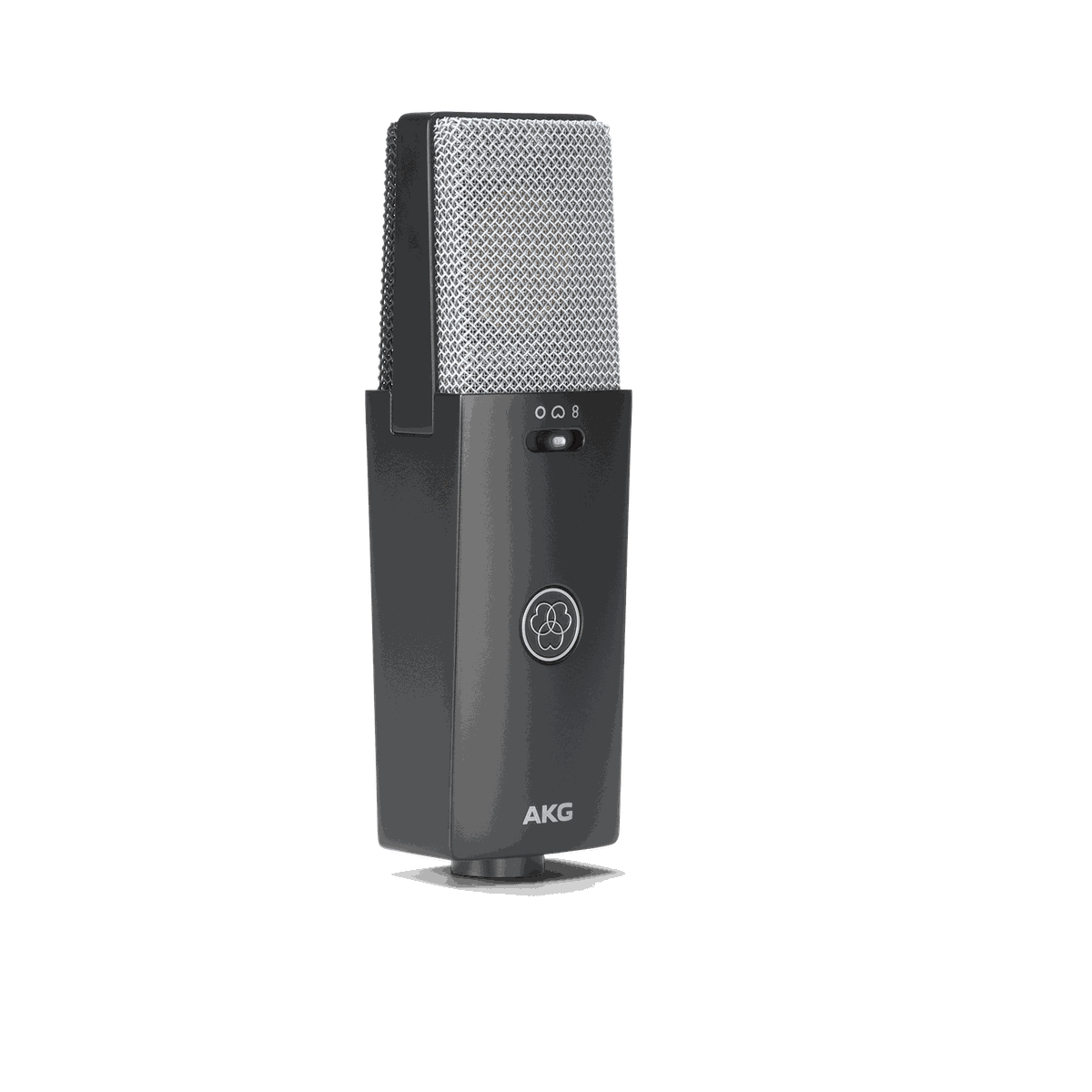

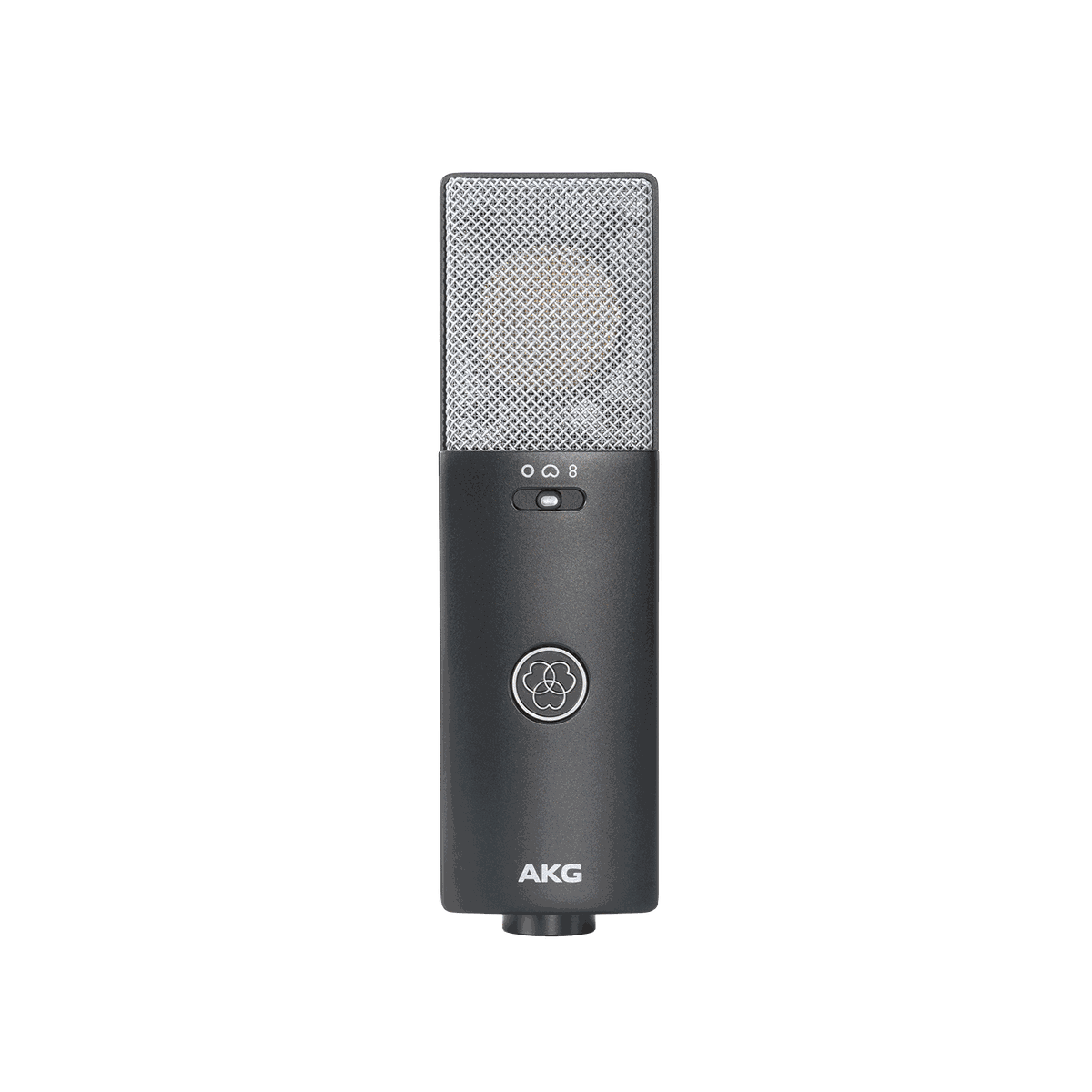

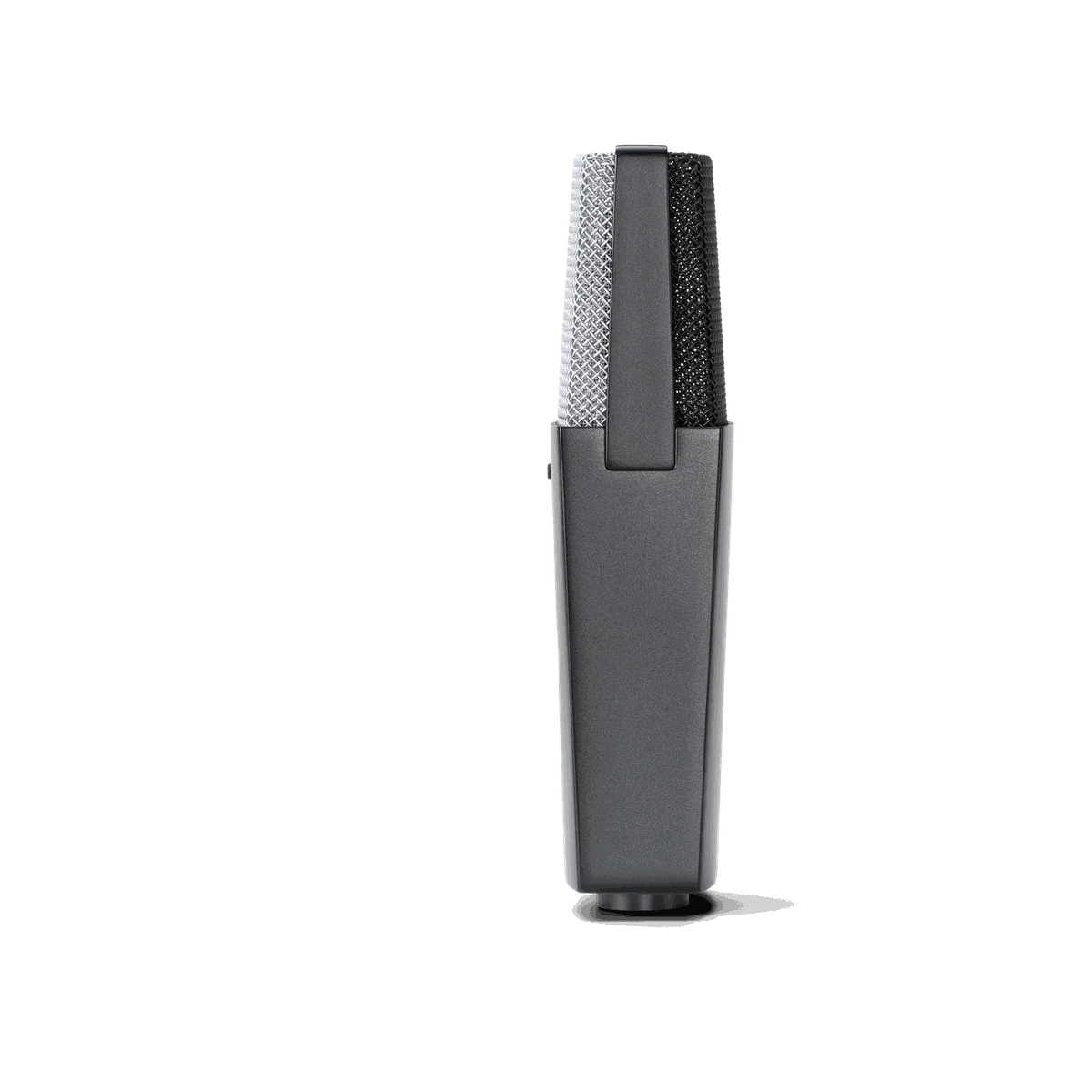

AKG C114 Large-Diaphragm Multi-Pattern Condenser Microphone

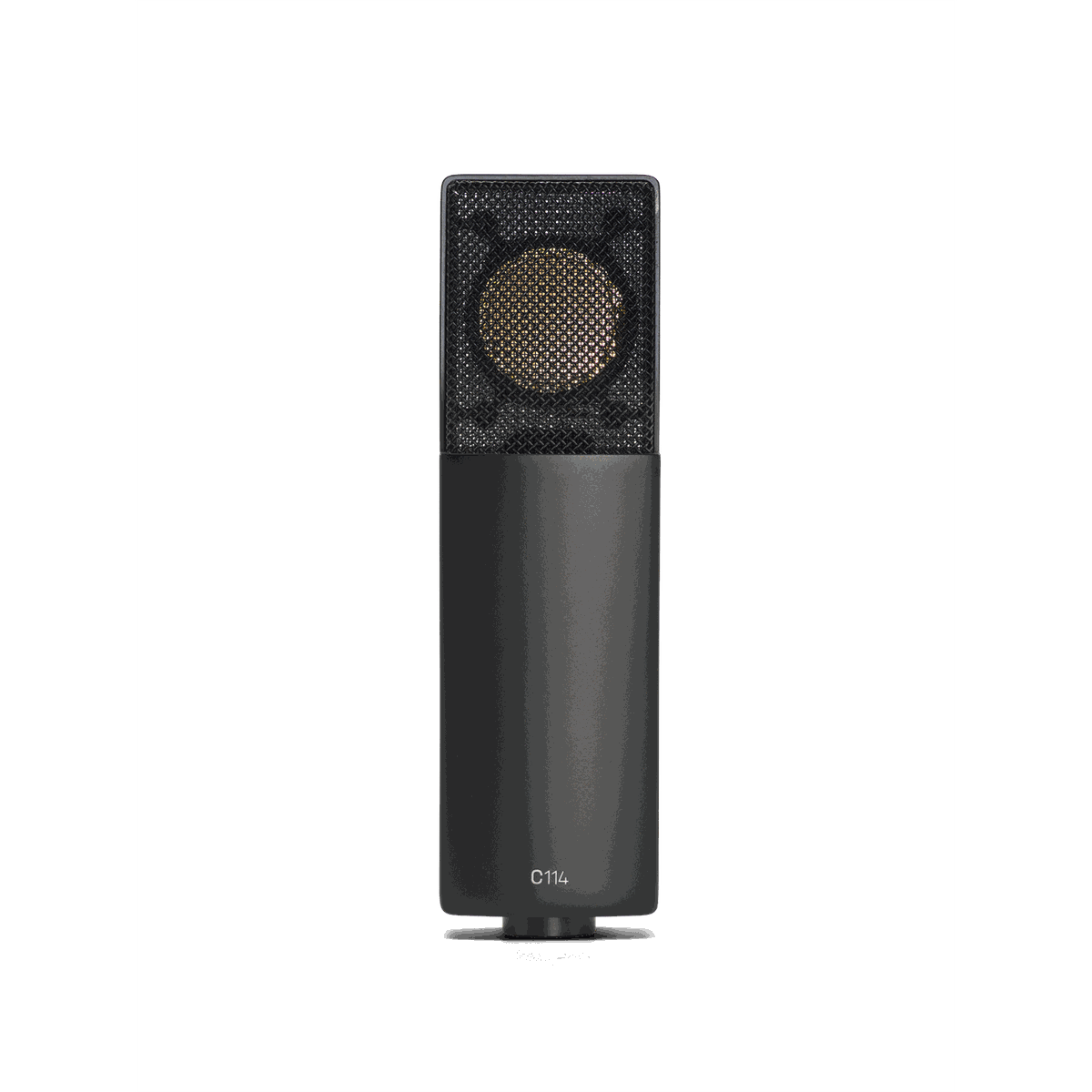

The C114 steps up from a single-pattern condenser with a 26mm dual-diaphragm capsule offering cardioid, omnidirectional, and figure-of-eight patterns, so one microphone covers solo vocals, room ambience, and interview or duet setups. The edge-terminated capsule design is drawn from AKG's C12 and C414 reference microphones, giving it a smooth top end and balanced midrange.

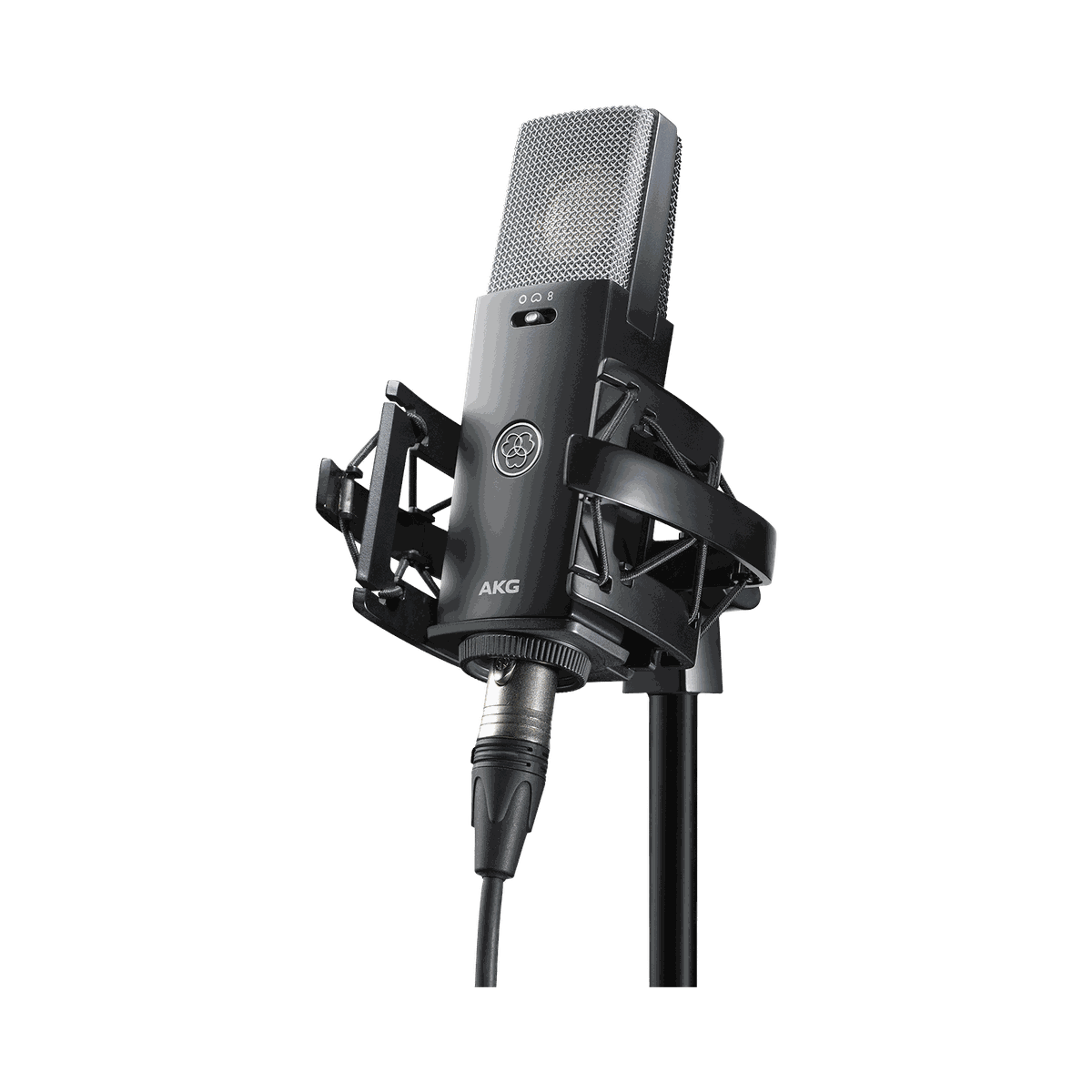

A transformerless FET circuit keeps self-noise low and dynamic range wide, and the body is machined from recycled metals and alloys. It runs on 48V phantom power over a standard 3-pin XLR output and ships with AKG's H84 shock mount.
| Capsule | 26mm dual-diaphragm, true condenser pressure gradient |
|---|---|
| Polar Patterns | Cardioid, omnidirectional, figure-of-eight |
| Frequency Response | 20 - 20,000 Hz |
| Sensitivity | 13.5 mV/Pa (-37.4 dBV, cardioid) |
| Self-Noise | 12 dB(A) SPL |
| Max SPL | 145 dB SPL (0.5% THD) |
| Phantom Power | 48V +/-4V per IEC 61938 |
| Includes | H84 shock mount |
