AKG C214 Large-Diaphragm Condenser Microphone

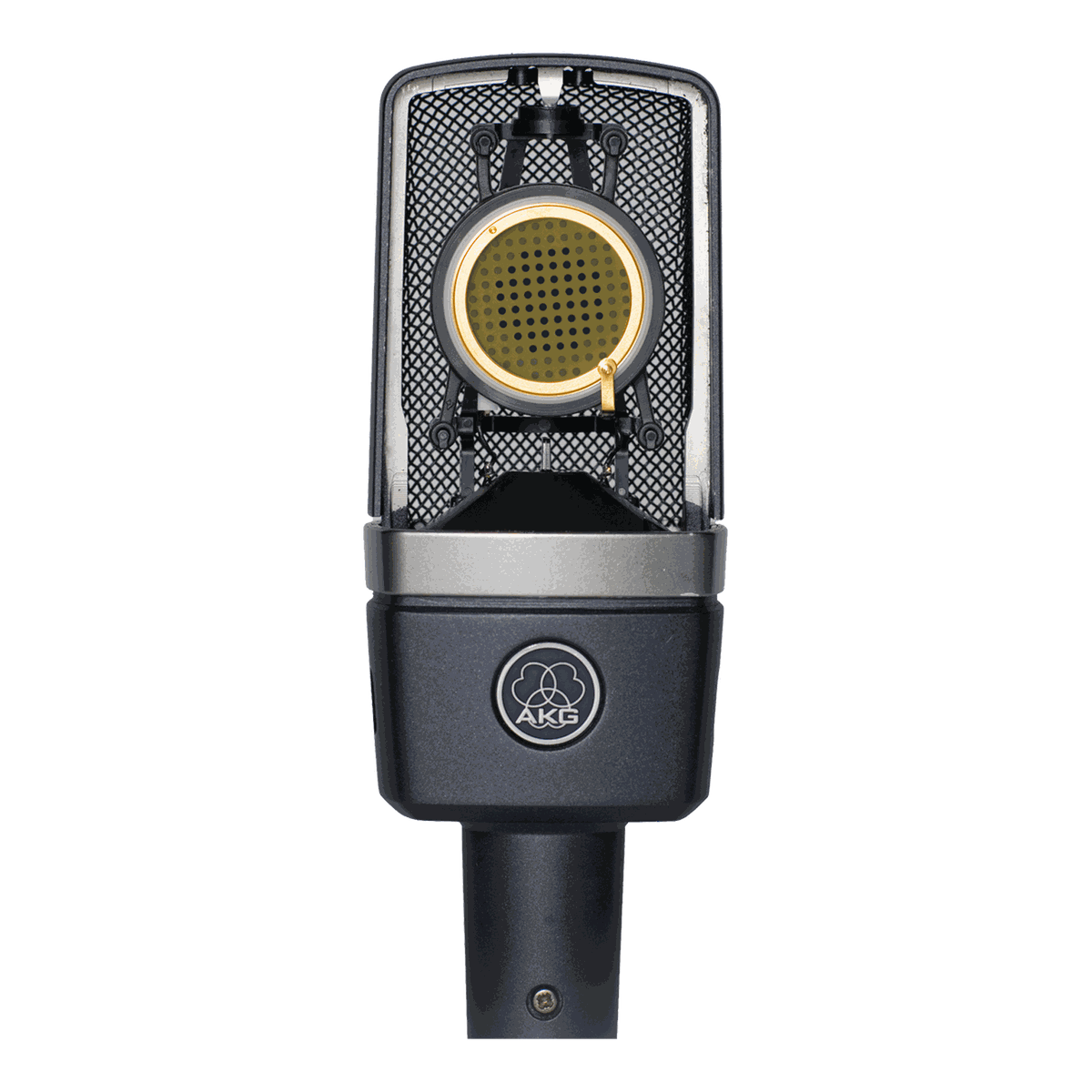

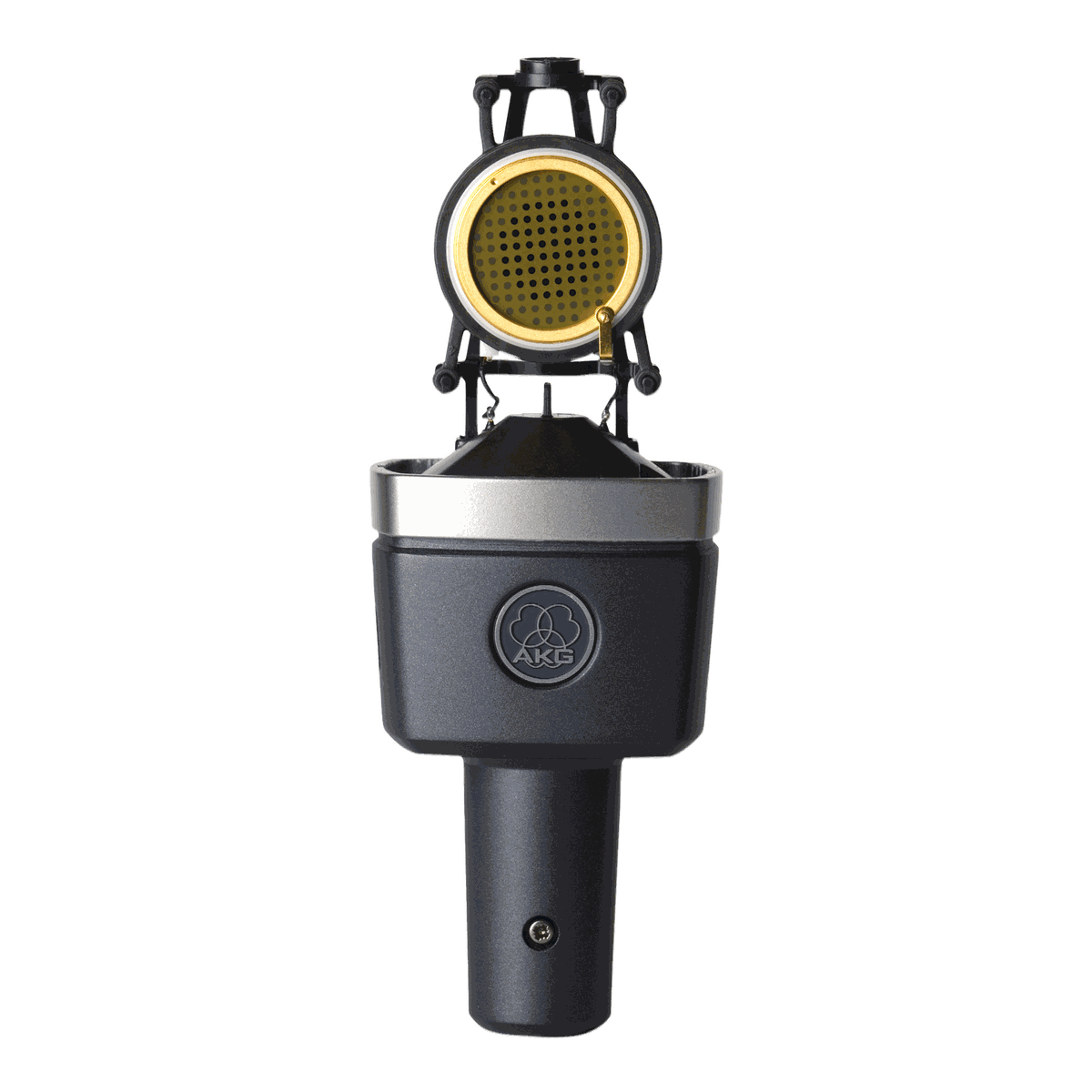

The C214 is a professional large-diaphragm condenser built as a cost-effective route into the C414 sound. It uses one capsule of the C414 dual-capsule system on an integrated suspension that keeps mechanical and handling noise low, giving vocals, acoustic guitar, piano, and drum overheads the detail and open top end a one-inch capsule delivers.

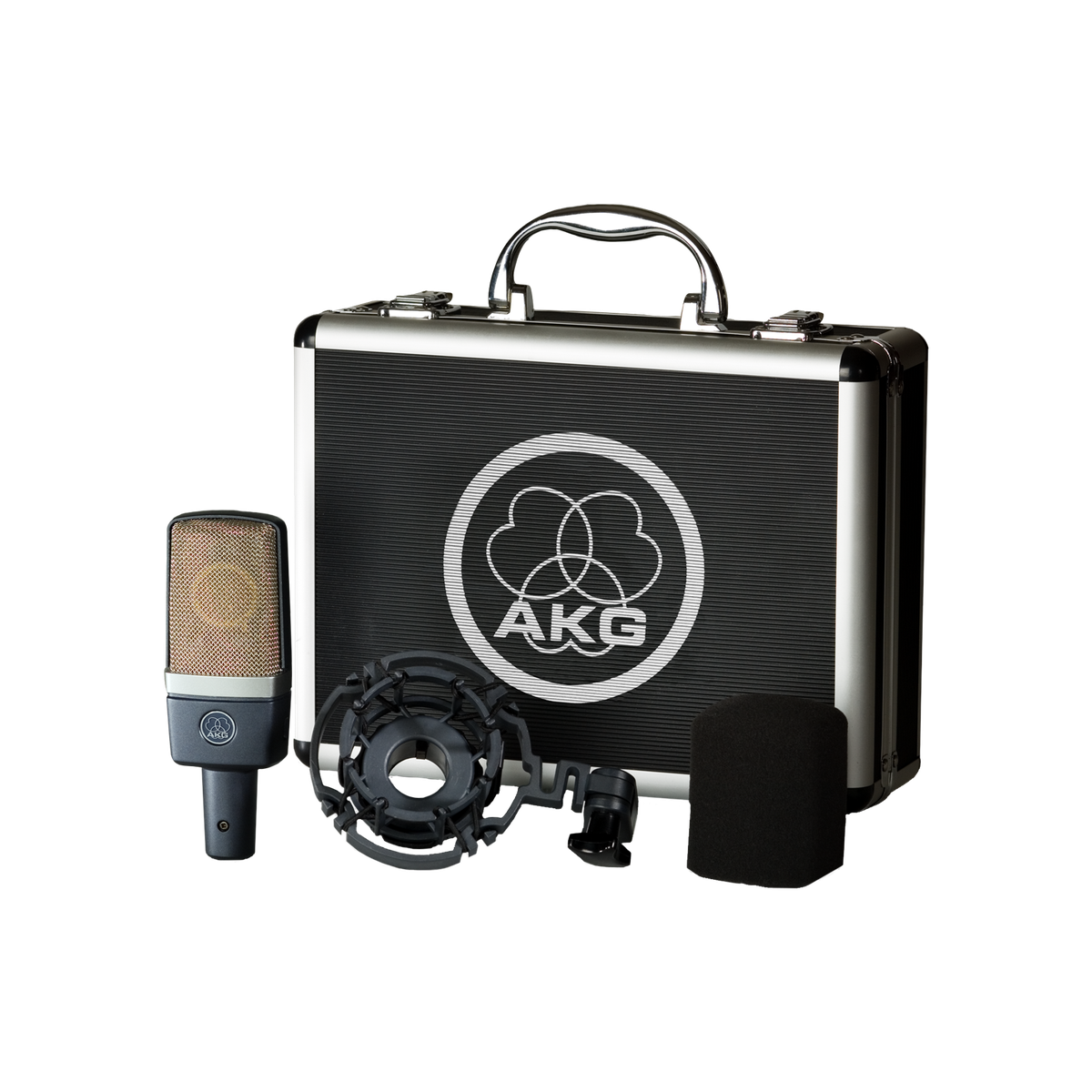

A switchable 20 dB attenuation pad lets it sit in front of sources up to 156 dB SPL without overloading, and a switchable 160 Hz bass-cut filter tames proximity effect and rumble on close work. The fixed cardioid pattern rejects off-axis spill on a busy stage or a tight studio. It ships with the H85 shock mount and a metal carrying case; the matched pair adds a second factory-selected mic for stereo work.
| Type | Large-diaphragm condenser |
|---|---|
| Polar Pattern | Cardioid |
| Frequency Range | 20 - 20,000 Hz |
| Max SPL | 136 / 156 dB (0 / 20 dB pad) |
| Equivalent Noise Level | 13 dB-A |
| Sensitivity | 20 mV/Pa |
| Pad / Bass-Cut | -20 dB pad; 160 Hz switchable low-cut |
| Output | 3-pin XLR, 48V phantom; includes H85 shock mount + case |
