AKG C414 XLII Reference Multi-Pattern Condenser Microphone
The C414 XLII is the reference multi-pattern large-diaphragm condenser, offering nine selectable polar patterns for exact control over pickup and room sound. Its slight presence lift and wide, three-dimensional imaging echo the legendary AKG C12 of 1953, which is why it is a first call for lead vocals, solo strings, and any source that needs to sit forward in a mix.

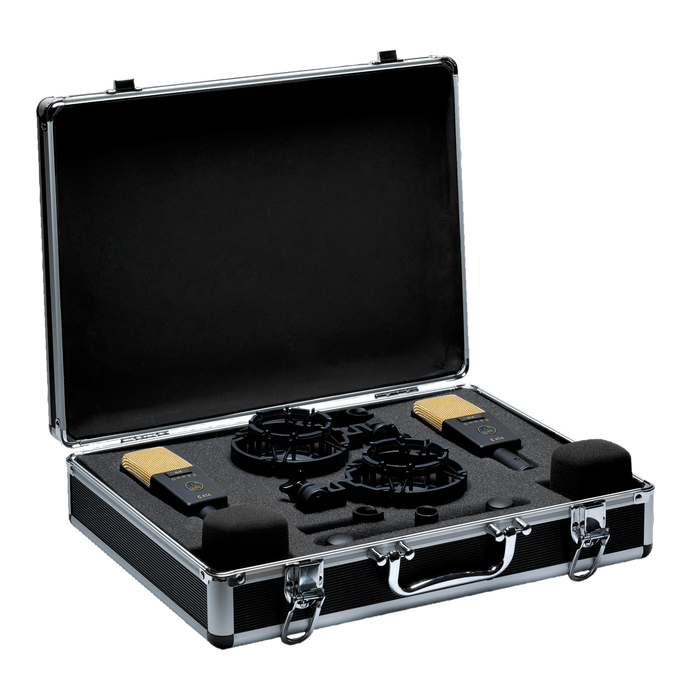

Three switchable attenuation levels and three bass-cut filters extend its range from whisper-quiet detail to loud close sources, and a peak-hold LED flags even the briefest overload. All controls can be locked out for live sound and permanent installs. The stereo set pairs two factory-matched microphones with a stereo bar and case for coincident and spaced recording.
| Type | Large-diaphragm reference condenser |
|---|---|
| Polar Patterns | Nine (Omni, Wide Cardioid, Cardioid, Hypercardioid, Figure-of-eight + intermediates) |
| Frequency Range | 20 - 20,000 Hz |
| Equivalent Noise Level | 6 dB-A |
| Sensitivity | 23 mV/Pa |
| Pad / Bass-Cut | -6 / -12 / -18 dB pad; 160 / 80 / 40 Hz low-cut |
| Powering | 44 - 52 V phantom, 4.5 mA |
| Output | 3-pin XLR; single includes H85 mount, PF80 pop filter, W414 windscreen, case |
