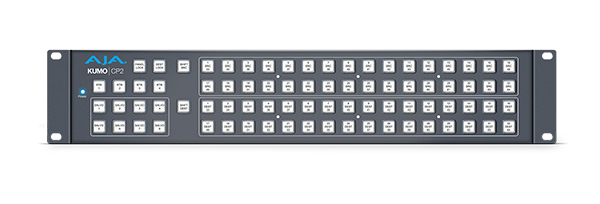

AJA KUMO CP2 2RU Router Control Panel

The KUMO CP2 is a 2RU hardware control panel for KUMO routers, giving operators a wall of physical buttons instead of a browser tab. Eighty buttons select up to 64 sources and 64 destinations on each of up to four routers, and the panel works with any KUMO including the 6464. It connects over Ethernet to the same network as the routers, so full control runs from any location without a computer in the loop.

The panel supports ganged dual and quad port routing for Dual Link, 4K, and UltraHD groups, and its buttons recall stored salvos in a single press. An embedded web server rides on the RJ-45 gigabit Ethernet port, a mini-USB port handles IP setup through AJA eMini-Setup, and the included supply powers the unit at 10 to 14V DC.

Type	2RU hardware control panel for KUMO routers
Buttons	80, with high/low tally and configurable brightness
Capacity	Up to 64 sources and 64 destinations per router, up to 4 routers
Network	1 x RJ-45 10/100/1000 Ethernet, embedded web server
Configuration	1 x mini-USB (AJA eMini-Setup)
Power	10-14V DC, 4 W typical (universal supply included)
Weight	2.1 lb (1.0 kg)
