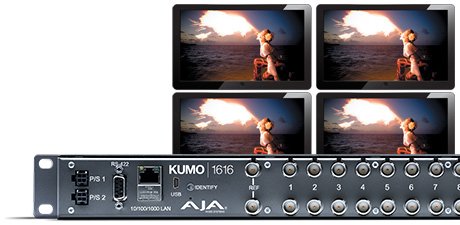

AJA KUMO 1616 Compact 1RU 16x16 3G-SDI Router

The AJA KUMO 1616 is a compact 1RU router that switches 16 SDI inputs to 16 SDI outputs, sized for tying cameras, monitors, editing systems, decks, and recorders into one workflow. It supports SD-SDI, HD-SDI, and 3G-SDI with quality that exceeds SMPTE specifications, and ganged dual and quad port routing lets you group connections for Dual Link and 4K/UltraHD signals.

Control needs no extra software: an embedded web server runs over 10/100/1000 Ethernet for browser control, and the router also answers to the KUMO CP and CP2 panels, GVG native protocol, and RS-232, with a USB port for setting the IP address through AJA's eMini-Setup. Up to eight salvos can be stored and recalled to switch multiple sources to destinations at once. The router ships with one power supply and accepts a second for redundancy.
