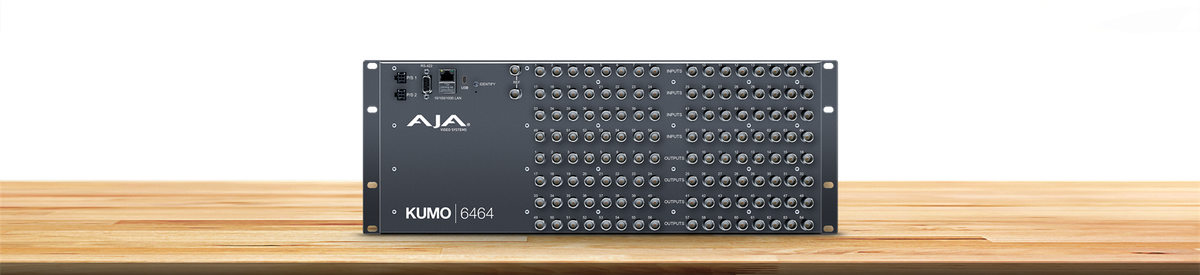

AJA KUMO6464 Compact 4RU 64x64 3G-SDI Router

The AJA KUMO 6464 is a compact router that switches 64 SDI inputs to 64 SDI outputs while holding a slim 4RU profile just 1.5 inches deep. It handles any SDI signal up to 3G-SDI, including single-link 1080p, high frame rate, and deep color formats, and its ganged dual and quad port routing groups connections for Dual Link and 4K/UltraHD workflows, all at quality that exceeds SMPTE specifications.

An embedded web server provides browser-based control over Ethernet with no added software, and the router also works with the KUMO CP and CP2 panels, GVG native protocol, and RS-232, plus a USB port for IP setup through AJA's eMini-Setup. Up to eight stored salvos recall multiple source-to-destination changes in one step. The router ships with one power supply and accepts a second for redundancy.
