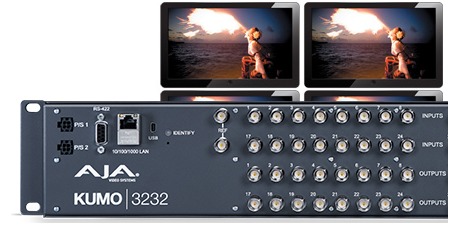

AJA KUMO3232 Compact 32x32 3G-SDI Matrix

The KUMO 3232 is a compact matrix router with 32 3G-SDI inputs and 32 outputs, handling SD, HD, and 3G-SDI with signal quality that exceeds SMPTE specifications. Firmware supports ganged dual and quad port routing, so multiple inputs and outputs can be grouped for Dual Link, 4K, and UltraHD signals, letting a single frame carry both conventional HD and uncompressed or RAW 4K feeds.

An embedded Linux operating system makes the router network-ready with no extra software: connect it and Bonjour/Zeroconf auto-configuration brings it online, then a web browser handles naming, TCP/IP setup, and every crosspoint. Up to eight salvos recall multiple sources to destinations in one action, callable from the web UI, GVG native protocol over Ethernet, RS-232, or an AJA KUMO CP2 hardware panel. The router ships with one power supply and accepts a second for redundancy.
