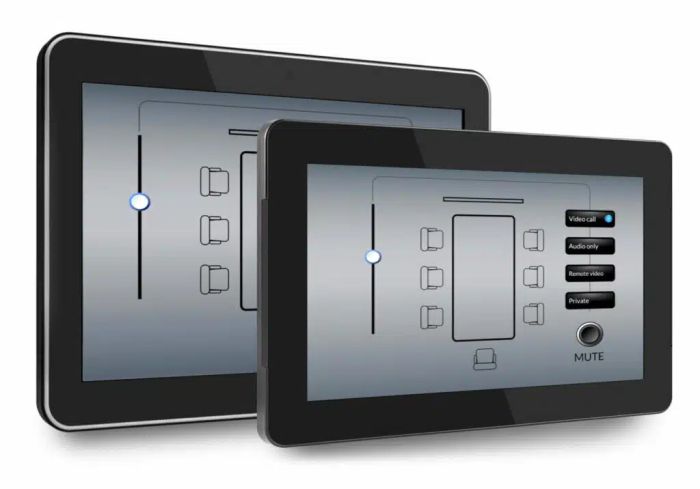

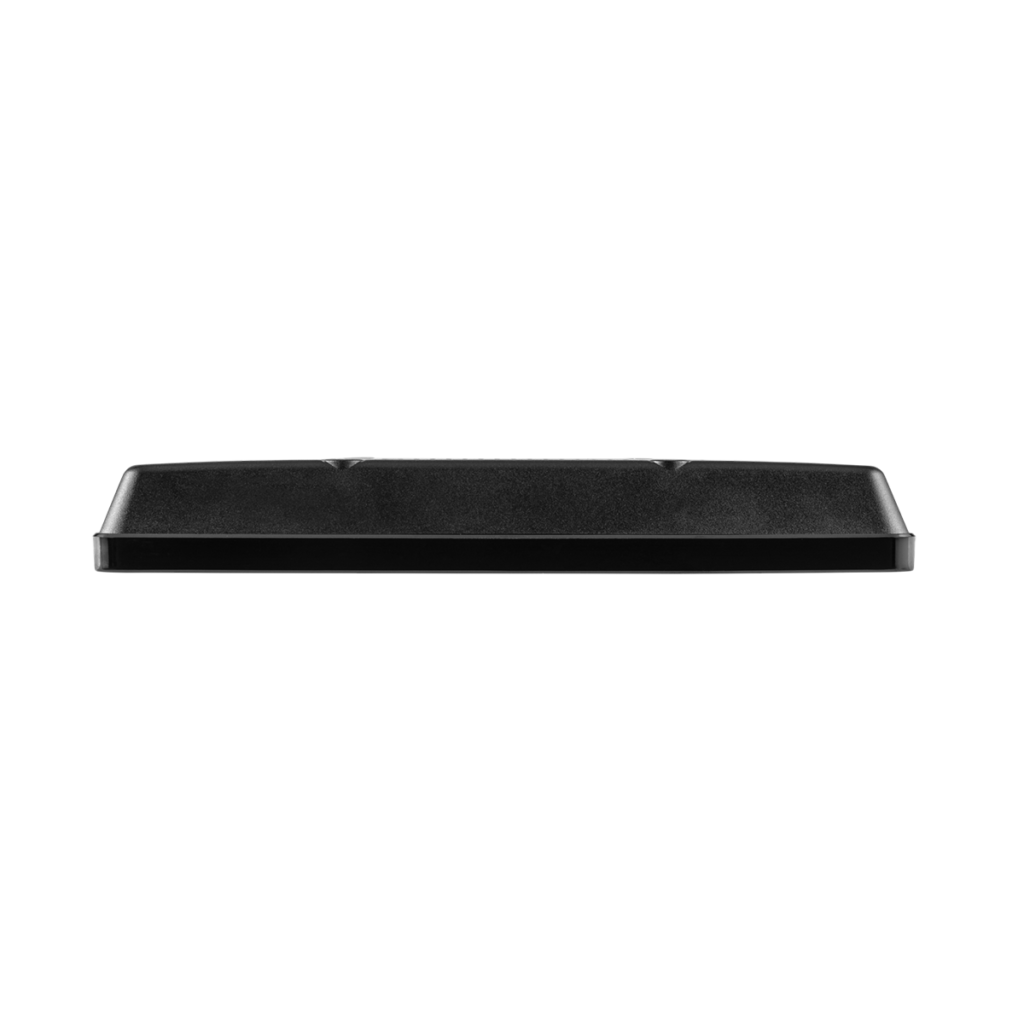

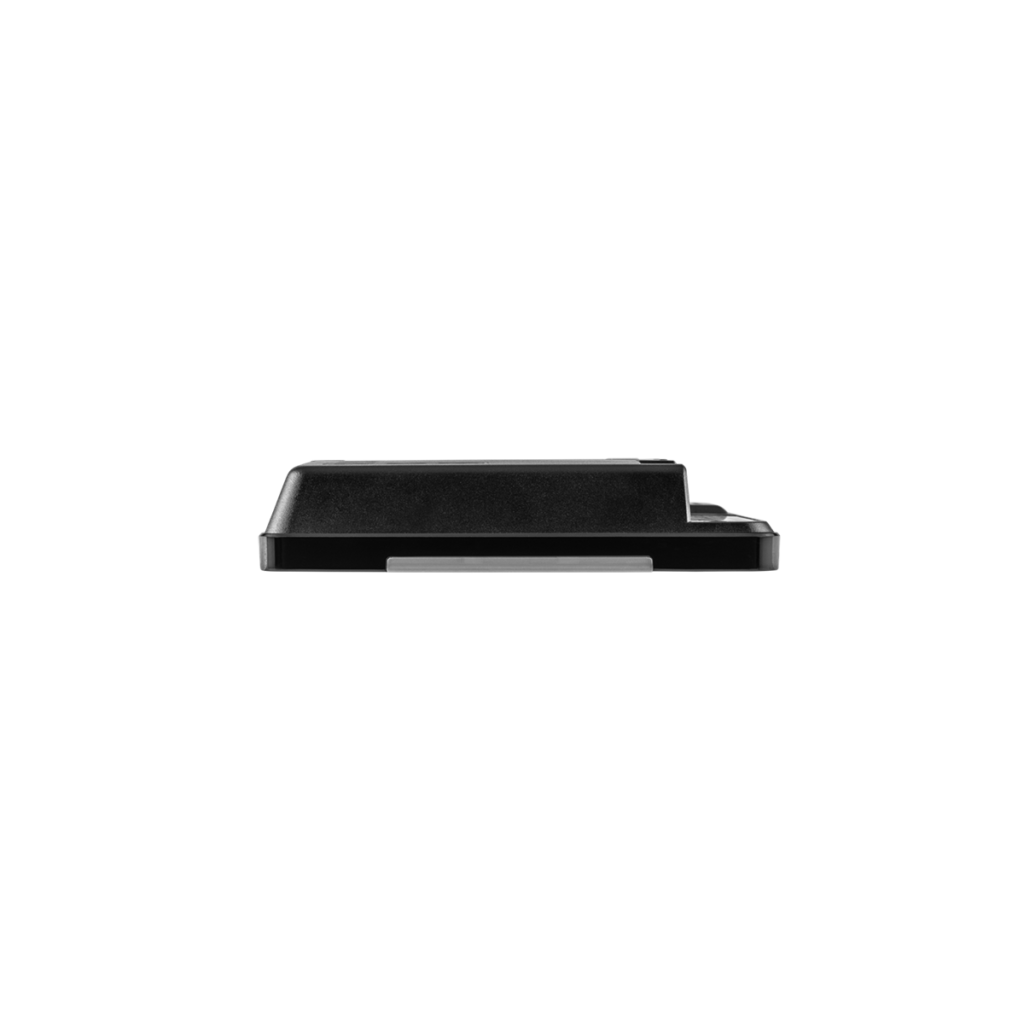

Allen & Heath CC-7 and CC-10 Custom Control Touch Panel

The CC panels are the wall-plate answer for an installed Allen & Heath system. Both run the Custom Control app, which lets an integrator build a bespoke interface per user, so a room's staff get exactly the level, source, and preset controls they need and nothing else. The CC-7 uses a 7-inch 1024 x 600 touchscreen; the CC-10 a 10-inch 1280 x 800.

Installation is deliberately plain. Both panels have threaded inserts for standard VESA 75 x 75 mm mounting, with an optional desktop stand (CC-STN) or a wall and glass mount bracket (CC-BRK). Power comes from a 12V DC supply or Power over Ethernet, which keeps a wall install down to one cable. Running Custom Control in kiosk mode locks the panel so nobody in the room can reach the settings; an installer exits the app to change IP address, brightness, or push a software update over the USB-A port. Compatible with AHM, dLive, and Avantis systems.
