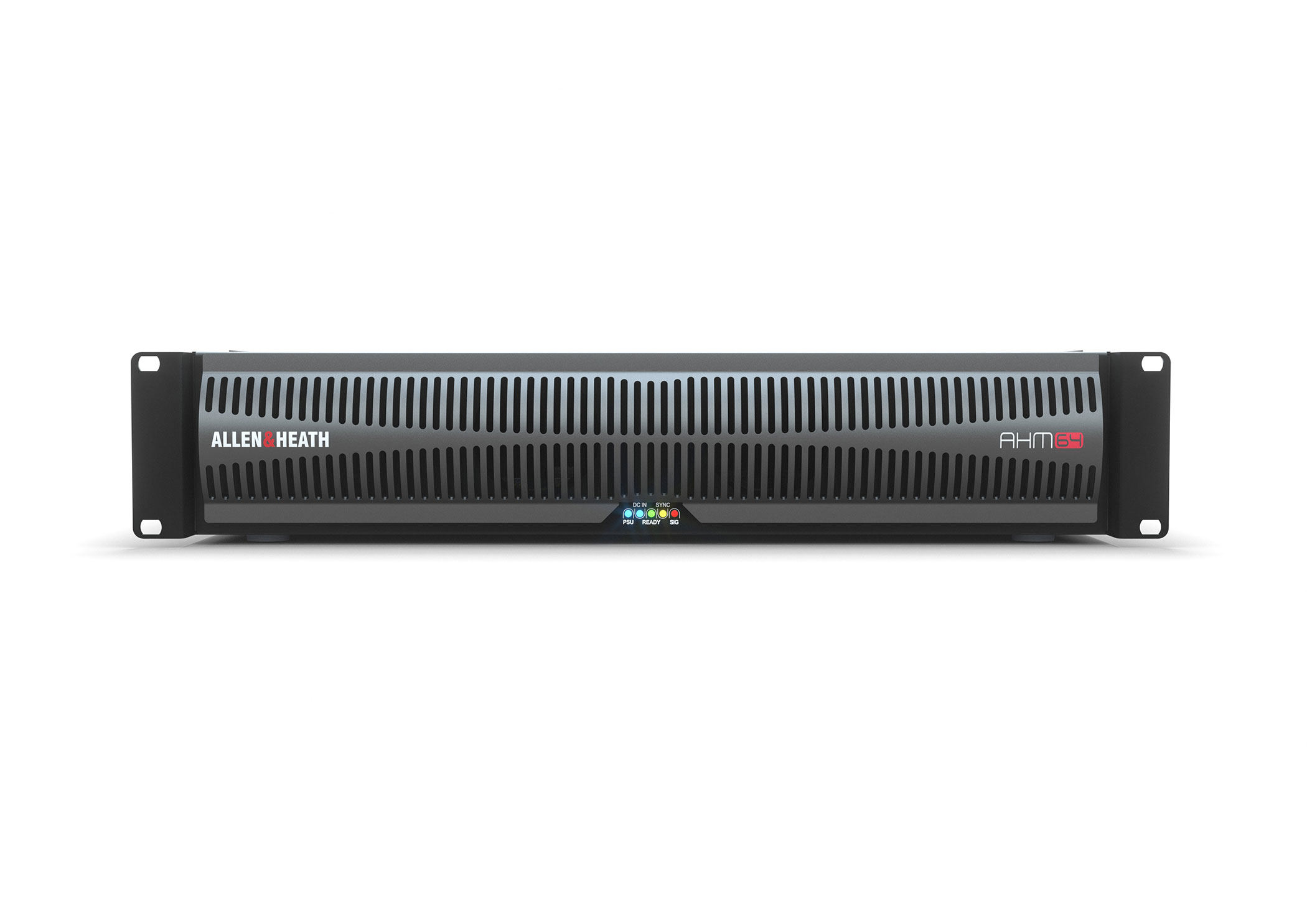

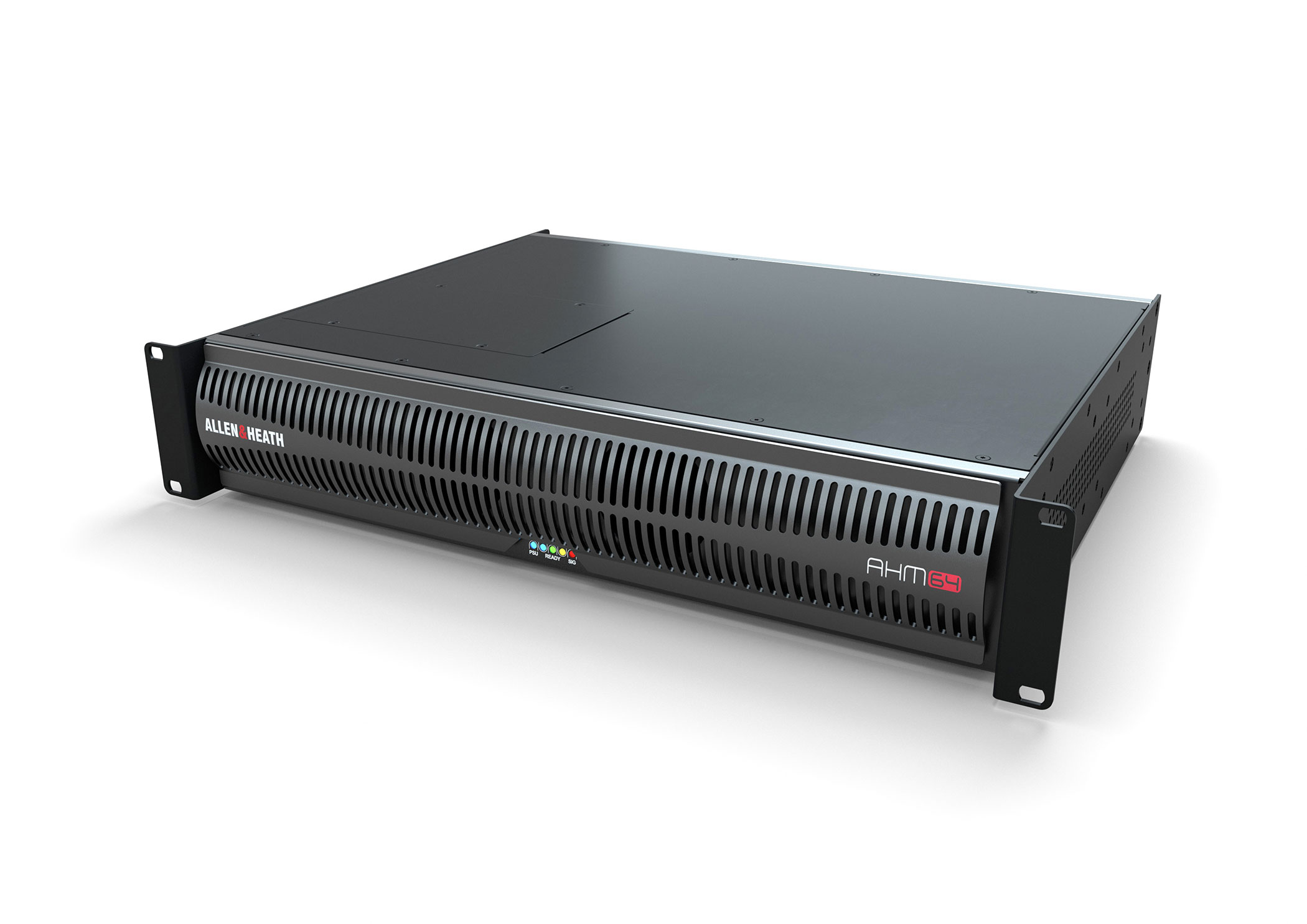

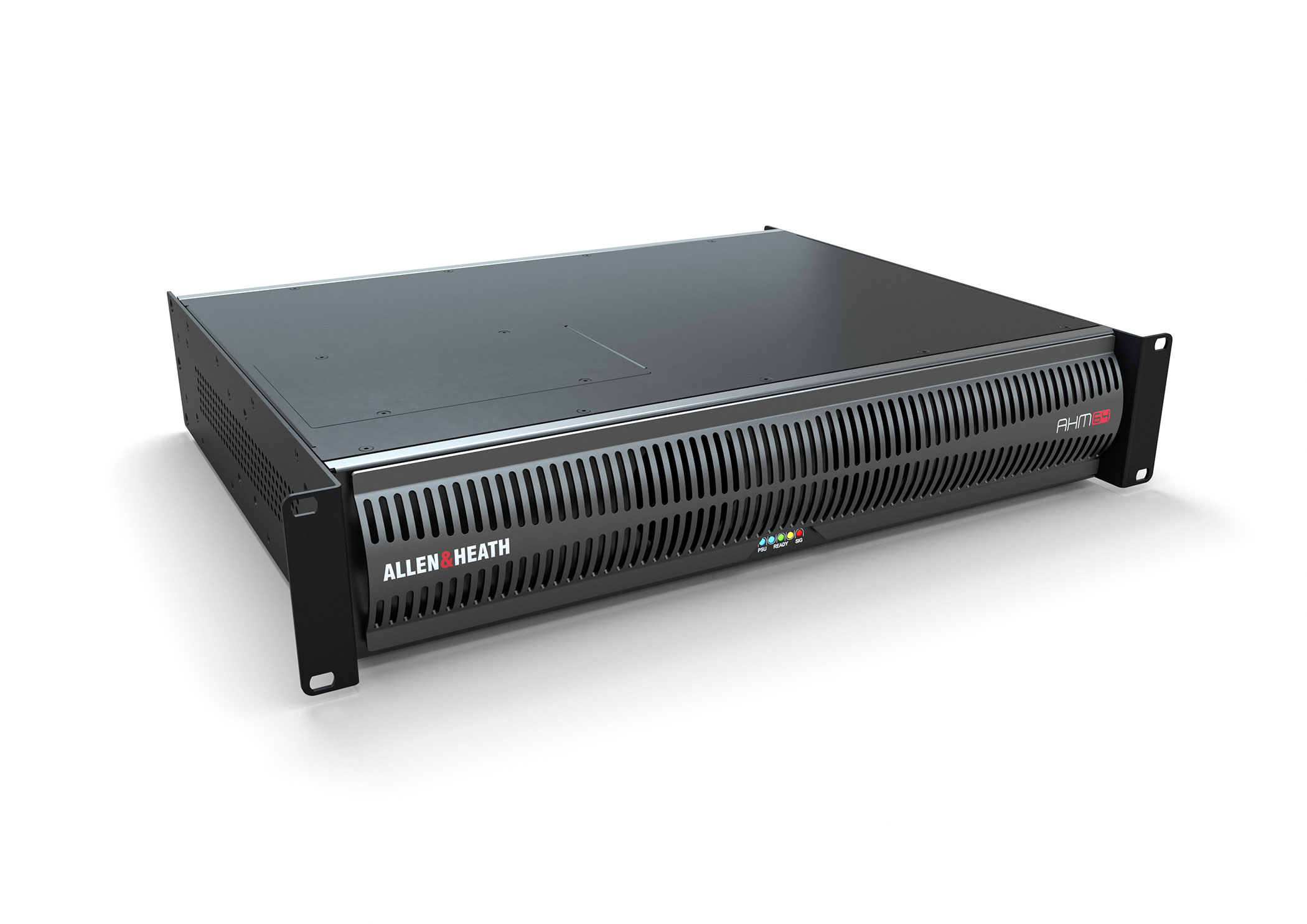

Allen & Heath AHM-64 Audio Matrix Processor

The AHM-64 is Allen & Heath's fixed-install audio matrix processor, built for the corporate, hospitality, education, and venue jobs where the system needs to run itself day to day. At its core is a 64x64 processing matrix with 12x12 local analog I/O on the chassis, so a single 2U unit can start small and still hold the DSP headroom for growth.

A 128x128 SLink expansion port and up to 128x128 of network I/O let the system scale out to remote stage boxes, wall controllers, and paging zones as a building's needs grow, and an optional 96kHz, 64x64 Dante card drops the AHM-64 straight into an existing Dante network. Eight onboard Automatic Mic Mixers handle multi-microphone conferencing and paging without manual gain-riding, and the whole system is configured and managed through dLive Director software or Allen & Heath's IP-series wall and table remote controllers.
