Vaddio IntelliSHOT-M Auto-Tracking Camera
The IntelliSHOT-M is the Microsoft Teams Rooms build of Vaddio's auto-framing camera. It connects to the room PC over USB 3.0 and keeps participants framed without an operator, using motion-based intelligent framing rather than face detection. Installers can set maximum zoom, how often the frame adjusts, how quickly the camera responds to people entering and leaving, and mask off areas where movement should be ignored, which is what stops a doorway or a corridor window from constantly pulling the shot.
The camera is an HD ePTZ unit with 30x zoom and a field of view up to 70.2 degrees, so a single wall position covers both a full-table shot and a tight frame on whoever is speaking. It ships with a wall mount and hardware in the matching finish, a matching cable cover and a 6 ft USB cable.
| Camera Type | HD ePTZ with intelligent auto-framing |
|---|---|
| Zoom | 30x |
| Horizontal Field of View | Up to 70.2 degrees |

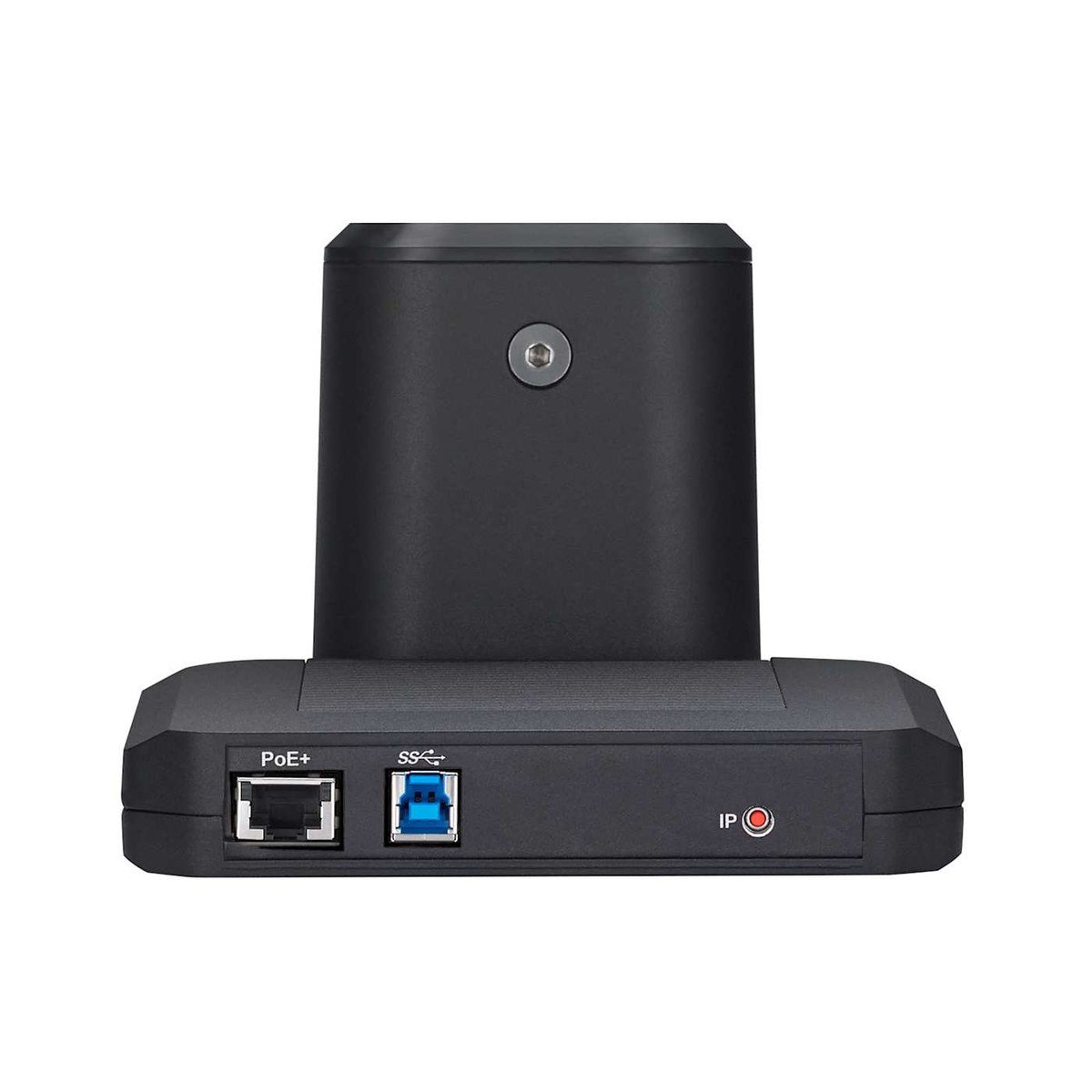

| Video Output | USB 3.0, integrated with Microsoft Teams Rooms |
| Framing Controls | Maximum zoom, frame update rate, response speed, ignore zones |
| Finish | Black or white, with matching mount and cable cover |
| Included | Wall mount and hardware, cable cover, 6 ft USB cable |
