Theatrixx xVision HDMI to 12G-SDI - XVVHDMI2SDI-12G

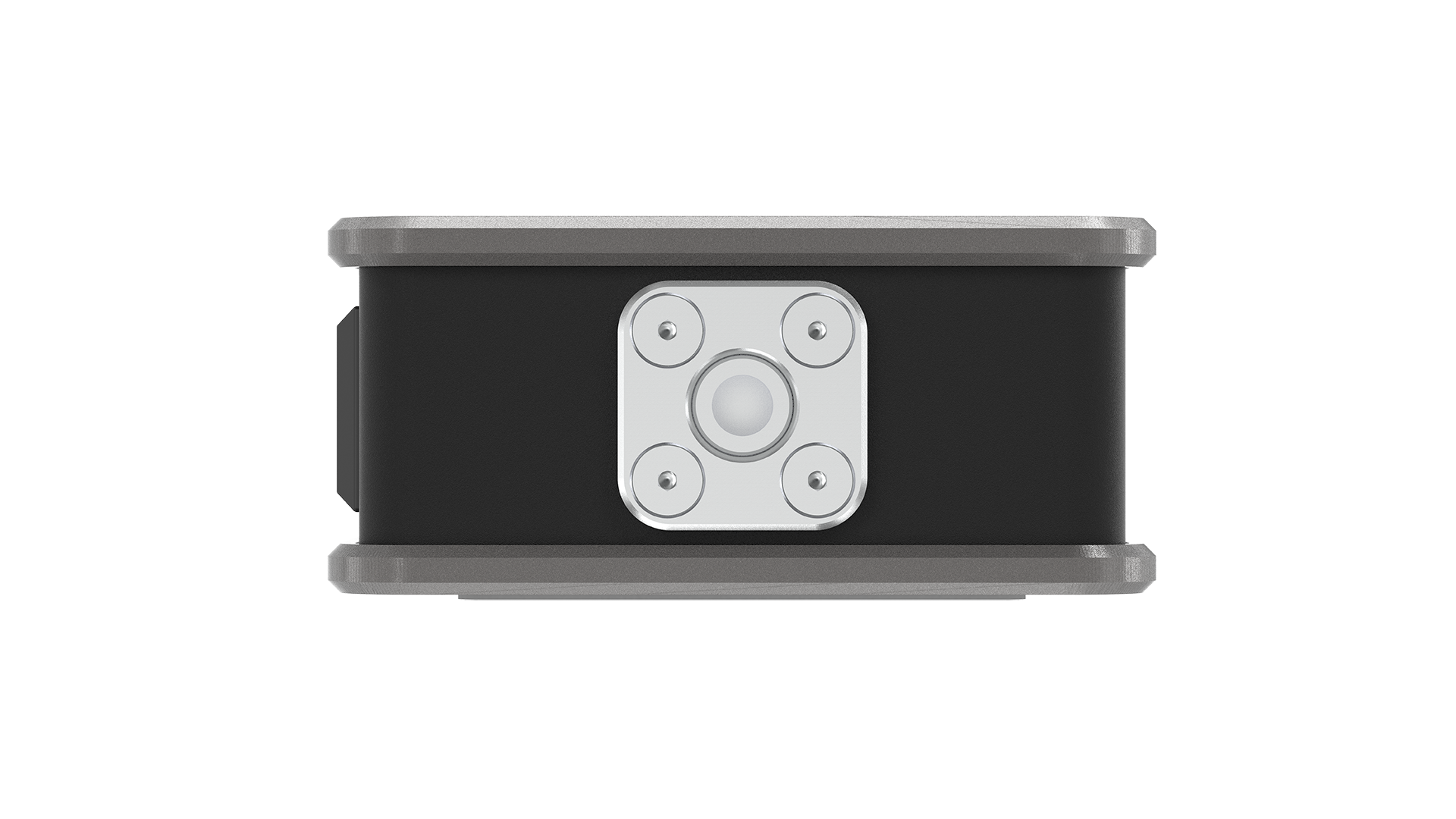

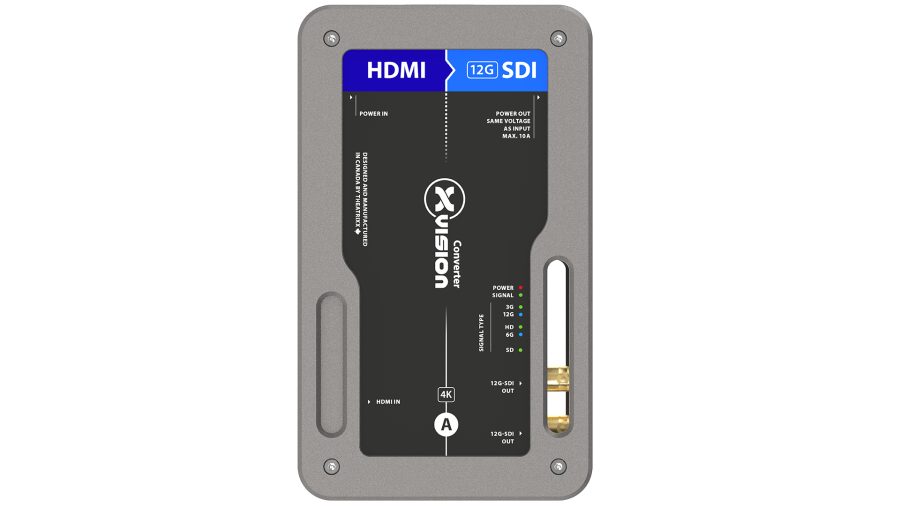

XVVHDMI2SDI-12G is a standalone Theatrixx xVision converter built for the road rather than the equipment room, with an integrated power supply on a locking powerCON inlet, a magnetic stacking base over a non-skid pad, and color and letter coding on the enclosure so the right box is identifiable under stage light. It gets a laptop, console or camera HDMI output into the SDI chain. Input is 1 x HDMI 2.0 type A with locking system and output is 2 x 12G/6G/3G/HD/SD SDI BNC. Signal handling follows SMPTE 425 M Level A & B, 424 M Level A, 292 M, 259 M.

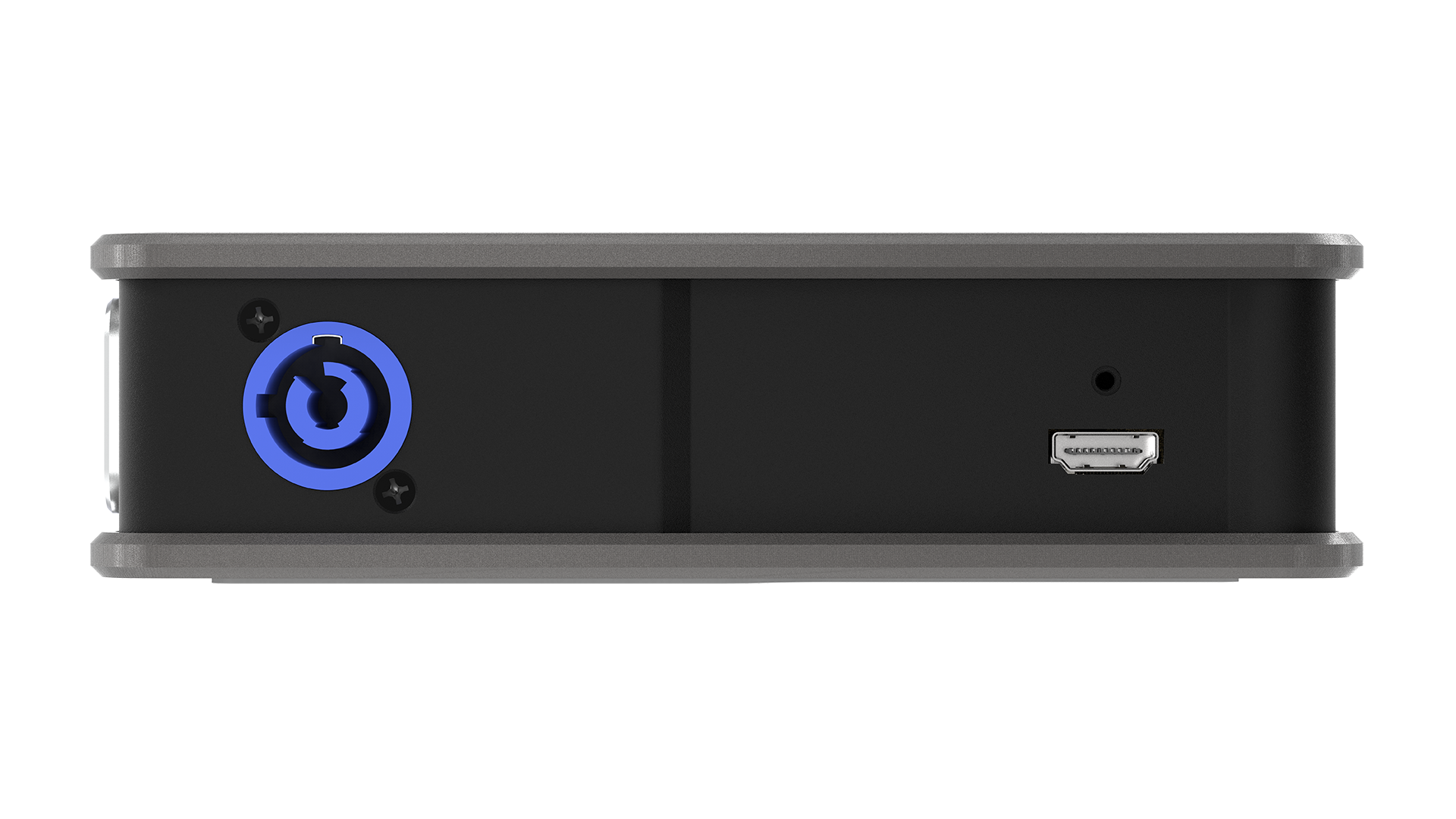

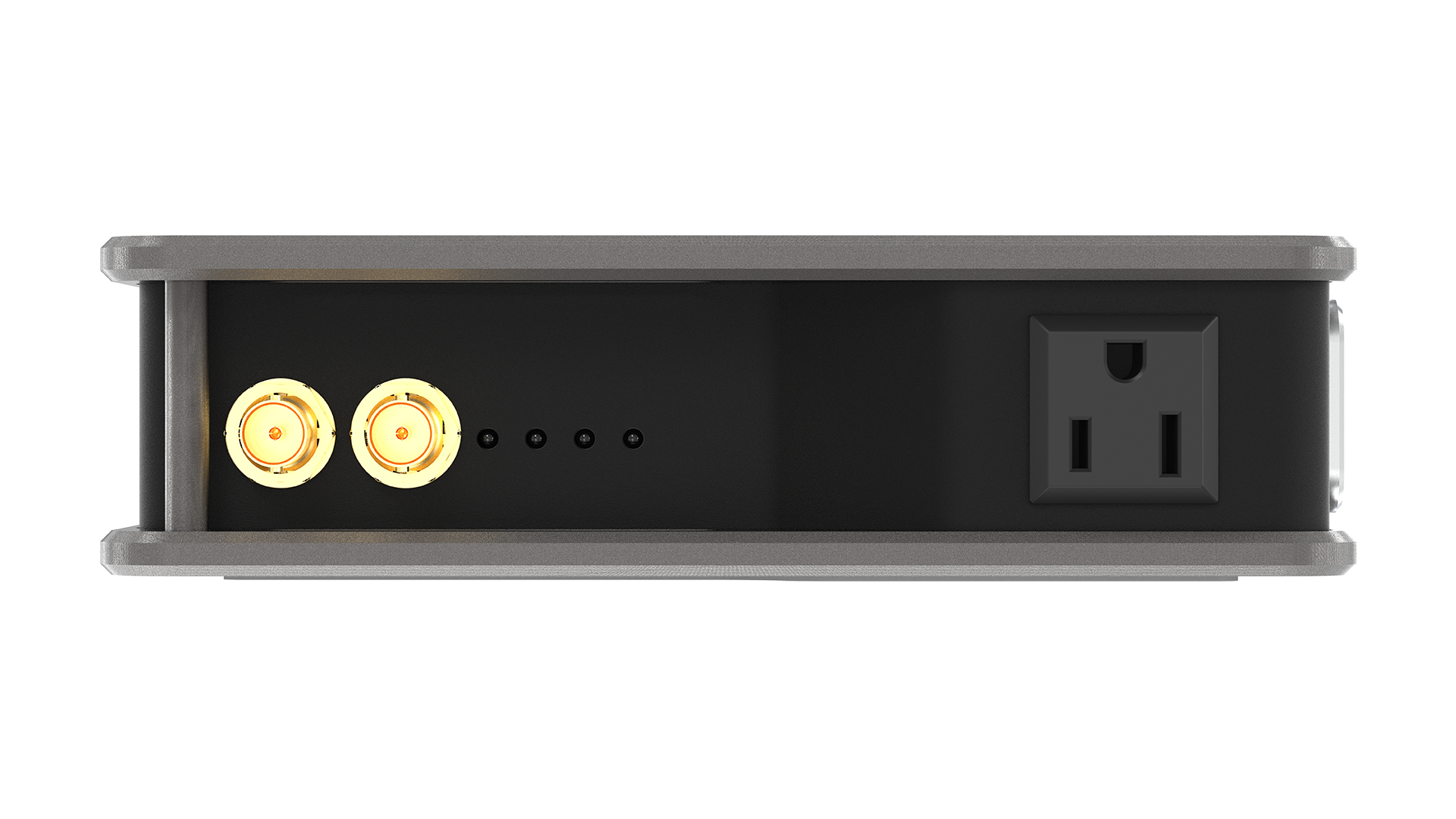

Power is Built-in power supply, PowerCON input, Edison Nema 5-15 output (loop-thru). Draw is 15W. Mounting options cover C-clamp, wall plate, LCD bracket and belt adapter, and the courtesy AC outlet on the rear feeds a nearby display or laptop off the same drop.
