Telex SS-1002 Single Channel Remote Speaker Stations

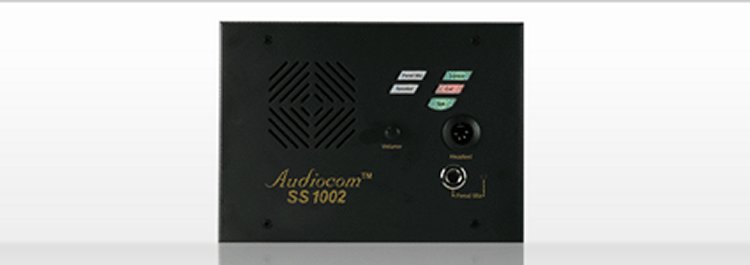

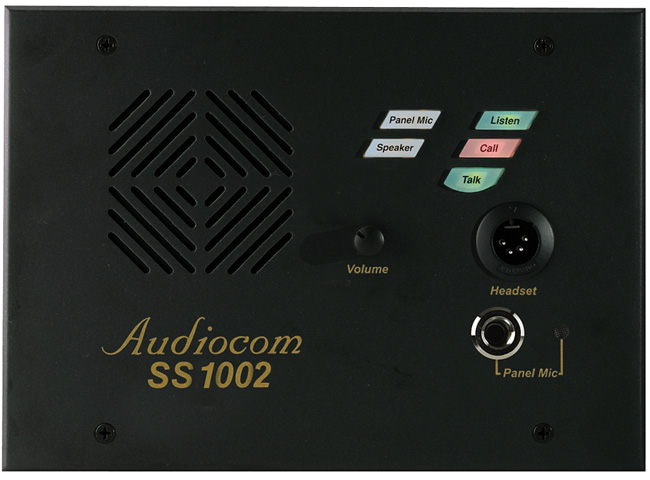

The SS-1002 is a single-channel speaker station that comes in four versions to suit a variety of applications. There is a plain version with no enclsosure. The "S" box is a portable version. It has a carrying handle and dual "loop-through" intercom connectors which permit stations to be quickly interconnected using prefabricated cables. the "P" box is a stationary version. It also has dual "loop-through" connectors for quick interconnection, but the case is designed for desktop or console-mount applications. The "U" box is designed for permanent, in-the-wall mounting. It uses push type wire terminals for connection to the intercom system.
Easy Wiring
Via XLR "loop-through" or push-type wiring terminal block.
Panel Mic Key
Selects built-in panel microphone or gooseneck microphone (when present) when in the ON position. Selects headset/handset when in the OFF position.
Speaker Key
Selects the built-in speaker in the ON position and the headset/ handset when in the OFF position.
Call Key
Used to send call signals on the intercom channel and to indicate incoming calls.
Intercom Talk Key
Only momentary (push-to-talk) is possible.
Panel Mic Connector
Accepts an MCP-90 series microphone.
