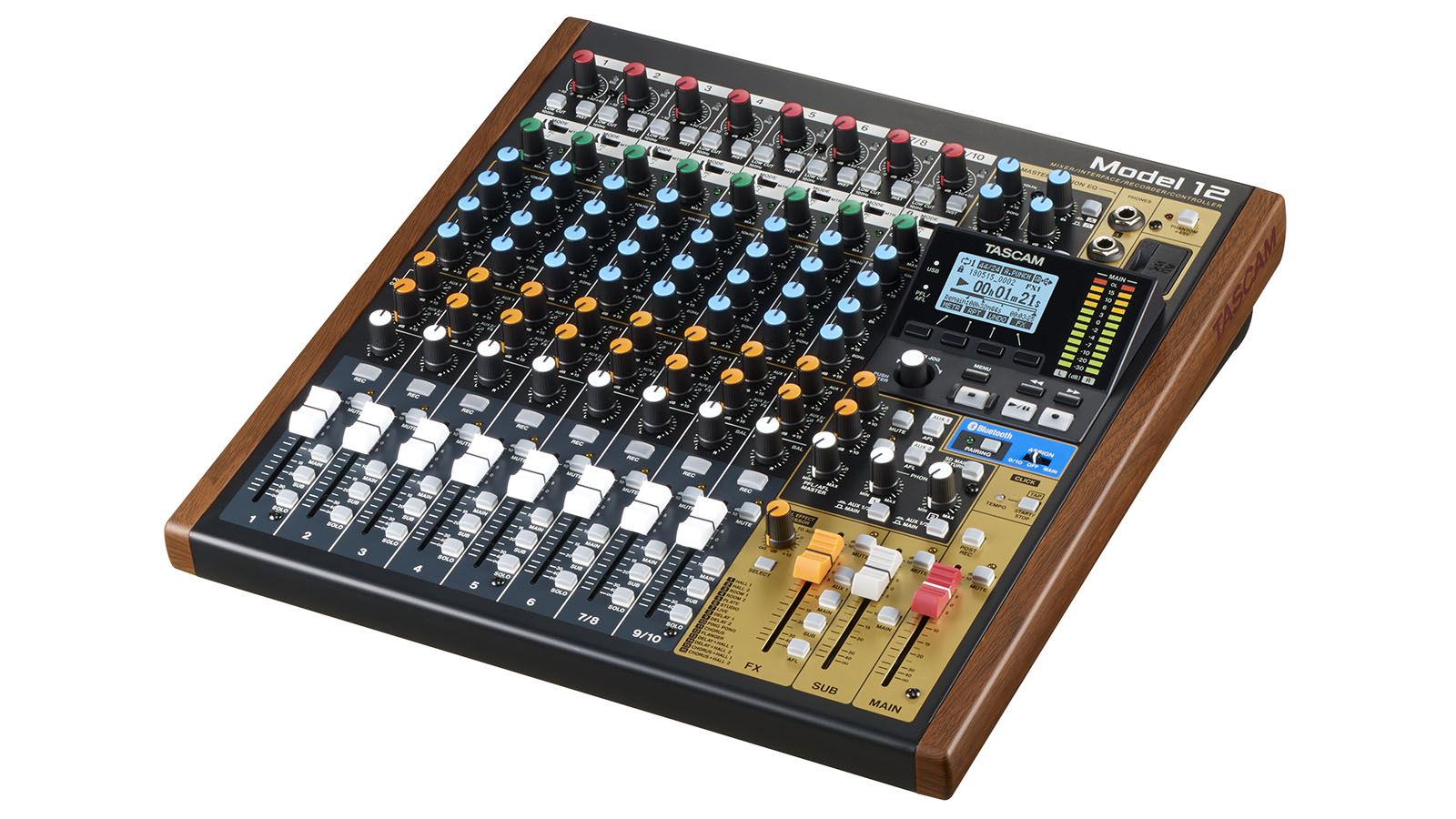

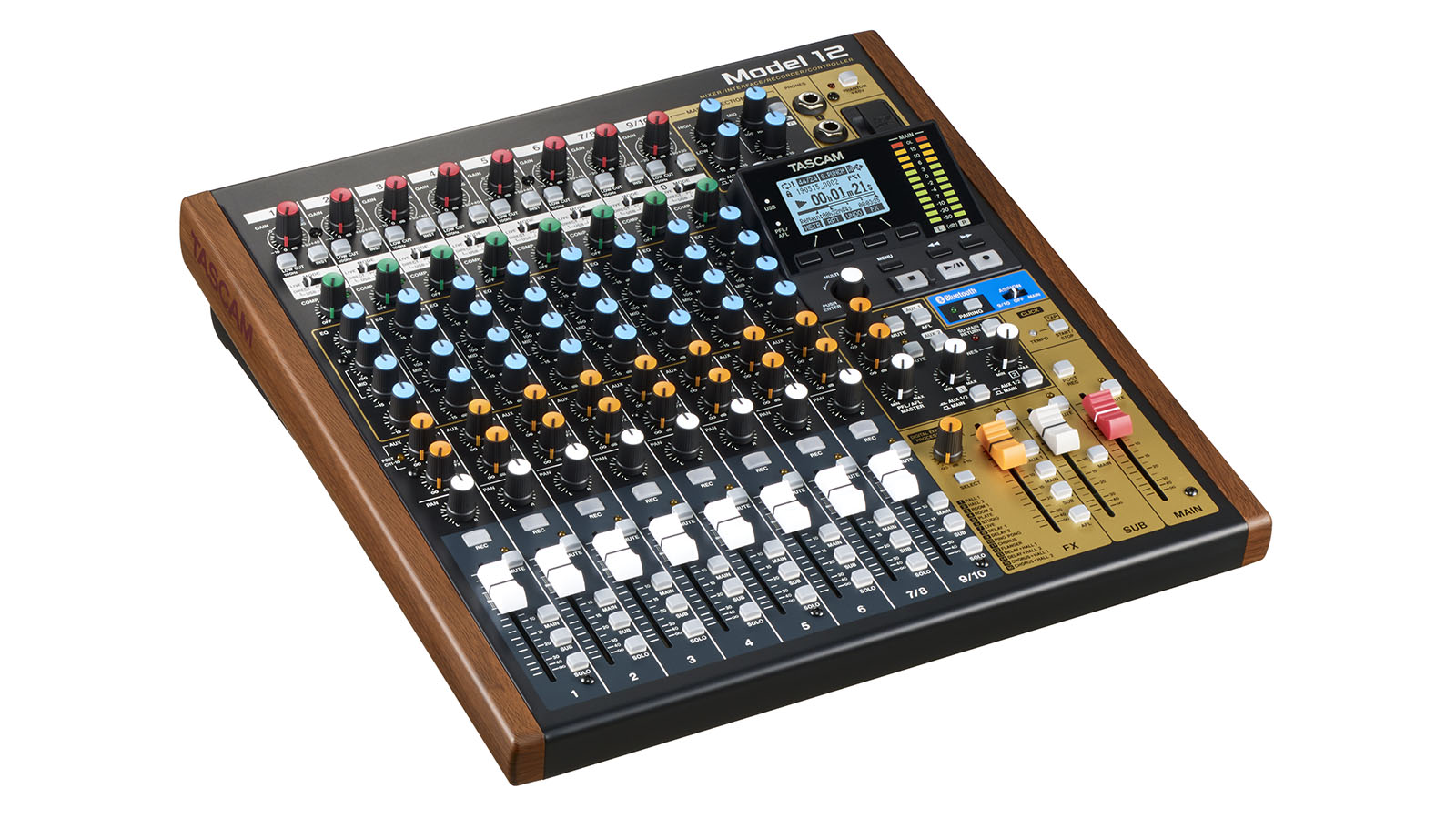

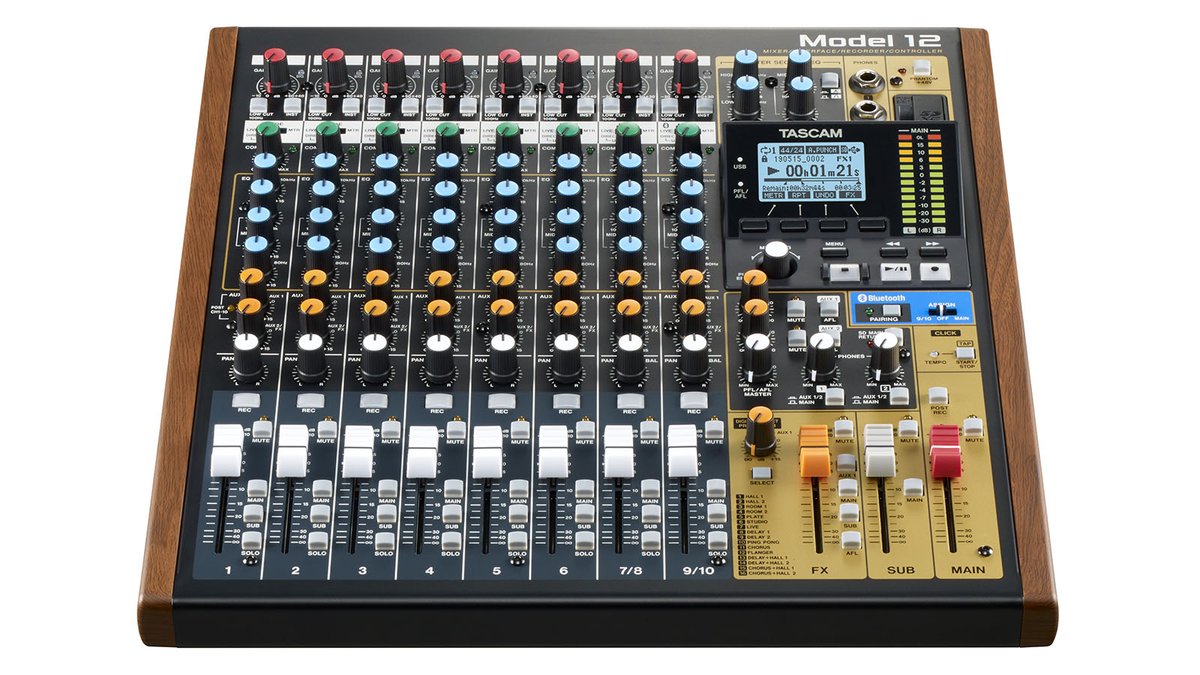

Tascam Model 12 Multi-Track Recorder / Mixer / Interface
The Model 12 records 12 tracks at once to an SD card as WAV/BWF files while doubling as a full analog mixer and a 12-in/10-out USB audio interface, so the same box tracks a band, mixes the room, and feeds a DAW without swapping gear. Eight XLR mic inputs run through Tascam's Ultra HDDA preamps for a low noise floor, and eight Hi-Z instrument inputs cover guitars and basses directly.
Built-in effects (reverb, delay, chorus, flanger), a VAMP playback loop function, and mix-minus routing for podcast guests round out the recording side, while HUI/MCU emulation lets it double as a DAW control surface. Bluetooth 5.0 and a 3.5mm smartphone input bring in a phone for reference playback or a remote guest, and dual headphone outputs give the host and a guest independent mixes.
| Configuration | 12-track recorder, mixer, and USB audio interface |
|---|---|
| Inputs | 8 XLR mic (phantom power), 8 Hi-Z instrument, 10 line total |
| Recording Format | WAV/BWF, 16/24-bit, 44.1/48 kHz to SD card |
| USB Interface | 12-in / 10-out, USB Type-C |
| Wireless | Bluetooth 5.0, 3.5mm TRRS smartphone input |
| Control | HUI/MCU DAW control emulation |
| Dimensions | 13.5 in W x 3.9 in H x 14.2 in D |
| Weight | 9.48 lb (4.3 kg) |
