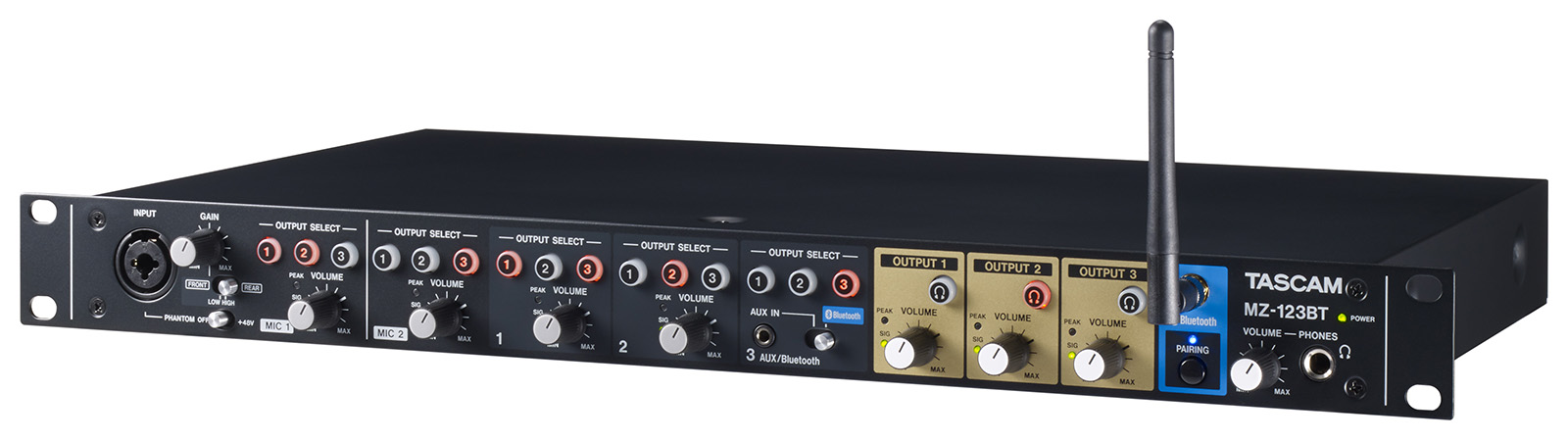

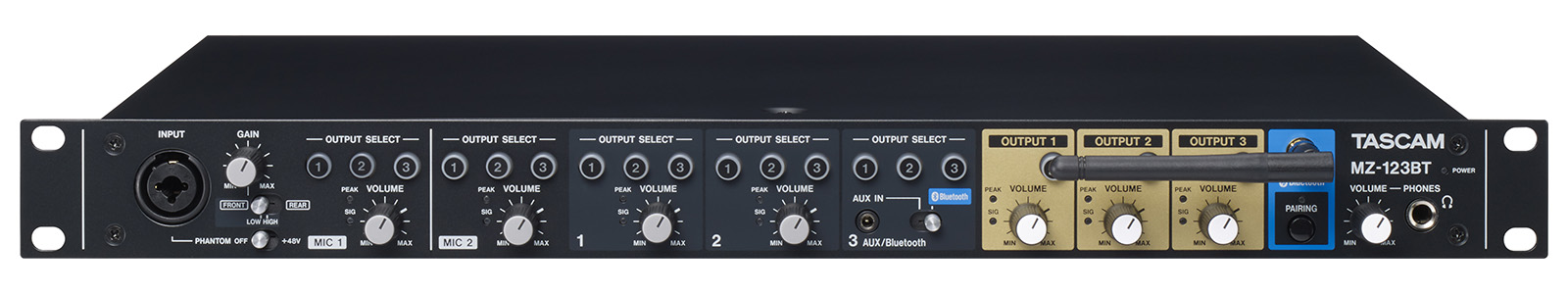

Tascam MZ-123BT 3-Channel Multi-Zone Mixer with Bluetooth

The MZ-123BT is a commercial zoning mixer: three input channels, each assignable to any of three independent zone outputs, so a restaurant can run different background music in the bar, the dining room and the patio from one rack space. Bluetooth 4.2 lets staff play from a phone without a cable run to the rack.

Two mic inputs handle announcements with talkover, one on a front-panel XLR/TRS combo jack and two more on rear Euroblock, and a headphone jack allows any output to be monitored at the rack. Zone outputs are balanced Euroblock on 3.81 mm pitch. The unit is 1U, draws 25 W and weighs 3.0 kg.

MIC INPUT (BALANCED) jack (front) Rated input level-26dBu (0.039 Vrms, when FRONT HIGH), -2dBu (0.616 Vrms, when FRONT LOW)
OUTPUTS (BALANCED) connectors ConnectorsEuroblock (balanced) 3.81mm pitch
MIC IN 1-2 (BALANCED) connectors (rear) ConnectorsEuroblock (balanced) 3.81mm pitch
PHONES jack PowerAC 100V - 240V, 50/60Hz
PHONES jack Dimensions483 x 46.5 x 274.8mm (W x H x D, including protrusions, excluding Bluetooth antenna)
PHONES jack Weight3.0 kg
MIC INPUT (BALANCED) jack (front) Maximum input level-10dBu (0.245 Vrms, when FRONT HIGH), +14dBu (3.884 Vrms, when FRONT LOW)
MIC INPUT (BALANCED) jack (front) Minimum input level-65dBu (0.0004 Vrms, when FRONT HIGH), -41dBu (0.007 Vrms, when FRONT LOW)
