Symetrix xIO Bluetooth RCA-3.5 Dante Endpoint

The xIO Bluetooth RCA-3.5 is the two-gang version of the Symetrix Bluetooth endpoint, and it exists for the rooms where wireless is not the only way in. Alongside the Bluetooth 5.0 receiver it carries stereo RCA and stereo 3.5 mm unbalanced inputs with flexible routing and summing, plus simultaneous and independent RCA and 3.5 mm outputs, giving four channels of Dante I/O on the plate.

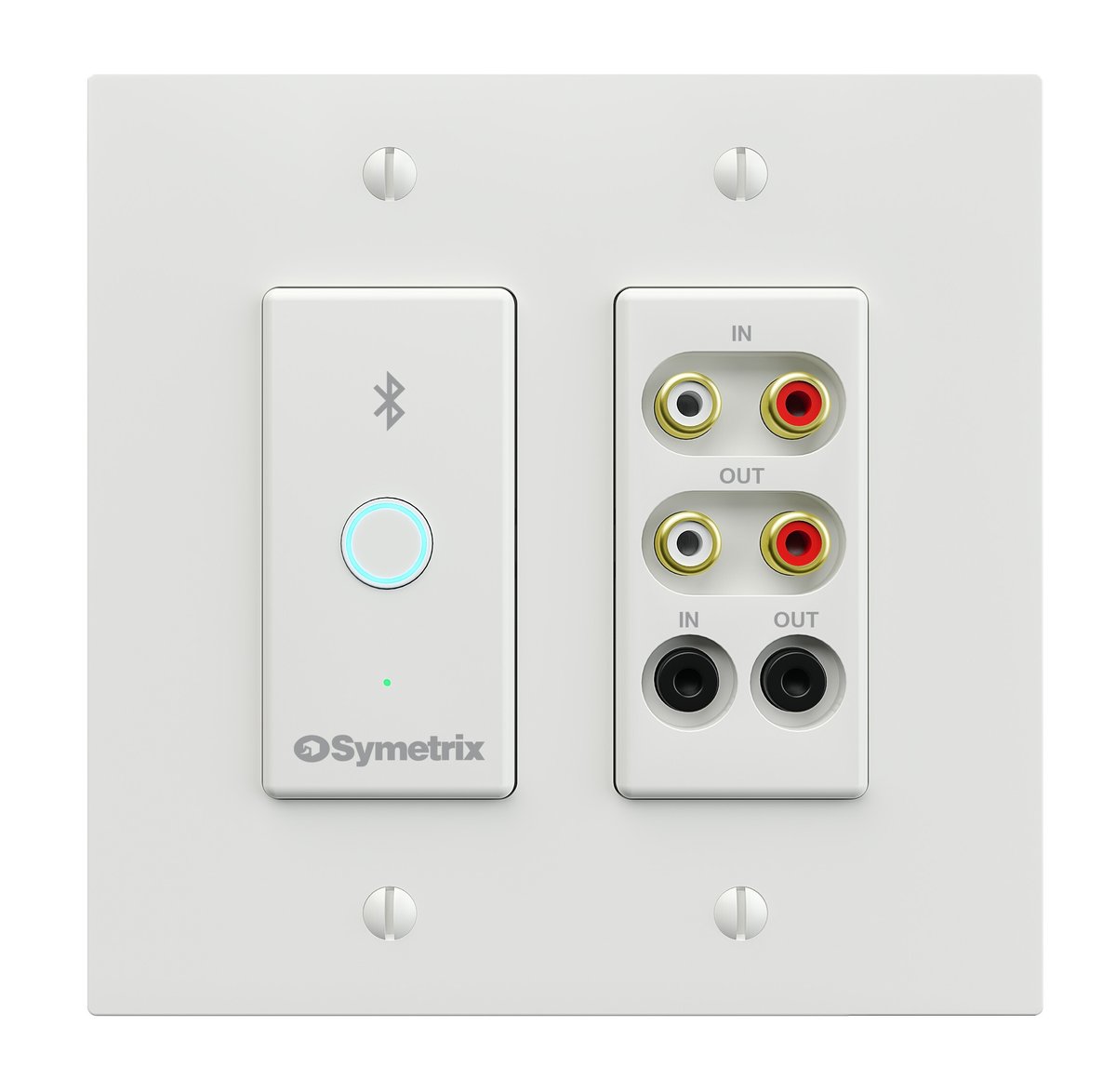

The Bluetooth side behaves exactly like the single-gang model: selectable media, phone or combined modes, PIN code protection, selectable single or multiple pairing memory, and an LED blackout mode. Everything is configured in Composer and can be driven afterwards from Symetrix remotes, SymVue panels or a user device. One PoE 802.3af Class 0 run powers it. The unit fits a double-gang US wall box behind a standard two-gang Decora faceplate, in black or white.

Wireless	Bluetooth 5.0
Analog Inputs	Stereo RCA and stereo 3.5 mm unbalanced, routable and summable
Analog Outputs	Simultaneous, independent stereo RCA and 3.5 mm
Network Audio	4 channels of Dante I/O
Power	PoE IEEE 802.3af Class 0, 15 W maximum
Form Factor	Double-gang US wall mount, Decora
Dimensions	3.612 in. x 4.205 in. x 2.063 in.
Product Weight	0.65 lb (0.29 kg)
Compatibility	Symetrix Composer 8.1 or later
