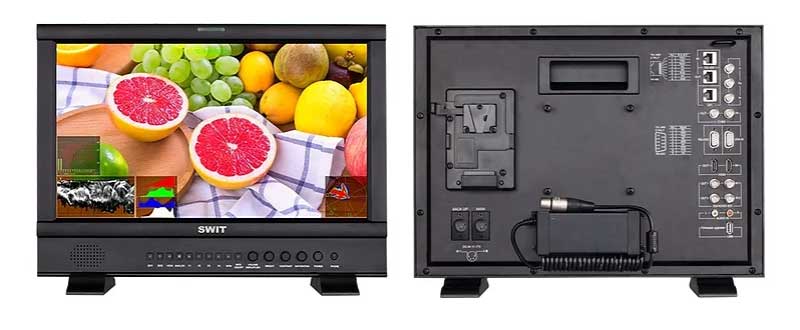

Swit S-1173F 17.3" Waveform LCD Monitor

S-1173F adopts a 17.3 -inch IPS (In-Plane Switching) LCD panel, Full HD 1920×1080 resolution and LED backlight, 700:1 contrast for accurate color reproduction. The viewing angle is Horizontal: 160° / Vertical: 160°.

• 17.3-inch LCD Panel, 1920×1080 resolution
• 2K/3G/HD/SD-SDI( x2 ), HDMI monitoring
• Y/Pb/Pr, VGA, CVBS monitoring
• 16-ch Embedded audio meters with alert
• Select any 2 audio channels to output
• Waveform Y/Cb/Cr/R/G/B and single line
• Vector scope, histogram R/G/B/Y
• Peaking focus assist (red/blue switch)
• AFD, Timecode, H/V delay
• TSL UMD and text TALLY display
• Safety Marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1
• False Color, R/G/B/Mono, Zebra stripes, Internal Color Bar
• V-mount / Gold mount battery plate optional
• 19inch Rack install, 7U height
• USB firmware upgrade
• Includes: Desktop Stand Feet×2, AC-DC power adaptor×1, 19-inch rack mount bracket×1

Swit S-1173F User Manual
