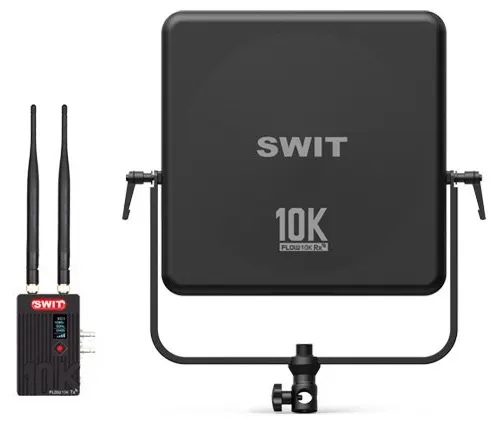

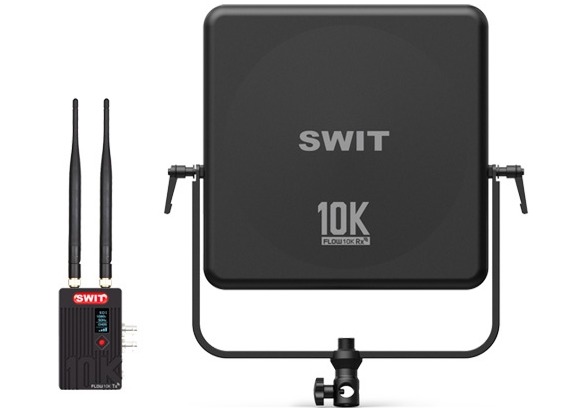

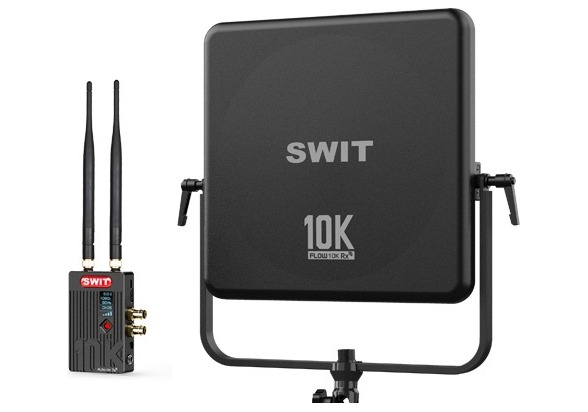

Swit Flow10K Long-Distance Wireless Video System

FLOW10K wireless system is based on SWIT's latest professional KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, supports 3G/HD-SDI and HDMI (Max 1080p60) to transmit 10,000 feet Line-of-Sight distance. The KUWI professional wireless chip features stable connection for any complex environment and is strong in wall-cross capability.
The long distance wireless can be widely used in film production, event broadcasting etc.

The Transmitter
The Transmitter has 2 omni antennas, supports
1x 3G/HD-SDI input
1x 3G/HD-SDI loop output
1x HDMI 1.3 input

SDI & HDMI formats:
1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50

* Supports embedded audio (CH1&2) transmission.

The Panel Receiver
The Receiver has built-in high gain directional Panel Antenna, compact size, without complex antenna wires connection, is solid and reliable, and provides one 3G/HD-SDI output.

10,000 ft Long Distance
Strong Wall-cross Performance
With the high gain panel receiver, FLOW10K supports 10,000 ft (Line-of-sight) reliable wireless transmission, and features strong wall-cross performance due to both RF and image quality optimization, ensuring video transmission without data loss or crashes compared to regular 5GHz wireless transmitters.

Power Supply

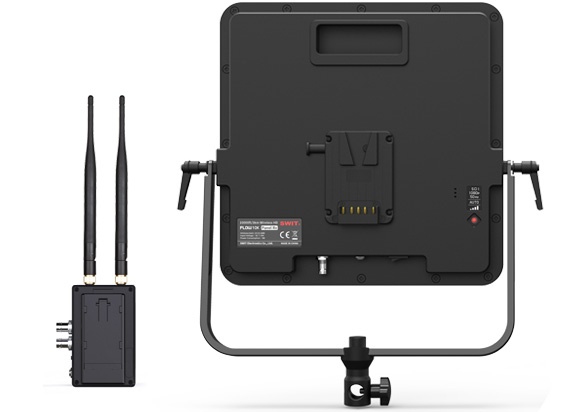

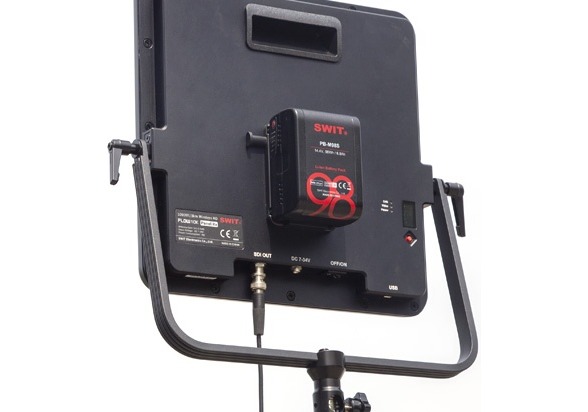

The power consumtion of Tx and Rx are less than 9W. The Transmitter provides NP-F DV battery plate, and 7-34V DC-IN socket; The Panel Receiver provides a V-mount battery plate, and 7-34V DC-IN socket.

OLED Display & Channel Switch
5GHz Frequency, DFS Comply
The FLOW wireless works under 5.1-5.9GHz, with built-in wireless scanner, and detect wireless condition of all frequencies, automatically jump to the best wireless channel to keep reliable connection and transmission, and DFS comply. You can also switch the wireless channels manually from 7 Non-DFS restricted channels. Both Transmitter and Panel Receiver are equipped with OLED to display signal format, wireless channel number and signal strength.

Multicast and Double Encryption
Support 1 transmitter to unlimited quantity receivers reliable multicast mode. The transmitter and receivers are paired and double encrypted by private transmission protocol and by AES128, in order to protect the footage.

Stable Connection at Worst Wireless Environment
The FLOW series adopt professional KUWI 5GHz wireless technology, can keep connected at any complex wireless environment, such as sports stadium, concert, public plaza where full of people, electronic devices or wifi routers.

FLOW series Cross-Receiving
The FLOW10K can work together with other FLOW series wireless at different receiving distances.
Using the FLOW10K transmitter, you can receive in 500ft with FLOW500 Rx, in 2000ft with FLOW2000 Rx, in 6500ft with FLOW6500 Rx, and in 10000ft with FLOW10K Rx.

Reclock & Color Reproduction
To ensure the quality of black level, signal noise and color reproduction of the wireless received signal, the FLOW series wireless receiving supports signal re-clock and accurate color reproduction.

Key Features:

• KUWI 5.1-5.9GHz Wireless Technology
• DFS Comply
• 3GSDI & HDMI, with 3GSDI loop out
• High gain panel antenna with built-in receiver
• 10,000 ft (Line-of-Sight) distance
• Strong Wall-Cross Performance
• 2-ch SDI/HDMI audio transmission
• OLED info and channel switching
• Support multiple pairs working in one location
• Multicast - 1 transmitter to unlimited receivers
• Wireless protocol & content double encryption
• Reclock and accurate color reproduction

Includes:

• 1x Transmitter
• 1x Receiver
• Cold shoe and 1/4" Arm Trestle
• D-tap to lockable Pole-tap cable
• AC-DC adaptor (3 meters)
• Carrying Case
