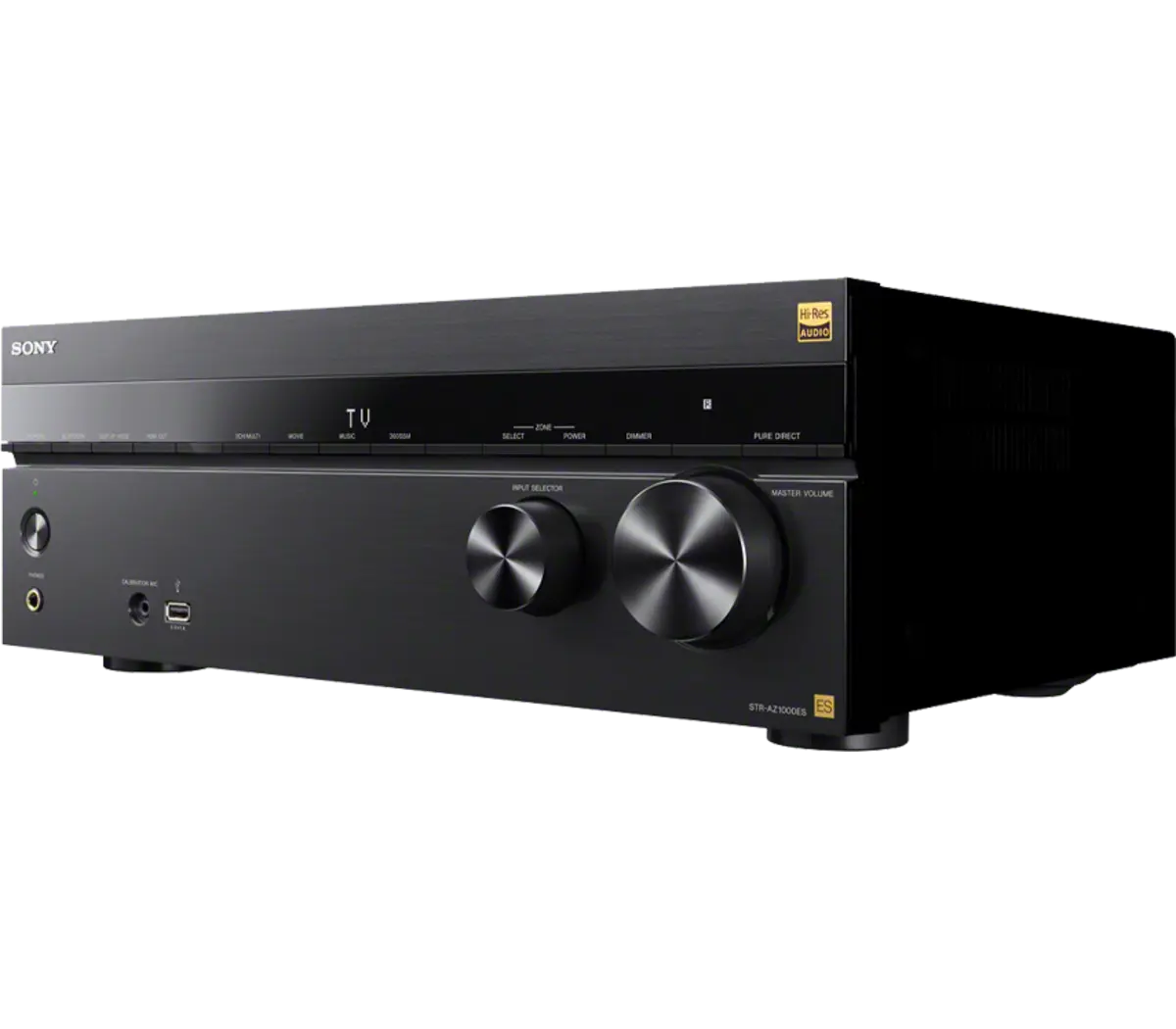

Sony STR-AZ1000ES 7.2-Channel 8K ES AV Receiver

The STR-AZ1000ES is the entry point to Sony's ES receiver line, the models built for custom installation with extended warranties and control-system support. It carries four 8K-capable HDMI inputs and two outputs, passes 8K and 4K/120 with Dolby Vision, HDR10 and HLG, and is IMAX Enhanced certified alongside Dolby Atmos, DTS:X and the virtualised Dolby Speaker Virtualization and DTS Virtual:X modes. 360 Spatial Sound Mapping fills in phantom speakers around the real layout.

Digital Cinema Auto Calibration IX and Speaker Relocation tune the room from the supplied microphone and stand. Zone 2 runs over HDMI, IR repeat in and out is on the back panel, and speaker loads of 6 to 16 ohms are supported. Hi-res decoding covers DSD, WAV, AIFF, FLAC and ALAC, and HDMI accepts LPCM to 192 kHz/24-bit 7.1. It measures 430 x 156 x 331 mm and weighs 9.3 kg; an FM antenna, power cord and remote are included.

Channels7.2 channel
HDMIFour 8K HDMI inputs, two outputs
Speaker Impedance6ohms-16ohms
HDR (High Dynamic Range)HDR10, Hybrid Log Gamma, Dolby Vision
4K OutputHDMI Video Output Capability: 8K, 4K, 1080p, 1080/24p, Deep Color (up to 36 bit), Triluminous Color (xvYCC)
Decoding Format for HDMIDSD: Yes (Up to 2.8MHz 5.1ch), LPCM: Yes (Up to 192kHz/24 bit 7.1ch), DTS HD MA / DTS HD HR: Yes/Yes, Dolby TrueHD/Dolby Digital Plus: Yes/Yes, DTS
Hi-Res FormatDSDIFF(DSD), DSF, WAV(LPCM), AIFF(LPCM), FLAC, ALAC
Calibration FeaturesD.C.A.C. IX / D.C.A.C. EX / Advanced D.C.A.C. / D.C.A.C.: D.C.A.C. IX, Speaker Relocation, Phantom Surround Back, Automatic Phase Matching
