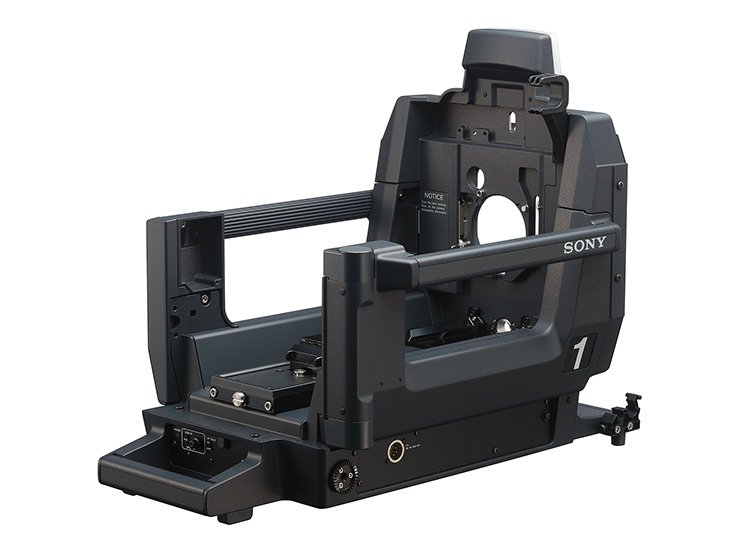

Sony HDLA-3501 Large Lens Adaptor

The HDLA-3501 turns a Sony HDC portable camera head into a full studio or OB build-up that takes a large box lens. The docking mechanism is the working part: the camera drops in and locks with one touch, and power, video and control pass through the hot-shoe interlock, so there are no cables to connect. Because the camera can be pulled out without removing the lens, a hand-held configuration and a large-lens configuration are seconds apart.

This is the simpler and lighter of Sony's two current large lens adaptors, and the trade is deliberate: a wider open area in the exterior design leaves the camera head's own rear panel usable while it is docked. Sony HDVF viewfinders mount on the rear of the camera body - saddle-mount viewfinders are not supported on this model. A type-A USB connector on the inside panel can power a tablet or similar device, with the adaptor supplying up to 108 W in total across its outputs.

Compatible Cameras	Sony HDC series portable system cameras
Docking	One-touch instant docking, cable-free hot-shoe interlock for power, video and control
Viewfinder	Sony HDVF viewfinders on the rear of the camera body; saddle-mount types not supported
USB	Type-A connector on the inside panel
Lens Interface	36-pin connector x1
DC In	XLR 4-pin x1, 10.5 to 17 V DC
Power Requirements	240 V AC 0.9 A max; 240 V DC 0.65 A max; 180 V DC 0.85 A max; 12 V DC 9.5 A max
Total Power Output	Up to 108 W in total from the adaptor
Dimensions (W x H x D)	21 x 15.75 x 13.25 in (531 x 400 x 336 mm)
Weight	Approx. 28 lb (12.7 kg)
Supplied Accessories	Front cover, camera hangers x2, camera cable bands x2, cable clamp belt with bracket and screws, up tally number plate, side panel camera number plates, operation manual CD-ROM
