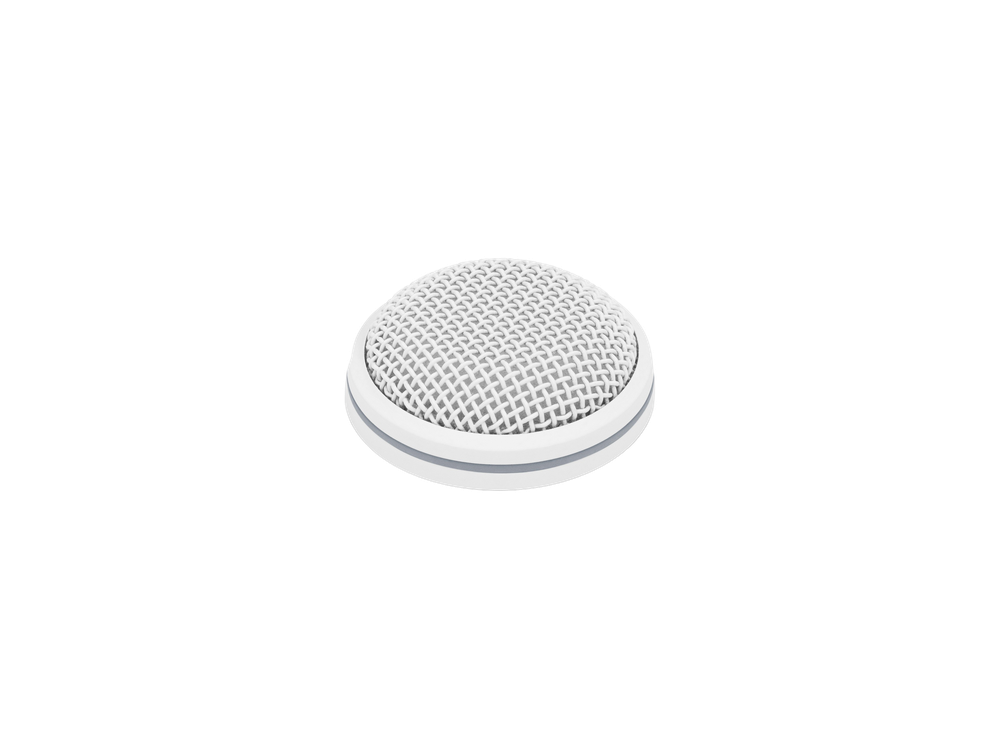

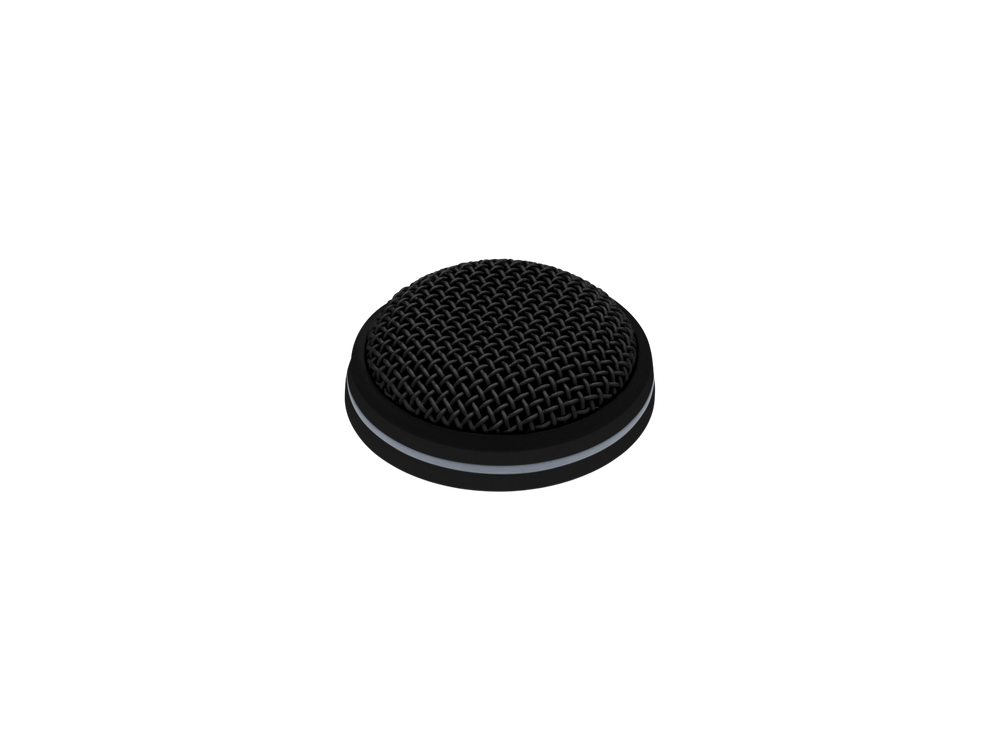

Sennheiser MEB 102 Boundary Layer Microphone

The MEB 102 is a boundary layer microphone built to disappear into a conference table or ceiling tile, standing just 0.47 inches proud of the surface once installed. Its omnidirectional pre-polarized condenser capsule picks up speech evenly from every seat around a table rather than favoring one direction.

It runs on standard 24-48 V phantom power and wires directly into a mixer or DSP input, with no batteries or wireless link to manage. Sennheiser sells it in black or white so it can be color-matched to the table or ceiling finish it is mounted into.

Polar PatternOmnidirectional
Transducer TypePre-polarized condenser
Frequency Response40 Hz - 20 kHz
Sensitivity16 mV/Pa
Output Impedance200 ohm
Max. SPL125 dB
Phantom PowerP24 - P48 V
Dimensions0.47 in above surface, 1.12 in diameter
ConnectorXLR-3 (XLR-5 on the -L variant, which adds a bi-color LED status ring and draws 6 mA instead of 3 mA)
