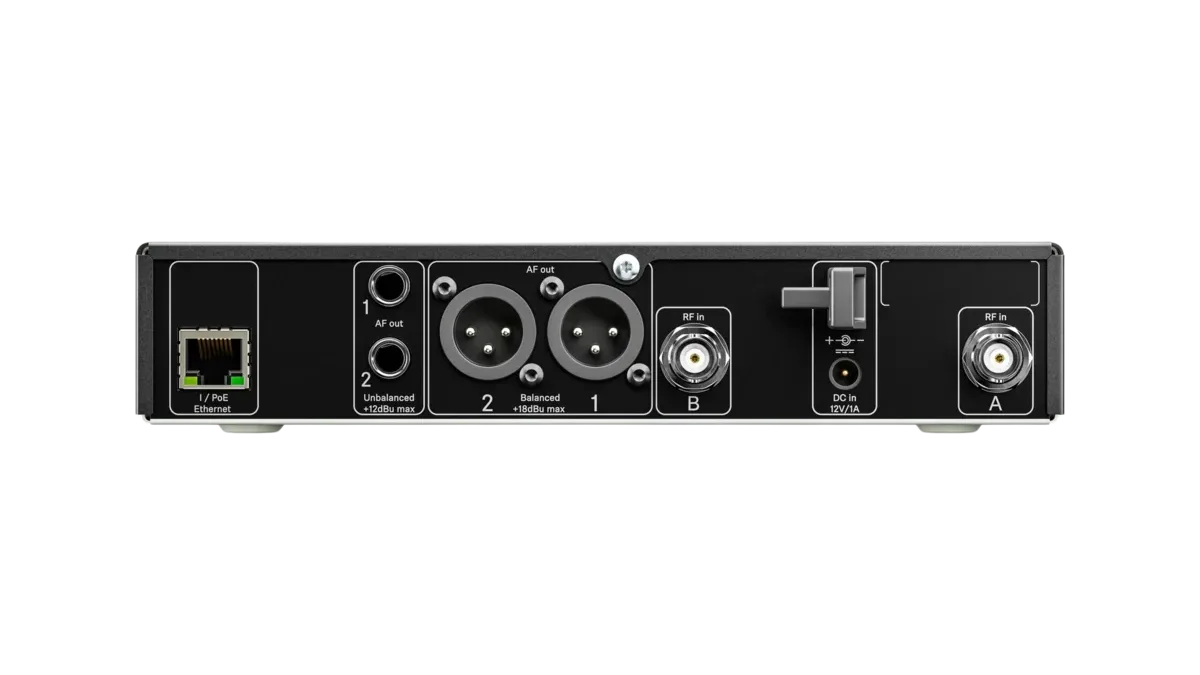

Sennheiser EW-DX EM 2 Digital Wireless Receiver
The EW-DX EM 2 is a two-channel, half-rack receiver for Sennheiser's EW-DX digital wireless line, built for productions that need a straight analog and AES3 output rather than a Dante network card. It runs both channels off automatic frequency management, scanning the spectrum to build a clean, equidistant frequency grid without manual coordination.
Sennheiser's SePAC codec keeps latency to about 1.9 ms and a wide dynamic range, so the receiver stays transparent whether it is running a lavalier on a soft-spoken presenter or a handheld on a loud vocalist. AES 256 encryption protects the RF link, and the receiver ships ready to pair with any EW-DX bodypack or handheld transmitter tuned to the same frequency range.
- Dimensions212 x 44 x 189 mm (8.35" x 1.73" x 7.44")
- Input voltage11 - 13 V DC or PoE IEEE 802.3af Class 0 (CAT5e or higher)
- Input current≤1A
- Audio output power18 dBu max.
- Headphone output2x 70 mW @ 32 Ω
| Audio Link Frequency Ranges (Q1-9) | 470.2 - 550 MHz |
|---|---|
| Audio Link Frequency Ranges (R1-9) | 520 - 607.8 MHz |
| Audio Link Frequency Ranges (V5-7) | 941.7 - 951.8 MHz & 953.05 - 956.05 MHz & 956.65 - 959.65 MHz |
| Bluetooth® Low Energy (BLE) Frequency Range | 2402 - 2480 MHz |
| Audio Frequency Response | 20 Hz - 20 kHz (-3 dB) |
| Audio THD | ≤ -60 dB for 1 kHz @ -3 dBfs input level |
| Dynamic Range | 134 dB |
| System Latency | 1.9 ms |
| Operating Temperature | -10 °C - +50 °C (14 °F - 122 °F) |
| Relative Humidity | 5 - 95 % (non-condensing) |
| Input Voltage | 11 - 13 V DC or IEEE 802.3af Class 0 (CAT5e or higher) |
| Input Current | ≤1A |
| Power Consumption | Max. 12 W |
| Transmit Power (radiated) | BLE: max. 10 mW EIRP |
| Audio Output Power | 18 dBu max. |
| Headphone Output | 2x 70 mW @ 32 Ω |
| Ethernet | RJ-45 socket, IEEE802.3; 100Base-TX (half+full duplex); 10Base-T (half+full duplex); (CAT5e or higher) |
| Dimensions | 212 x 44 x 189 mm (8.35" x 1.73" x 7.44") |
| Weight | Approx. 1000 g (2.2 lbs) (without antennas and power supply) |
| Source | Spec sheet (PDF) on sennheiser.com |

- GA 3 Rackmount set
- EW-D Power supply with country adapters
- 2 x Rod antennas
- 4 x Rubber feet
- Quick guide
