Sachtler System Ace XL AL GS MK II

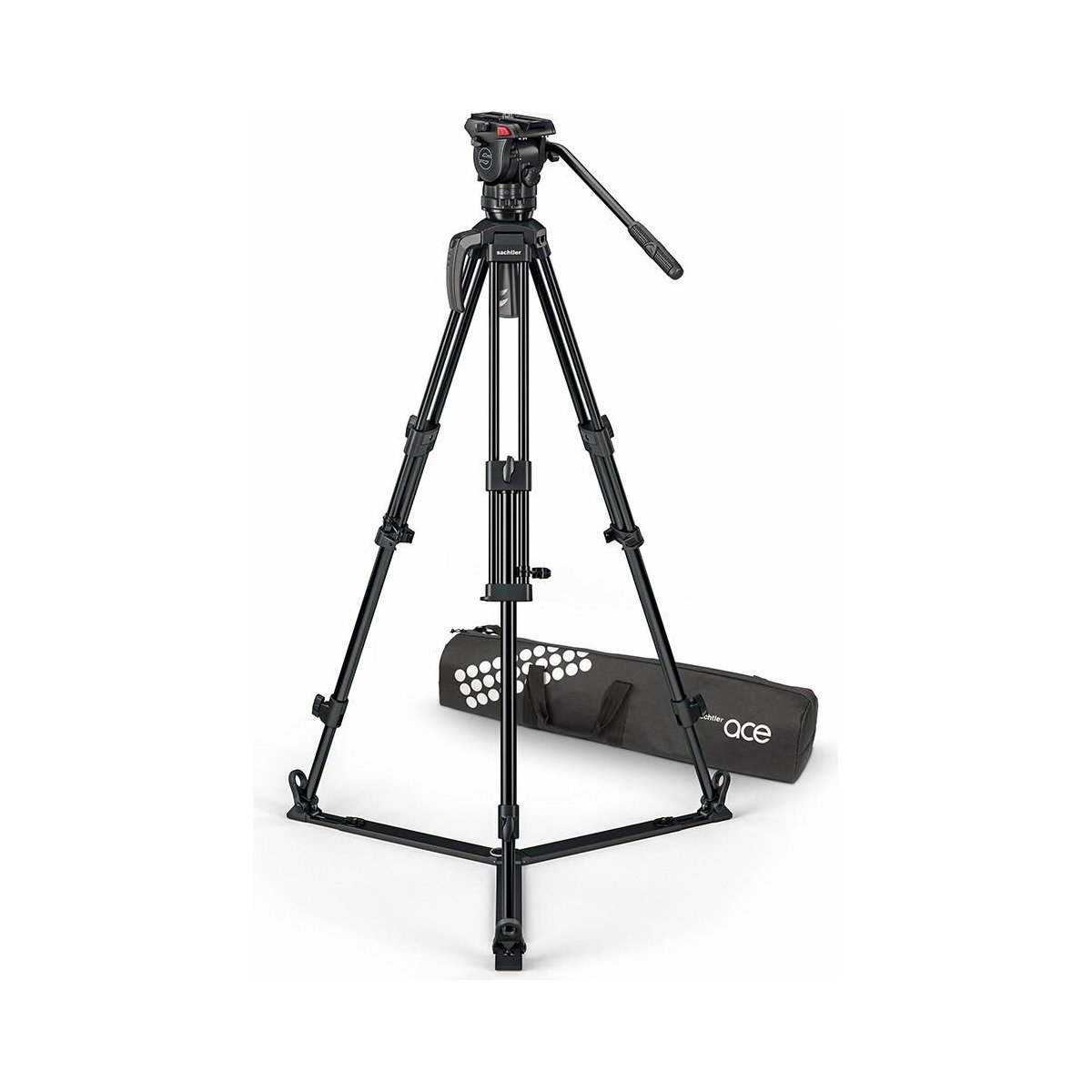

The 1019AM is Sachtler's Ace XL AL GS MK II package, built around the Ace XL fluid head on aluminium 2-stage legs with a ground spreader. It carries 0 kg to 8 kg (0 lb to 17.64 lb) on a 75 mm bowl with integrated flat base. Balance and damping are stepped rather than continuous: 9 + 0 and 3 + 0 drag settings on each axis, so a rig can be matched exactly and then repeated on the next shoot. Tilt runs 90° to -75°, and the camera sits on a slide in plate with 10.4 cm (4.09 in) of travel to find the balance point.
