Sachtler System Ace XL flowtech75 MS Mk II

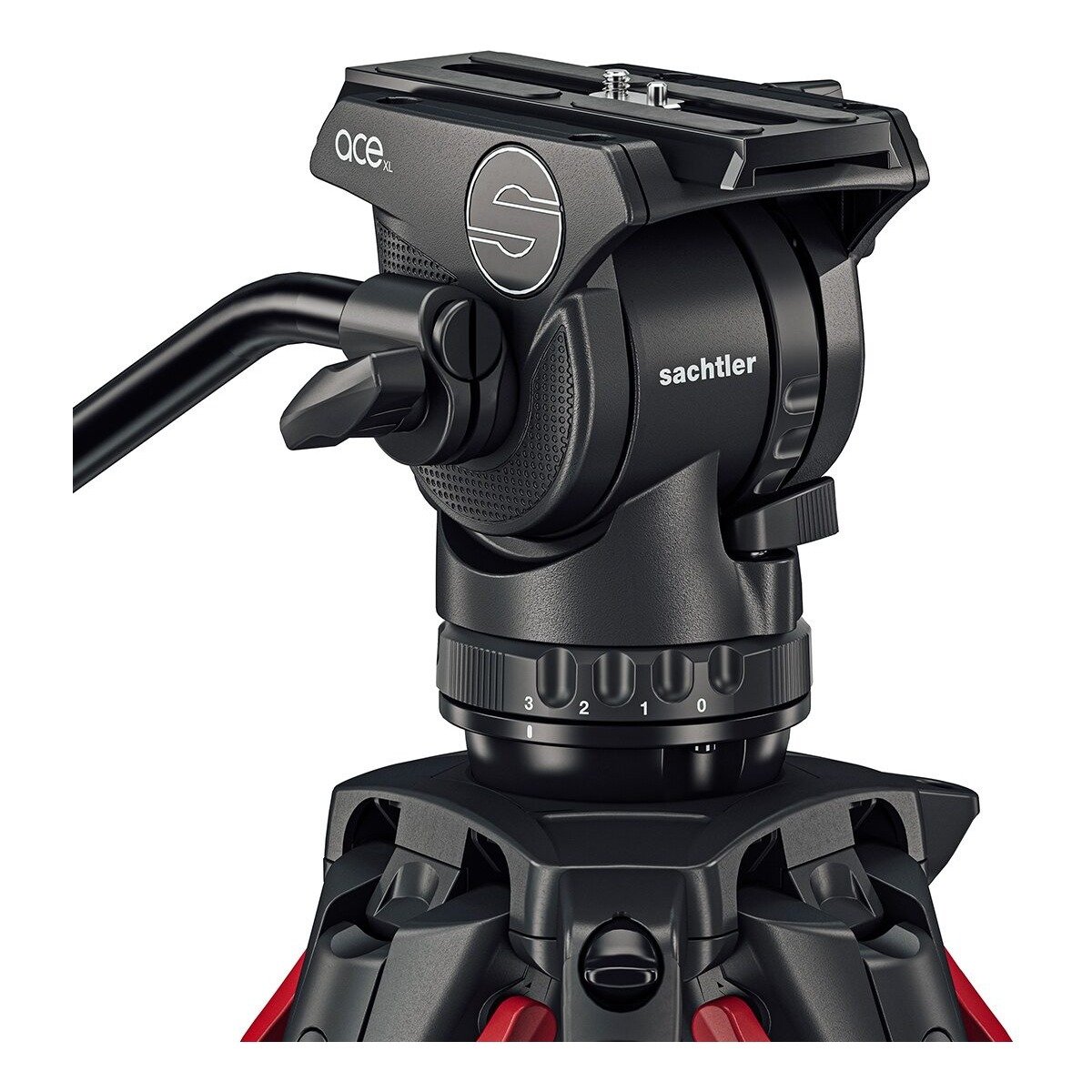

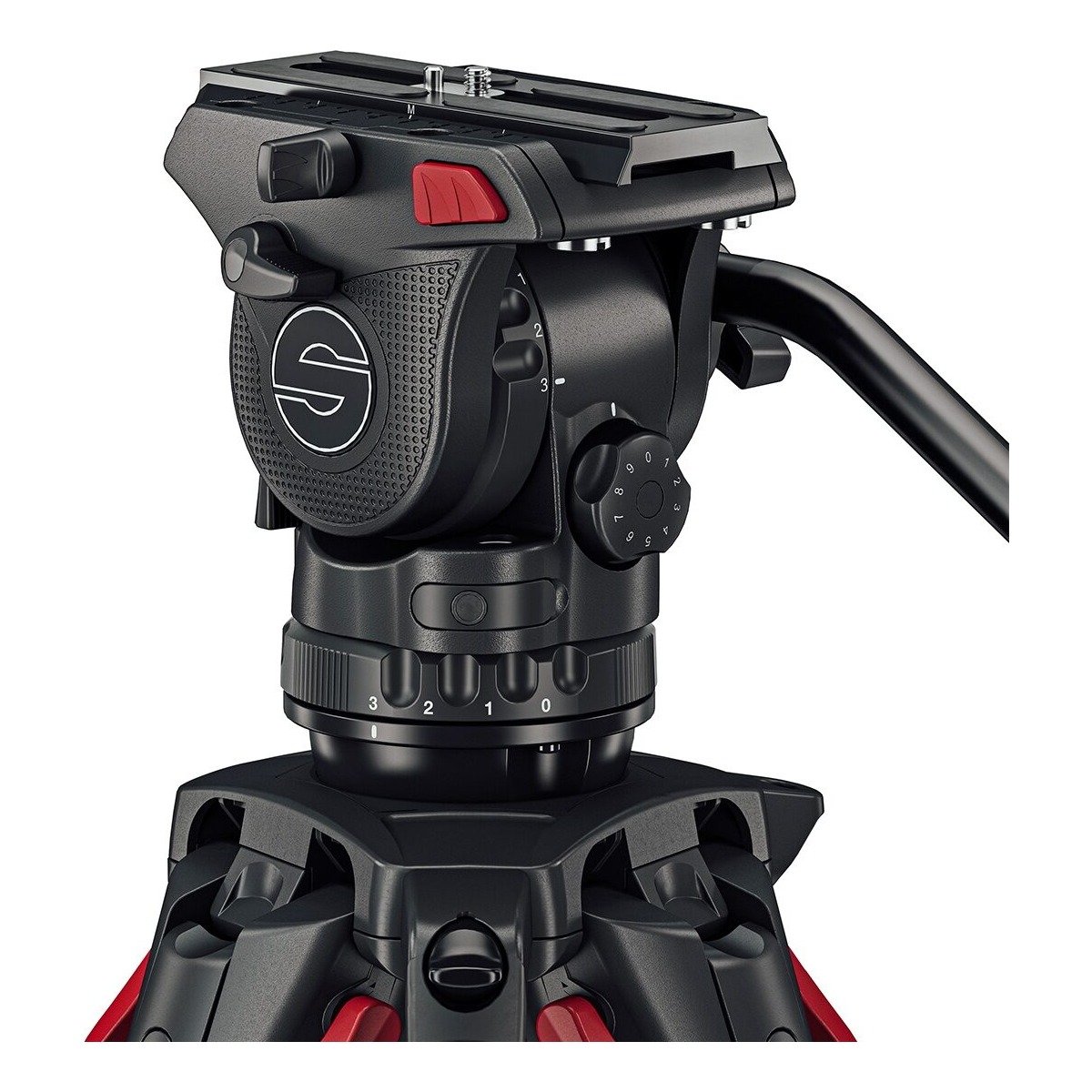

The 1016MS is Sachtler's Ace XL flowtech75 MS Mk II package, built around the Ace XL fluid head on carbon fibre 2-stage legs with a mid-level spreader. It carries 0 kg to 8 kg (0 lb to 17.64 lb) on a 75 mm bowl with integrated flat base. Balance and damping are stepped rather than continuous: 9 + 0 and 3 + 0 drag settings on each axis, so a rig can be matched exactly and then repeated on the next shoot. Tilt runs 90° to -75°, and the camera sits on a slide in plate with 10.4 cm (4.09 in) of travel to find the balance point.

Set up it works between 78 cm to 173 cm (30.71 in to 68.11 in), and folds to 85 cm (33.46 in) for transport. The complete system weighs 5.3 kg (11.68 lb). Levelling is by an illuminated level bubble. Sachtler rates the head from -30°C to 60°C (-22 °F to 140 °F), so the fluid does not thicken in the cold. In the box: S2170-0001 - Ace XL Mk II; 4585 - Tripod flowtech® 75 aktiv MS; S2051-1061 - Carry handle flowtech®; 9116 - Padded bag 75; S2082-1000 - Mid-level spreader flowtech®75.
