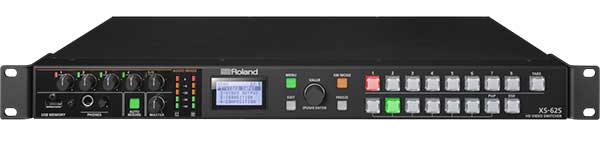

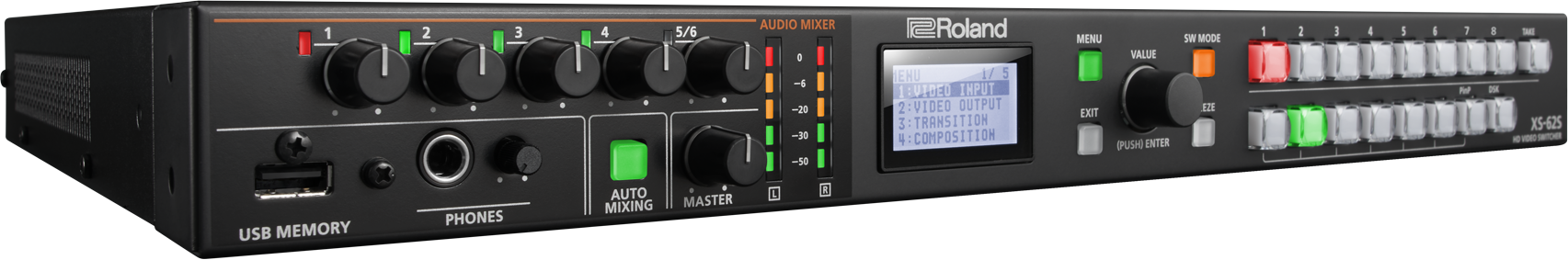

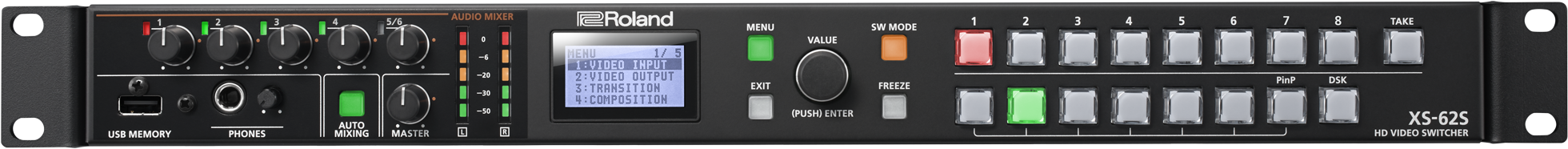

Roland XS-62S
|
$3250.00
FREE UPS SHIPPING
|
The XS-62S is a compact 1U rack mount, compact 6-channel video switcher with audio mixer and PTZ camera control capabilities for both permanent installs and on-site events. This powerful, integrated solution supports a wide range of applications including presentation and performance and special event venues, corporate AV conferences, classrooms for e-learning and more. The XS-62S is a great space saving unit that is easy to control from the front panel buttons and menu screen, or from a PC or Mac using realtime remote control software (RCS).
Content creation is a challenge for many companies looking to more efficiently produce product presentations, town hall meetings, and trainings. The XS-62S makes it easy to create content with an all-in-one switching and audio mixing system that streamlines the production process.
The XS-62S is easy to use from either the front panel controls or remote control software from a PC or Mac. Programmable presets allow one-touch recall of preset camera positions and angles, and the audio auto mixer takes care of audio mixing in the background, so the operator can focus on switching video. The XS-62S is the perfect size for installation into small spaces and portable enough to be used in multiple areas of a corporate office or other facility.
XS-62S is the ideal solution for hotel meeting rooms and banquet halls, houses of worship and live performance venues. The XS-62S Matrix Mode makes it easy to send different content to 2 to 3 screen destinations, from a single switcher all while mixing program audio and controlling PTZ remote cameras.
PGM / PST Mode works as a traditional switcher complete with cross-dissolve switching and Aux bus delegation for sending different video to a secondary destination such as a presenter's confidence monitor or additional presentation screens.
Performance venues will benefit greatly from the built-in auto mixing function. The auto-mixing function automatically balances incoming audio sources such as microphones from a discussion panel, making it easy for the operator. The XS-62S's audio processing also includes advanced effects such as EQ, dynamics and delay for mixing of vocal speech along with music and other audio embedded in video sources. These effects will provide improved sound quality for streaming applications, recording and sound reinforcement.
The XS-62S is also suitable for live streaming and web conferencing systems. In this type of application, you could be using multiple PTZ cameras and PCs. With the XS-62S this can easily be operated by a small team or even a single person. PTZ camera control eliminates the need for individual camera operators, since everything can be controlled from the XS-62S while video is being switched by the same operator. The XS-62S's audio capabilities make it easy to connect 4 microphones, mixing audio from computers and other video sources.
*In order to do Live streaming with the XS-62S, will need to add an encoder device with an SDI or HDMI input, from a 3rd. party supplier.
- 4 SDI Inputs (with de-interlacer)
- 2 HDMI Inputs (scaled)
- RGB/COMPONENT/COMPOSITE input (Scaled) - Shared with HDMI input 6
- 2 SDI Outputs ‒ Assignable to PGM, PVW, AUX
- 2 HDMI Outputs ‒ Assignable to PGM, PVW, AUX
- 1 HDMI Output (scaled / Multi-view) – Multi-view or Scalerd output
- TALLY/GPIO
- RS-232 ‒ Remote control
- RS-422 ‒ PTZ Control (VISCA)
- LAN ‒ Remote control and Smart Tally
Video
Video Processing
4:2:2 (Y/Pb/Pr), 8-bit

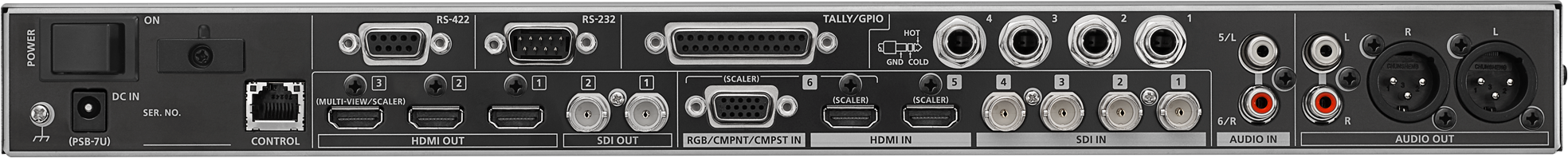

Input Connectors
SDI IN 1--4: BNC type x 4
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
HDMI IN 5--6: HDMI type A x 2
* HDCP Supported
* Multi-format Supported
RGB/COMPONENT/COMPOSITE IN 6: HD DB-15 type x 1
* Select either HDMI or RGB/COMPONENT or COMPOSITE for the INPUT 6 connector.
* Multi-format Supported
Output Connectors
SDI OUT 1--2: BNC type x 2
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
HDMI OUT 1--3: HDMI type A x 3
* HDCP Supported
Analog Input Level, Impedance
RGB: 0.7Vp-p, 75ohms (H, V:5VTTL)
COMPONENT: 1.0Vp-p, 75ohms(Bi-level sync/Tri-level sync)
COMPOSITE: 1.0Vp-p (Y), 0.286Vp-p (C: NTSC), 0.3Vp-p (C: PAL), 75ohms
Input formats
SDI IN 1--4: Conforms to SMPTE 296M, SMPTE 274M
720/59.94p, 720/50p(SYSTEM FORMAT = 720p)
1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p(SYSTEM FORMAT = 1080i or 1080p)
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
HDMI IN 5--6, RGB/COMPONENT/COMPOSITE IN 6: 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, VGA (640 x 480, 60 Hz), SVGA (800 x 600, 60 Hz), XGA (1024 x 768, 60 Hz), WXGA (1280 x 800, 60 Hz), SXGA (1280 x 1024, 60 Hz), FWXGA (1366 x 768, 60 Hz), SXGA+ (1400 x 1050, 60 Hz), UXGA (1600 x 1200, 60 Hz), WUXGA (1920 x 1200, 60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to VESA DMT Version 1.0 Revision 11.
* 1920 x 1200, 60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
Still Image
Bitmap File (.bmp)
* Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
* It can be stored up to 2 files in the internal memory.
Output formats
SDI OUT 1--2: Conforms to SMPTE 296M, 274M
HDMI OUT 1--2:
720/59.94p, 720/50p (System Format = 720p)
1080/59.94i, 1080/50i (System Format = 1080i)
1080/59.94p, 1080/50p (System Format = 1080p)
* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
HDMI OUT 3 (MULTI-VIEW): 1080/59.94p, 1080/50p HDMI OUT 3 (SCALER): 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94p, 1080/50p, SVGA (800 x 600, 60 Hz)(*1), XGA (1024 x 768, 60 Hz)(*1), WXGA (1280 x 800, 60 Hz)(*1), SXGA (1280 x 1024, 60 Hz)(*1), FWXGA (1366 x 768, 60 Hz)(*1), SXGA+ (1400 x 1050, 60 Hz)(*1), UXGA (1600 x 1200, 60 Hz), WUXGA (1920 x 1200, 60 Hz)
* Select either MULTI-VIEW or SCALER for the HDMI OUT 3 connector.
* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
* 1920 x 1200, 60 Hz: Reduced blanking
(*1) Output refresh rate is 75 Hz when frame rate is set to 50Hz.
Video Effects
Output Mode: PGM-PST, DISSOLVE, MATRIX
Transition: CUT, MIX (DISSOLVE/FAM/NAM)(*1), WIPE (30 types)(*1)
Composition: PinP (SQUARE, CIRCLE, HEART, DIAMOND)(*1), SPLIT (4 types)(*1), DSK (Luminance Key, Chroma Key)(*1)
Other: Flip horizontal, Still Image Capture, Still Image Playback, Test pattern output, Input Freeze
(*1) These effects depend on Output Mode
Audio
Audio ProcessingSampling rate: 24 bits/48 kHz
Audio formats
SDI IN: Linear PCM, 24 bits/48 kHz, 2 ch (Conforms to SMPTE 299M)
SDI OUT: Linear PCM, 24 bits/48 kHz, 8 ch (Conforms to SMPTE 299M)
HDMI IN, HDMI OUT: Linear PCM, 24 bits/48 kHz, 2 ch
Input Connectors
SDI IN 1--4: BNC type x 4
HDMI IN 5--6: HDMI Type A x 2
AUDIO IN 1--4: 1/4-inch TRS phone type
AUDIO IN 5--6: RCA phono type
Output Connectors
SDI OUT 1--2: BNC type x 2
HDMI OUT 1--3: HDMI type A x 3
AUDIO OUT: XLR type, RCA phono type
PHONES: Stereo 1/4-inch phone type
Input Level
AUDIO IN 1--4: -60--+4 dBu (Maximum input level: +22 dBu)
AUDIO IN 5--6: -10 dBu (Maximum input level: +8 dBu)
Input Impedance
AUDIO IN 1--4: 28 k ohms (HEAD AMP GAIN: 0--+23 dBu), 5 k ohms (HEAD AMP GAIN: +24--+64 dBu)
AUDIO IN 5--6: 15 k ohms
Output Level
AUDIO OUT: +4 dBu (XLR type, Maximum input level: +22 dBu), -10 dBu (RCA phono type, Maximum input level: +8 dBu)
PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance
AUDIO OUT: 600 ohms (XLR type), 1 k ohm (RCA phono type)
PHONES: 10 ohms
Audio Effects
Auto Mixing, EQ, Delay, Compressor, HPF, Gate, Reverb, Multi-Band Compressor, Limiter
Others
Other Connectors
USB MEMORY port (for USB flash drive): USB A type
TALLY/GPIO: DB-25 type (Female)
RS-232: DB-9 type (Male, for remote control)
RS-422: DB-9 type (Female, for VISCA control)
CONTROL: RJ45, 100BASE-TX (For remote control)
Other Functions
Preset Memory (8 types)
Panel Lock Function
EDID Emulator
Smart Tally
Remote Camera Control
Display
Graphic LCD 128 x 64 dots
Power Supply
AC Adaptor
Current Draw
2.6 A
Power Consumption
31.0 W
Operation Temperature
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions
481 (W) x 333 (D) x 44 (H) mm
18-15/16 (W) x 13-1/8 (D) x 1-3/4 (H) inches
Weight (excluding AC adaptor)
3.6 kg
7 lbs 15 oz
Accessories
Owner's manual
AC adaptor
Power cord
Rubber Foot x 4
* 0 dBu = 0.775 Vrms
