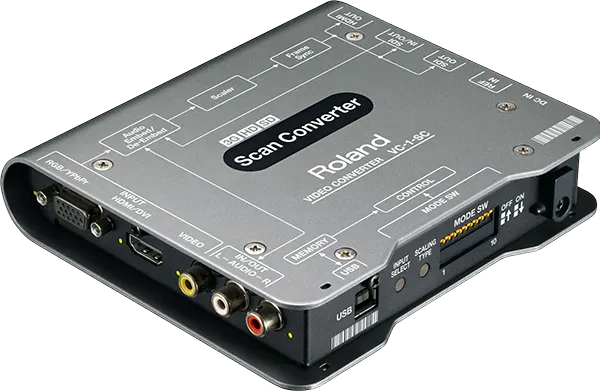

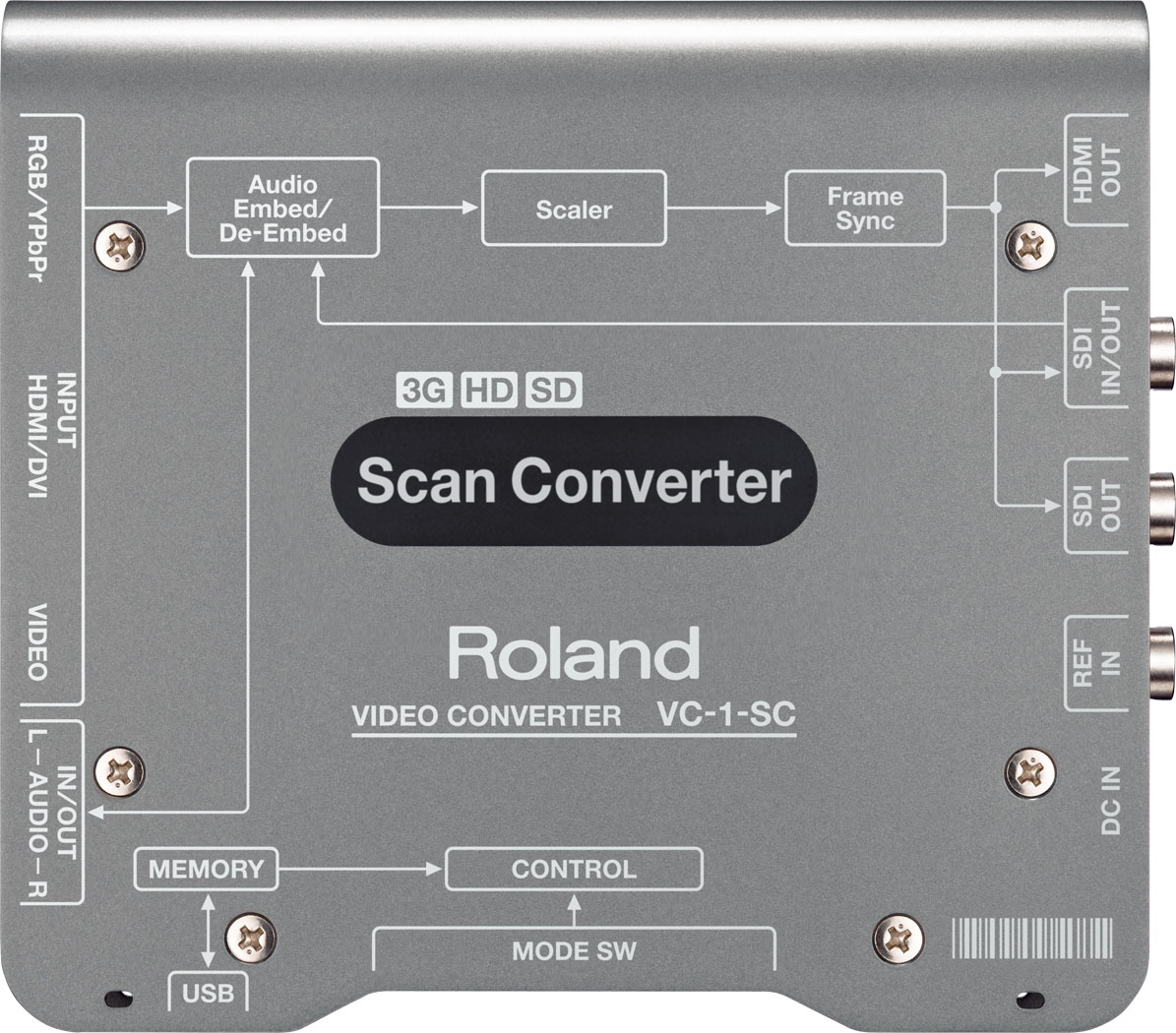

Roland VC-1-SC Up/Down/Cross Scan Converter to/from SDI/HDMI with Frame Sync

• 3G (Level A&B) /HD/ SD SDI
• HDMI In/Out
• RGB/Component In
• Composite In
• HDCP Support
• Built-in Frame Synchronizer and Scaler
• Audio Embedding or De-Embedding
• VC-1 RCS, PC/MAC Control Application
• Up/Down/Cross, Frame Rate, I/P, and Aspect Ratio Conversion

Input Connectors

SDI
Connector: BNC type x 1 (Combined use with SDI Out Connector)
Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C

HDMI
Connector: Type A (19 pins) x 1
Signal Standard: HDMI HDCP support (When an HDCP-applied signal is input, output from the SDI OUT connector is stopped)

RGB/Component
Connector: HD DB-15 type x 1
Signal Level: 1.0Vp-p (Y signal), 0.7Vp-p (R/G/B/Pb/Pr signals), 5VTTL (H/V signals)
Impedance: 75 ohms

Composite
Connector: BNC type x 1
Signal Level: 1.0 Vp-p (Y signal), 0.286 V-p (C signal (NTSC)), 0.3 V-p (C signal (PAL))
Impedance: 75 ohms

Analog Audio
Connector: RCA phono type x 1 pair (L/R) (Combined use with Analog Audio Out Connector)
Input Level: -6dBV
Maximum Input Level: +6dBV
Impedance: 22 k ohms

Reference
Connector: BNC type x 1
Impedance: 75 ohms
Signal Format: Black Burst, Bi-level, Tri-level

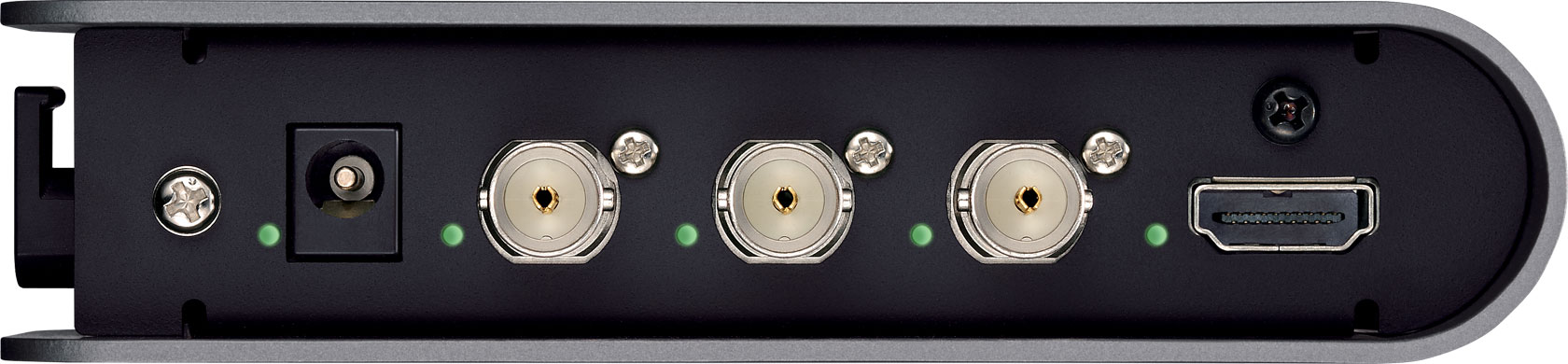

Output Connectors

SDI
Connector: BNC type x 2 (One is Combined with SDI In Connector)
Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C

HDMI
Connector: Type A (19 pins) x 1
Signal Standards: HDMI HDCP support

Audio
Connector: RCA phono type x 1 pair (L/R) (Combined use with Analog Audio In Connector)
Input Level: -6dBV
Maximum Output Level: +6dBV
Impedance: 2.2 k ohms

Formats

SDI
Connector: BNC type x 1 (Combined use with SDI Out Connector)
Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
Video Formats: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i
1920x1080/30PsF/29.97PsF/25PsF/24PsF/23.98PsF (Conforms to SMPTE 274M)
1280x720/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p (Conforms to SMPTE 296M)
720x480/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5)
Color Format: 10 bits YCC 4:2:2
Audio Format: Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
*When frame synchronizer is engaged, CH 3-8 of HDMI and CH 3-16 of SDI audio output are not available.


Video Formats: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i
1280x720/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p
720x480/59.94p/59.94i, 720x576/50p/50i (Conforms to CEA-861-E)
PC Formats: 640x480/60/72/75/85Hz, 800x600/56/60/72/75/85Hz, 1024x768/60/70/75/85Hz, 1280x768/60/75/85/Hz, 1360x768/60Hz, 1152x864/75Hz, 1400x900/60/75/85Hz, 1280x960/60/85Hz, 1280x1024/60/75/85Hz, 1400x1050/60/75Hz, 1680x1050/60Hz, 1600x1200/60Hz, 1920x1200/60Hz Reduced blanking (Conforms to VESA DMT Version 1.0 Revision 11)
Color Format: 10 bits YCC 4:2:2, 8 bits YCC 4:4:4, 8 bits RGB 4:4:4
Audio Format: Linear PCM, 24 bits, 48 kHz, 8 ch

RGB/Component
Video Formats: 1920x1080/60p/59.94p/50p/60i/59.94i/50i/24PsF/23.98PsF (Conforms to SMPTE 274M)
1280x720/60p/59.94p/50p (Conforms to SMPTE 296M)
720x480/59.94p/59.94i, 720x576/50p/50i
PC Formats: 640x480/60/72/75/85Hz, 800x600/56/60/72/75/85Hz, 1024x768/60/70/75/85Hz, 1280x720/60Hz, 1280x768/60/75/85/Hz, 1360x768/60Hz, 1152x864/75Hz, 1400x900/60/75/85Hz, 1280x960/60/85Hz, 1280x1024/60/75/85Hz, 1400x1050/60/75Hz, 1680x1050/60Hz, 1600x1200/60Hz, 1920x1080/60Hz, 1920x1200/60Hz Reduced blanking (Conforms to VESA DMT Version 1.0 Revision 11)

Composite
Video Formats: NTSC, PAL

Processing

Audio Embed/De-embed
2ch

Synchronizer
Frame sync is activated when a reference signal is detected. When frame synchronizer is engaged, CH 3-8 of HDMI and CH 3-16 of SDI audio output are not available.

Conversion
Selectable Full/LetterBox/Crop/Dot-by-Dot Type

Frame Rate Conversion
Frame Skip/Repeat Type

Others

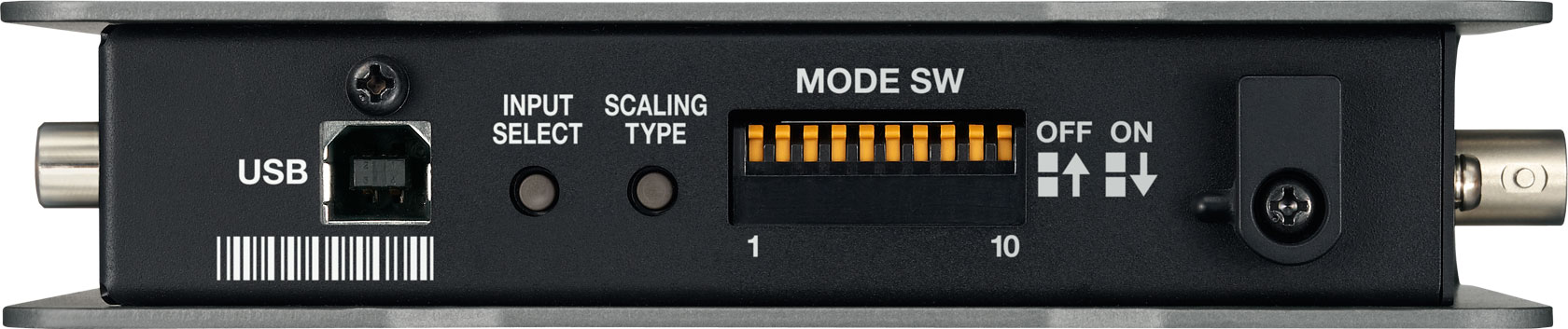

USB
USB Type B (Hi-Speed USB) x 1

Power Supply
DC 9 V (AC Adaptor)

Operation Temperature
+0--+40 degrees Celsius +41--+104 degrees Fahrenheit

Accessories
AC adaptor Power Cord Rubber Foot x 4 Owner's Manual

Size and Weight

Width
150 mm
5-15/16 inches

Depth
130 mm
5-1/8 inches

Height
30 mm
1-3/16 inches

Weight
500 g
1 lbs. 2 oz.
(0 dBu = 0.775 Vrms)
