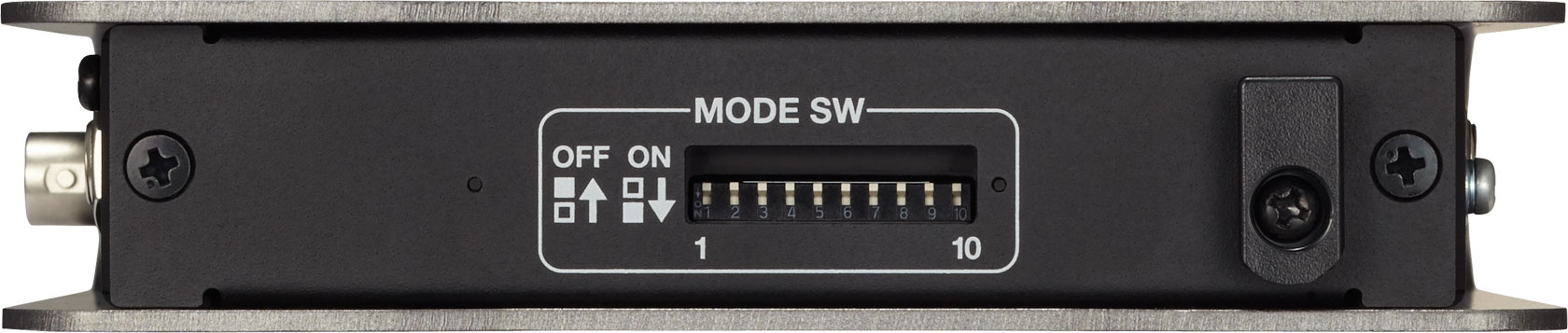

Roland VC-1-SH SDI to HDMI Video Converter

• SDI to HDMI Conversion
• Lossless Image Conversion
• 3G (Level A&B) /HD/ SD SDI
• HDCP Support
• VC-1 RCS, PC/MAC Control Application
• Selectable Channel for Embedded/De-Embedded Audio

Input

SDI Connector
BNC type x 1

Analog Audio Connector
1/4" TRS phone type ( balanced ) x 1 pair (L/R)

Digital Audio Connector
1/4" TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector )

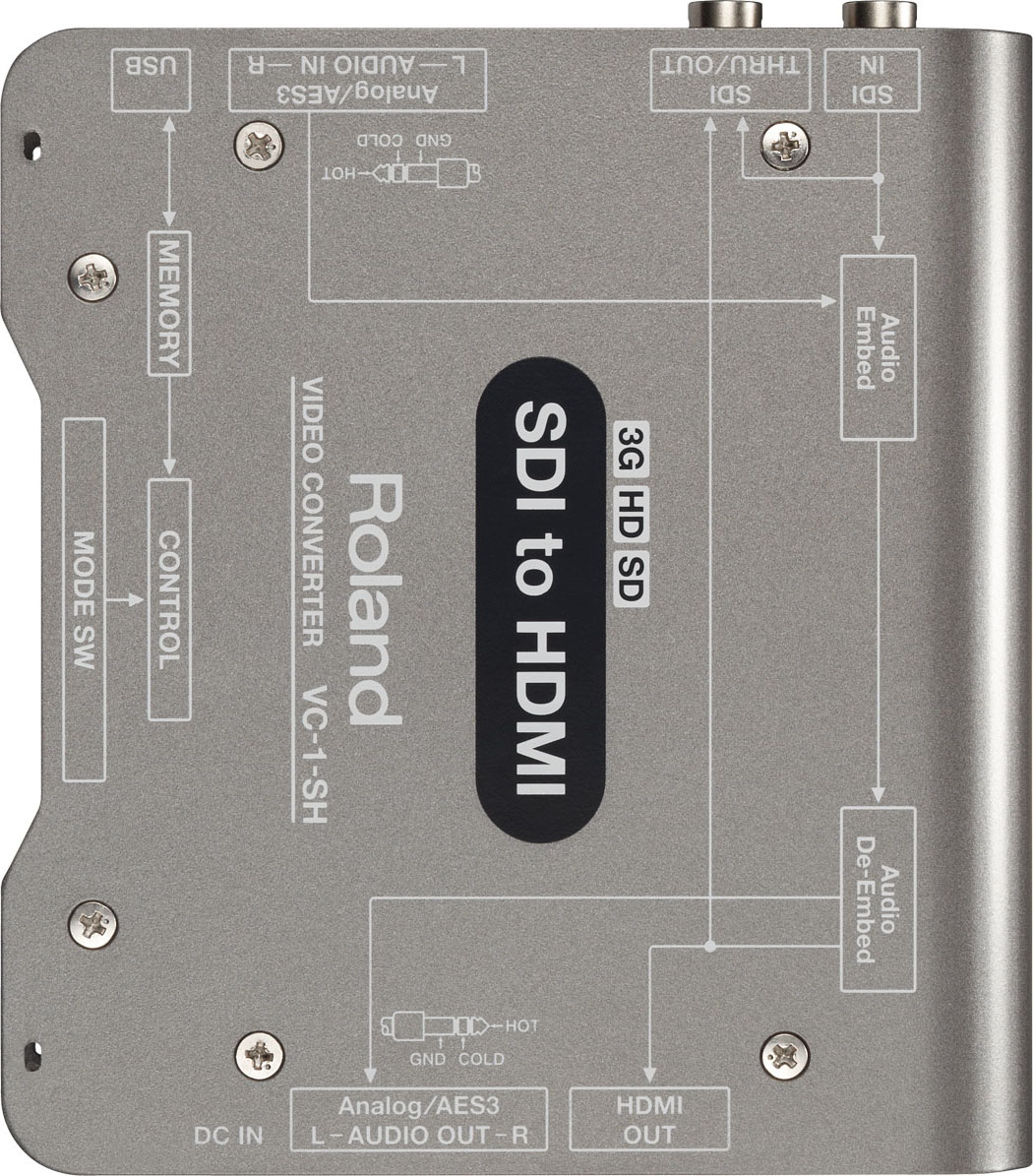

Processing

Audio embedding Audio de-embedding

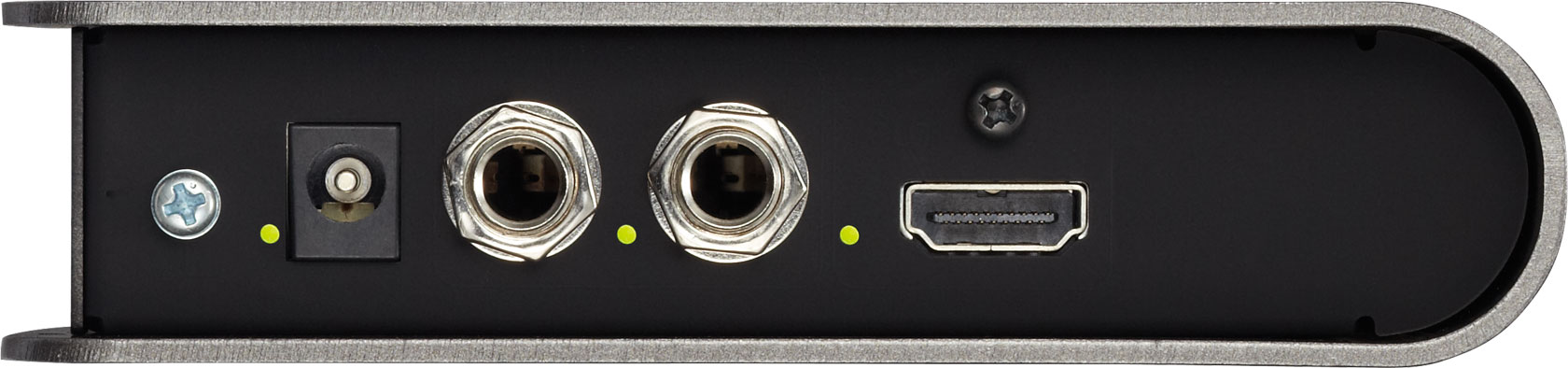

Output

SDI Connector
BNC type x 1 ( Thru/Out )

HDMI Connector
Type A (19 pins ) x 1

Analog Audio Connector
1/4" TRS phone type ( balanced) x 1 pair (L/R)

Digital Audio Connector
1/4" TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector )

Input / Output Format

SDI Input Signal Standards
SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C

SDI Input Video Format
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M ), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )

Audio Format
Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)

HDMI Input Video Format
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)

HDMI Input Audio Format
Linear PCM, 24 bit, 48 kHz, 8 ch

SDI Output Signal Standards
SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C

SDI Output Video Format
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )

SDI Output Audio Format
Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
HDMI Output Video Format
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)

HDMI Output Audio Format
Linear PCM, 24 bit, 48 kHz, 8 ch

Audio Input / Output

Analog Audio Input Level
+4dBu

Analog Audio Maximum Input Level
+24dBu

Analog Audio Input Impedance
110 ohms

Analog Audio Output Level
+4dBu

Analog Audio Output Impedance
600 ohms

Digital Audio Output Signal Format
AES3, 16/24 bits, 32/48 kHz, 2 ch

Digital Audio Output Impedance
110 ohms

Others

USB Connector
USB Type B (Hi-Speed USB) x 1

Power Supply
DC 9V

Power Consumption
8W

Operation Temperature
+0 to + 40 degrees Celsius

Accessories
AC adaptor, Power Cord, Rubber Foot x 4, Owner's Manual

Size and Weight

Width
150 mm
5-15/16 inches

Depth
130 mm
5-1/8 inches

Height
30 mm
1-3/16 inches

Weight
500 g
1 lbs. 2 oz.

(0dBu=0.775Vrms )
