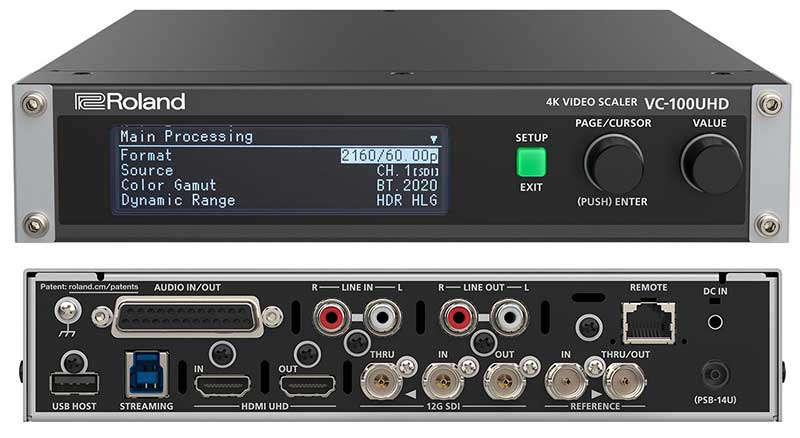

Roland VC-100UHD 4K Video Scaler

Features 12G-SDI and HDMI 2.0 I/O with Roland's Ultra Scaler video processing technology
Display processing for multiple audiences: 4K, HD, and web streaming
USB 3.0 webcam output for livestreaming broadcasts
Internal YCbCr 4:4:4 10-bit lossless processing

$3295.00

FREE UPS SHIPPING

Roland VC-100UHD
4K Video Scaler

Features 12G-SDI and HDMI 2.0 I/O with Roland's Ultra Scaler video processing technology
Display processing for multiple audiences: 4K, HD, and web streaming
USB 3.0 webcam output for livestreaming broadcasts
Internal YCbCr 4:4:4 10-bit lossless processing

$3295.00 FREE UPS SHIPPING

Description
Specifications

Scale, Convert, and Stream
Introducing the Roland VC-100UHD, a next-generation A/V signal management solution for live events, fixed installations, and livestreaming. Built on a reliable hardware platform for mission-critical applications, this powerhouse processor combines multiple single-task technologies in a compact and flexible half-rack design. With Roland’s Ultra Scaler on board, the VC-100UHD supports simultaneous scaling and conversion to multiple destinations, including 4K LED walls, HD displays, USB livestreams, and more.

Process Images for Multiple Audiences at Once
Using the VC-100UHD, it’s a simple task to send 4K and 1080p video to multiple destinations at one time, including pixel-hungry LED walls, tech operator displays and recorders, and USB webcam streams for online viewing. With an ultra-high-definition source signal connected to the 12G-SDI or HDMI 2.0 video inputs, the VC-100UHD will automatically process and convert it to different resolutions, ready for distribution at 12G-SDI, HDMI, and USB 3.0 rear-panel outputs.

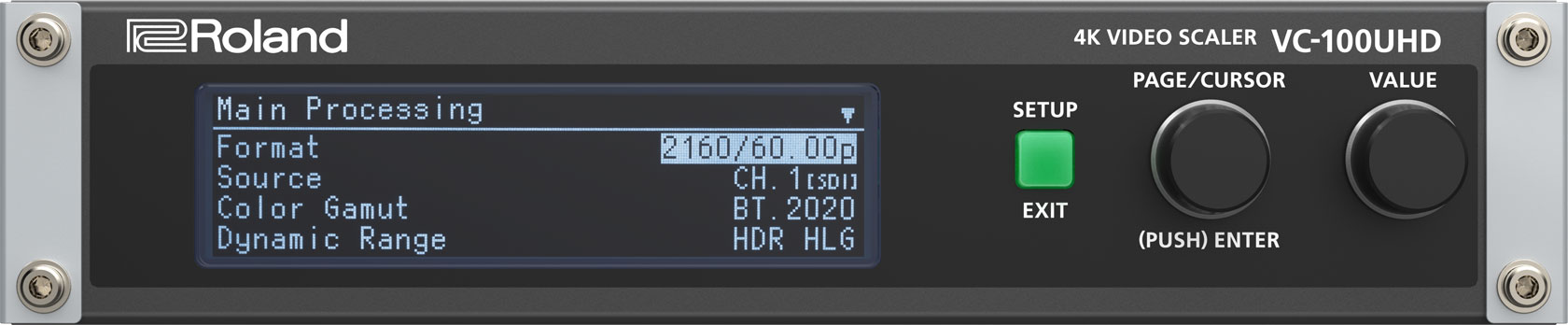

Front Panel Graphic LCD
With the VC-100UHD’s high-resolution graphic LCD and intuitive menu structure, all functions can be accessed locally without the need for an external control device. On the comprehensive status screens, you can quickly check the resolution, frame rate, HDCP status, color space, bit depth, color gamut, dynamic range, audio levels, and more. In addition, the system message log screen makes troubleshooting easy.

The Ultra-Reliable Ultra Scaler
The VC-100UHD features Roland's revolutionary Ultra Scaler, the same no-compromise, ultra-reliable professional video processor found in the flagship V-600UHD 4K video switcher. Backed by a lightning-fast processing engine, Ultra Scaler delivers premium quality conversion for perfectly synchronized big-screen IMAG and precise dot-by-dot scaling for LED wall displays.
Roland's Ultra Scaler supports:

10-bit 4:4:4 pixel-accurate color
Rec. 601, 709 and 2020 wide color gamut
High dynamic range processing and conversion
(HFR) video at 100, 119.88, 120, 200, 239.76, and 240 Hz (HDMI input only)
Native DCI Digital Cinema System 4K (4096) resolution

High Frame Rates? No Problem.
High frame rate (HFR) video sources can pose signal workflow challenges for integrated systems, but the VC-100UHD handles them with ease. Thanks to Ultra Scaler technology, system designers can simultaneously deliver 1080p video at rates up to 240 Hz for a gaming monitor, 59.94/50 Hz for an HD video system and LED displays, and 59.94/50 Hz for an HD livestream broadcast.

Onboard Visual Effects and Image Processing
Using the VC-100UHD’s built-in visual effects, it's simple to rotate, flip, and mirror images. For example, a portrait image generated by a smartphone can be trimmed and rotated to fit seamlessly on a 16:9 landscape display for digital signage. And with the VC-100UHD’s Frame Synchronizer and Genlock features, you can easily re-clock and stabilize video images as needed.

USB 3.0 Webcam Output For Streaming and Recording
Reach a worldwide audience and broadcast uncompressed 1080p video at 59.94/50 Hz on popular streaming platforms with the VC-100UHD. The USB 3.0 webcam output offers plug-and-play operation with the latest USB audio/video protocols, so there’s no software to download or drivers to maintain. And with Roland’s free VR Capture software, you can record your HD livestreams in ProRes 422 (Mac) or MP4 (Windows) formats for editing and distribution.

Video

Processing
4:4:4 (Y/Cb/Cr), 10 bit
Formats
SDI:
2160p(DCI)/60 Hz, 59.94 Hz, 50 Hz, 48 Hz *2, 47.95 Hz *2, 30 Hz, 29.97 Hz, 25 Hz, 24 Hz, 23.98 Hz (SMPTE ST2048)
2160p(UHD)/60 Hz, 59.94 Hz, 50 Hz, 30 Hz, 29.97 Hz, 25 Hz, 24 Hz, 23.98 Hz (SMPTE ST2036)
1080p(DCI)/60 Hz, 59.94 Hz, 50 Hz, 48 Hz *2, 47.95 Hz *2, 30 Hz, 29.97 Hz, 25 Hz, 24 Hz, 23.98 Hz (SMPTE ST2048)
1080p(FHD)/60 Hz, 59.94 Hz, 50 Hz, 30 Hz, 29.97 Hz, 25 Hz, 24 Hz, 23.98 Hz (SMPTE ST274)
1080i/59.94 Hz, 50 Hz (SMPTE ST274)
720p/60 Hz, 59.94 Hz, 50 Hz (SMPTE ST296)
HDMI: *1 *4
2160p(DCI)/60 Hz, 59.94 Hz, 50 Hz, 30 Hz, 29.97 Hz, 25 Hz, 24 Hz, 23.98 Hz (CEA-861-F)
2160p(UHD)/60 Hz, 59.94 Hz, 50 Hz, 30 Hz, 29.97 Hz, 25 Hz, 24 Hz, 23.98 Hz (CEA-861-F)
1080p(DCI)/60 Hz, 59.94 Hz, 50 Hz, 30 Hz, 29.97 Hz, 25 Hz, 24 Hz *3, 23.98 Hz *3
1080p(FHD)/60 Hz, 59.94 Hz, 50 Hz, 30 Hz, 29.97 Hz, 25 Hz, 24 Hz *3, 23.98 Hz *3 (CEA-861-F)
1080i/59.94 Hz, 50 Hz (CEA-861-F)
720p/60 Hz *3, 59.94 Hz *3, 50 Hz (CEA-861-F)
2560 x 1440/60 Hz (VESA CVT Reduced blanking)
2560 x 1440/144 Hz (Pixel Clock 595.5MHz) *2
1920 x 1200/60 Hz (VESA CVT Reduced blanking)
1920 x 1080/240 Hz (Pixel Clock 556.8MHz,567.0MHz) *2
1920 x 1080/144 Hz(Pixel Clock 346.54MHz) *2
1920 x 1080/120 Hz, 119.88Hz, 100Hz (CEA-861-F) *2
1920 x 1080/239.76 Hz, 200Hz(VESA CVT) *2
1600 x 1200/60 Hz (VESA DMT)
1400 x 1050/60 Hz (VESA DMT)
1280 x 1024/60 Hz (VESA DMT)
1280 x 800/60 Hz (VESA DMT)
*1 HDCP 1.4, 2.2 supported.
*2 Input and through output.
*3 Input only.
*4 Color Space: RGB Full/12bit, RGB Limited/12bit, YUV444/12bit, YUV422/12bit, YUV420/12bit (Valid bits are 10 bits)
* Color Gamut: Rec.601, Rec.709, Rec.2020
* Dynamic Range: SDR, HDR PQ (HDR10), HDR HLG
USB Streaming: *5 *6 *7
1080p, 720p, 640 x 480
*5 UVC (USB Video Class) Uncompressed Video 4:2:2 (Y/Cb/Cr), 8 bit
*6 The video signal frame rate can be selected Full or Half of System frame rate.
*7 Color Gamut: Rec.601, Rec.709, Dynamic Range: SDR
Functions
4K Scaler
FHD Down Scaler for USB Streaming
Fade to Black
Test Pattern Generator
Rotation *8
Flip H, V
Edge Enhancer
Motion Adaptive Deinterlacer
Color Correction
Dynamic Range Conversion
Frame Rate Conversion (up to 240Hz)
*8 The following functions cannot be used at the same time. Sub Processing, Rotation, HDMI Through.

Audio

Processing
24 bits/48 kHz
Formats
12G-SDI: Linear PCM, 24 bits/48 kHz, 16 ch (SMPTE 299M)
HDMI 4K: Linear PCM, 24 bits/48 kHz, 8 ch
STREAMING: Linear PCM, 16 bits/48 kHz, 2 ch (UAC (USB Audio Class))
Input Level
LINE IN: -10 dBu (Maximum: +8 dBu)
AUDIO IN: +4 dBu (Maximum: +24 dBu)
Input Impedance
LINE IN: 38 k ohms
AUDIO IN: 15 k ohms
Output Level
LINE OUT: -10 dBu (Maximum: +8 dBu)
AUDIO OUT: +4 dBu (Maximum: +24 dBu)
Output Impedance
LINE OUT: 1 k ohm
AUDIO OUT: 600 ohms
Functions
Output Level
Patchbay
Delay
Equalizer
Mastering
Test Tone Generator

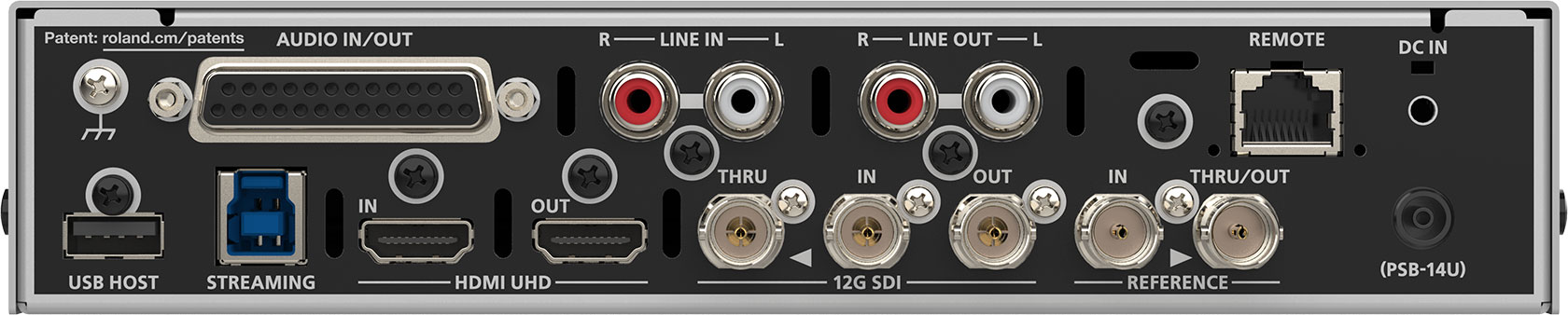

Connectors

Input Connectors
12G-SDI IN: BNC type (SMPTE 2082, 2081, 424M(SMPTE 425M-AB), 292M, 259M)
HDMI 4K IN: HDMI type A
STREAMING: USB type B (USB3.0)
LINE IN: RCA phono type
AUDIO IN: DB-25 female type (Balanced audio 2 ch)
REFERENCE IN: BNC type (Black Burst (Sync to frames), Bi-Level, Tri-Level)
Output Connectors
12G-SDI OUT: BNC type (SMPTE ST2082, ST2081, 424M(SMPTE 425M-AB), 292M, 259M)
12G-SDI THRU: BNC type
HDMI 4K OUT: HDMI type A
STREAMING: USB type B (USB3.0)
LINE OUT: RCA phono type
AUDIO OUT: DB-25 female type (Balanced audio 2 ch)
REFERENCE THRU/OUT: BNC type (Black Burst)
Other Connectors
USB HOST: USB A type (USB2.0) (for USB flash drive)
REMOTE: RJ45 type, 100BASE-TX

Others

Functions
EDID Emulator
Genlock
Preset Memory x 8
Display
Graphic LCD 256 x 64 dots
Power Supply
AC Adaptor
Current Draw
2.3 A (DC 24V)
Power Consumption
55 W
Operation Temperature
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions
210 (W) x 284.5 (D) x 43 (H) mm
8-5/16 (W) x 11-1/4 (D) x 1-3/4 (H) inches
Weight (excluding Accessories)
2.2 kg
4 lbs 14 oz
Accessories
Owner's Manual
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Power cord
Rubber feet (4 pcs.)
Rack mount angle set
DC Plug Stopper

* 0 dBu = 0.775 Vrms
