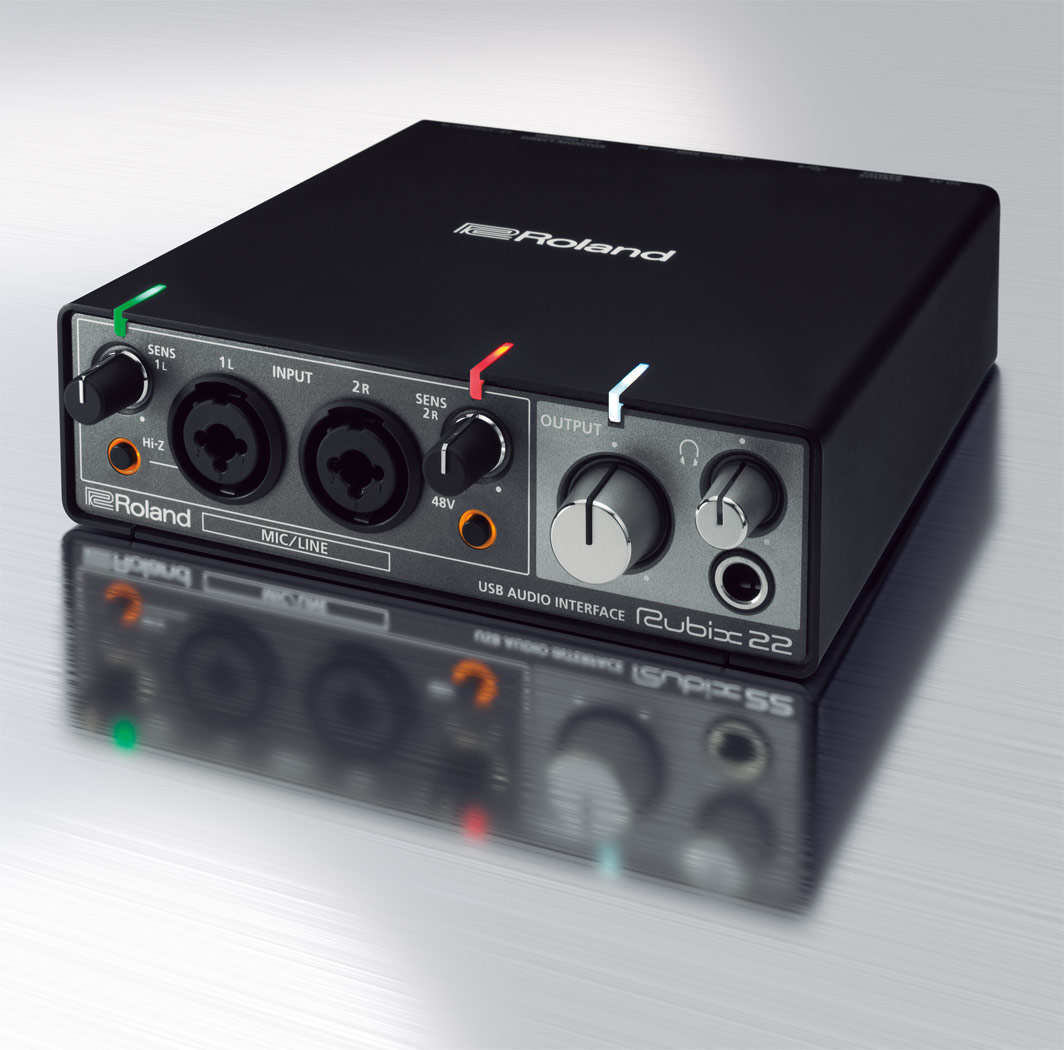

Roland Rubix22 USB Audio Interface

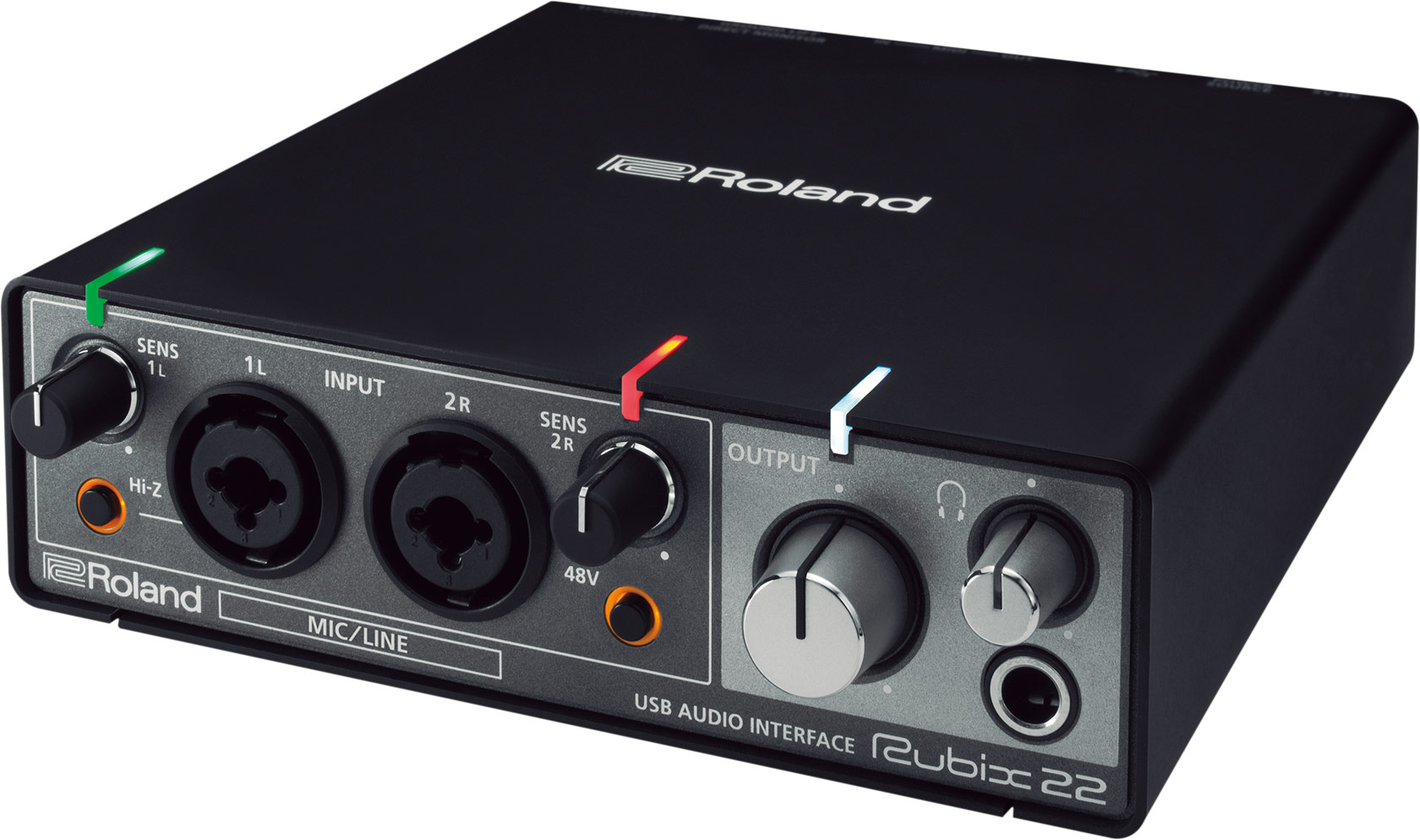

The Rubix22 is the 2-in / 2-out member of Roland's Rubix line, aimed at the singer-songwriter rig, the podcast desk, and the small project studio. Both inputs are XLR combo jacks fed by low-noise mic preamps with switchable +48 V phantom at 6 mA, and one of them takes a Hi-Z guitar or bass directly, so a vocal and an instrument track together without a DI box in front.
Conversion runs 24-bit at 44.1, 48, 96, or 192 kHz, so the interface is not the limiting factor when you move a session to a bigger room later. MIDI IN and OUT are on the back for a controller or a hardware synth. Headphone monitoring is a stereo 1/4-inch jack rated 20 mW + 20 mW into 47 ohms. The connection is Hi-Speed USB on a Type B port, and the unit draws its power from the computer. It measures 145 x 165 x 46 mm and weighs 1.0 kg.
- Dimensions / Weight145 x 165 x 46 mm, 1.0 kg
- ConnectionHi-Speed USB (Type B), bus powered
- Phantom Power+48 V, 6 mA max
- Weight1.0 kg 2 lbs 4 oz
- Configuration2-in / 2-out
| Configuration | 2-in / 2-out |
|---|---|
| Mic Preamps | 2 low-noise preamps on combo jacks |
| +48 V, 6 mA max | |
| Instrument Input | Hi-Z input for guitar and other high-impedance sources |
| Conversion | 24-bit AD/DA |
| Sample Rates | 44.1 / 48 / 96 / 192 kHz |

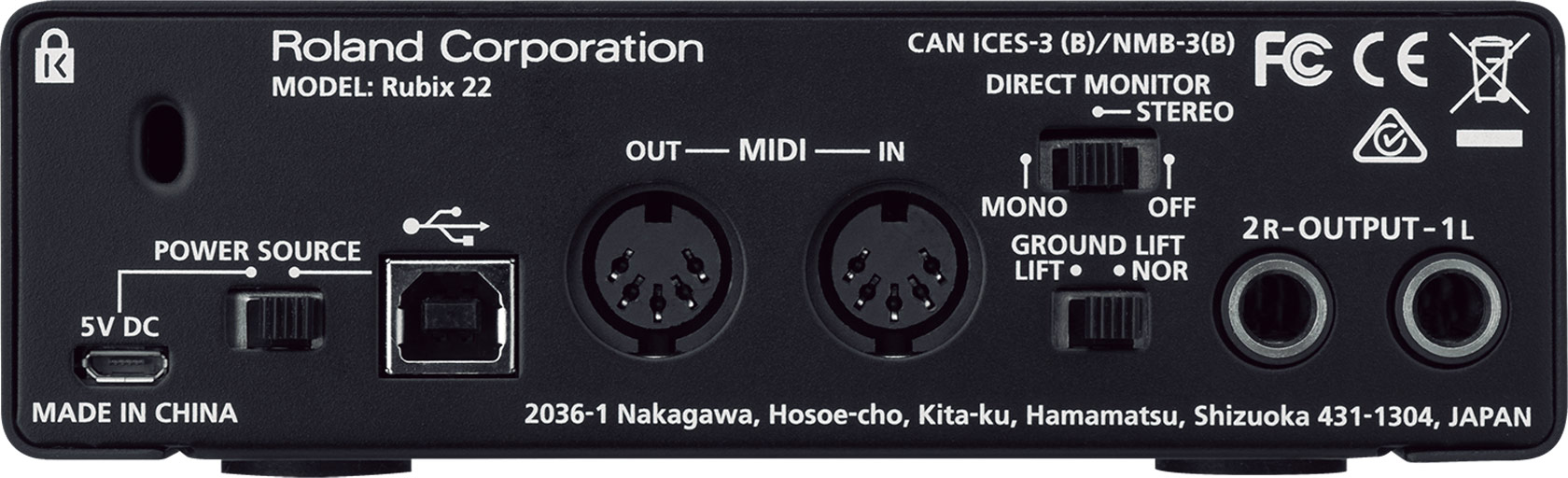

| MIDI | MIDI IN, MIDI OUT |
| Connection | Hi-Speed USB (Type B), bus powered |
| Headphones | Stereo 1/4-inch, 20 mW + 20 mW into 47 ohms |
| Dimensions / Weight | 145 x 165 x 46 mm, 1.0 kg |
| Impedance | OUTPUT (1L, 2R) jacks: 2 k ohms (balanced) PHONES jack: 47 ohms |
| Weight | 1.0 kg 2 lbs 4 oz |
