Roland BRIDGE CAST X Dual Bus Streaming Mixer and Video Capture

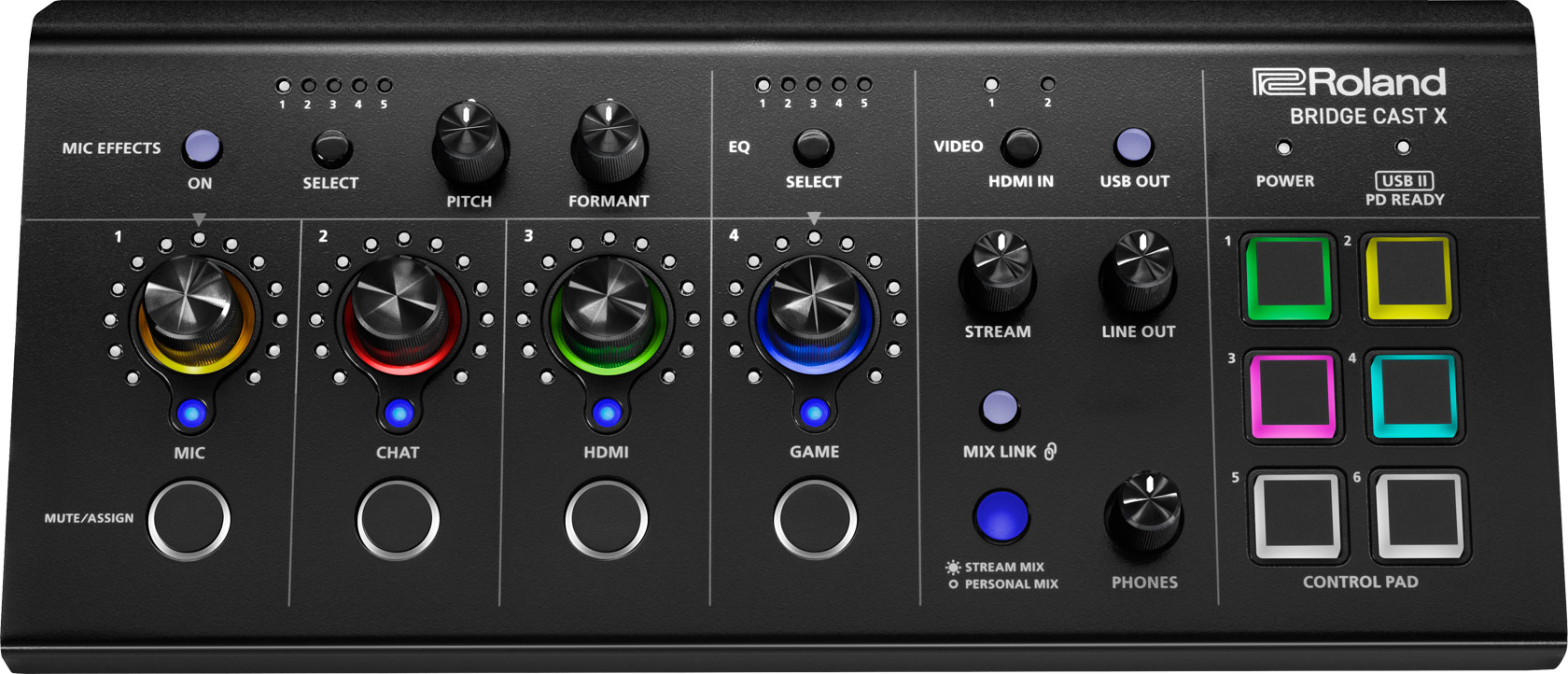

BRIDGE CAST X keeps the two-bus idea that makes the original work - STREAM MIX for the audience, PERSONAL MIX for your headphones - and adds video capture so a console, a camera, or a second PC arrives on the same device that handles the sound. That collapses a capture card and a mixer into one object on the desk, and one set of levels to ride during a session.

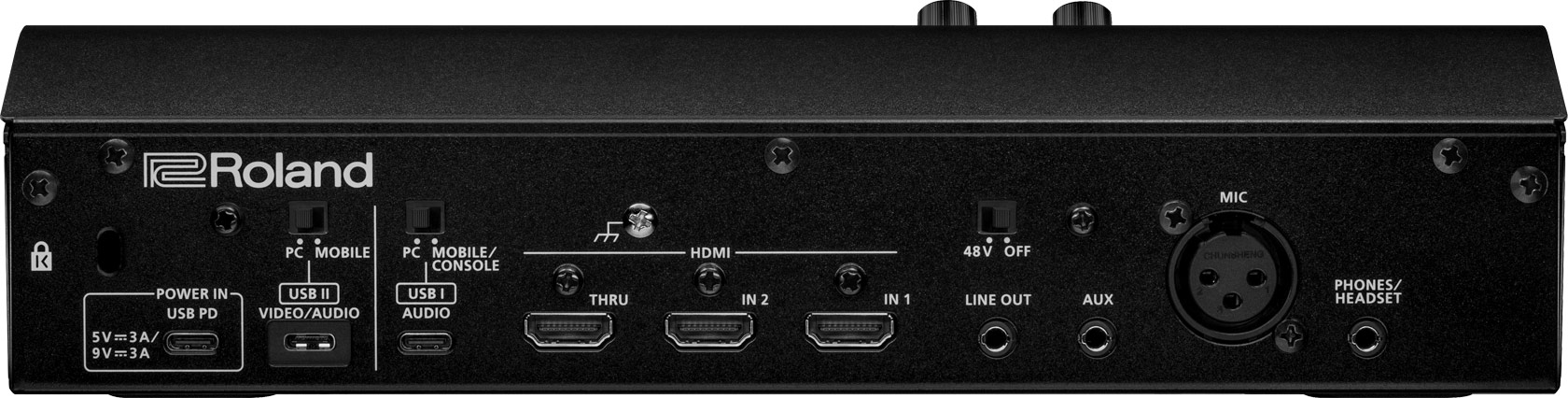

The XLR input supplies 48 V phantom at 6 mA for a condenser microphone. Conversion is 24-bit with 32-bit floating point processing internally, at 44.1, 48, or 96 kHz on Windows. The headset output runs at +1 dBu nominal with +13 dBu of headroom, and the line output at -4 dBu nominal, +8 dBu maximum. Two USB-C ports carry video, audio, MIDI, and HID between the mixer and the computer. The chassis is 269 x 130 x 70 mm and weighs 1.35 kg.
